MERAQuery¶

MLModule¶

genre	`MERA`
author	`Wolf Spindler`
package	`FMEstable/ReleaseMeVis`
dll	`MLMERA`
definition	MLMERA.def
see also	`MERAVolumeInspector`, `MERACrawler`
keywords	`query`, `search`, `index`, `find`, `volume`, `storage`

Purpose¶

MERAQuery performs a query on an index and a volume storage which have been created with MERACrawler. It allows searching for DICOM tags or values, as well as joined queries. Queries can be defined completely with the Query tab as well as manually in User Command.

Windows¶

Default Panel¶

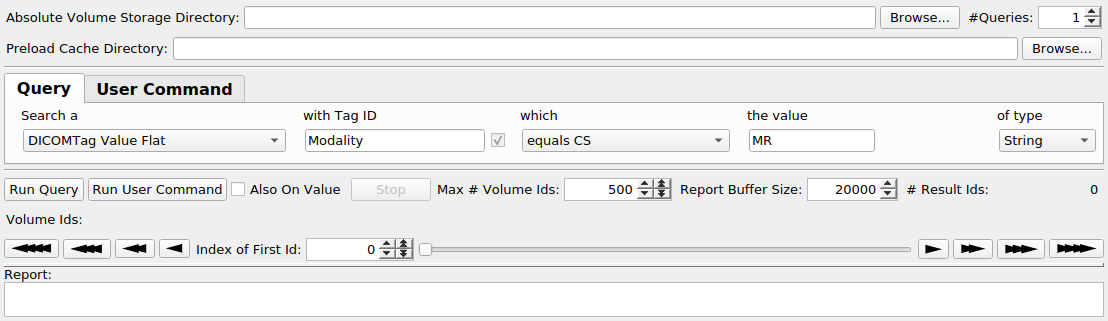

../../../Projects/MERA/Modules/mhelp/Images/Screenshots/MERAQuery._default.png

Parameter Fields¶

Field Index¶

`# Result Ids`: `Integer`	`editMode07`: `Enum`	`keyType09`: `Enum`
`#Queries`: `Integer`	`editMode08`: `Enum`	`Max # Volume Ids`: `Integer`
`Absolute Volume Storage Directory`: `String`	`editMode09`: `Enum`	`Preload Cache Directory`: `String`
`Also On Value`: `Bool`	`Index of First Id`: `Integer`	`Report`: `String`
`condition00`: `Enum`	`intValue00`: `Integer`	`Report Buffer Size`: `Integer`
`condition01`: `Enum`	`intValue01`: `Integer`	`Run Query (Ctrl R)`: `Trigger`
`condition02`: `Enum`	`intValue02`: `Integer`	`Run User Command (Ctrl U)`: `Trigger`
`condition03`: `Enum`	`intValue03`: `Integer`	`Stop`: `Trigger`
`condition04`: `Enum`	`intValue04`: `Integer`	`tagId00`: `String`
`condition05`: `Enum`	`intValue05`: `Integer`	`tagId01`: `String`
`condition06`: `Enum`	`intValue06`: `Integer`	`tagId02`: `String`
`condition07`: `Enum`	`intValue07`: `Integer`	`tagId03`: `String`
`condition08`: `Enum`	`intValue08`: `Integer`	`tagId04`: `String`
`condition09`: `Enum`	`intValue09`: `Integer`	`tagId05`: `String`
`dateValue00`: `String`	`intValue200`: `Integer`	`tagId06`: `String`
`dateValue01`: `String`	`intValue201`: `Integer`	`tagId07`: `String`
`dateValue02`: `String`	`intValue202`: `Integer`	`tagId08`: `String`
`dateValue03`: `String`	`intValue203`: `Integer`	`tagId09`: `String`
`dateValue04`: `String`	`intValue204`: `Integer`	`timeValue00`: `String`
`dateValue05`: `String`	`intValue205`: `Integer`	`timeValue01`: `String`
`dateValue06`: `String`	`intValue206`: `Integer`	`timeValue02`: `String`
`dateValue07`: `String`	`intValue207`: `Integer`	`timeValue03`: `String`
`dateValue08`: `String`	`intValue208`: `Integer`	`timeValue04`: `String`
`dateValue09`: `String`	`intValue209`: `Integer`	`timeValue05`: `String`
`dateValue200`: `String`	`isRunning`: `Bool`	`timeValue06`: `String`
`dateValue201`: `String`	`isTagIdValid00`: `Bool`	`timeValue07`: `String`
`dateValue202`: `String`	`isTagIdValid01`: `Bool`	`timeValue08`: `String`
`dateValue203`: `String`	`isTagIdValid02`: `Bool`	`timeValue09`: `String`
`dateValue204`: `String`	`isTagIdValid03`: `Bool`	`timeValue200`: `String`
`dateValue205`: `String`	`isTagIdValid04`: `Bool`	`timeValue201`: `String`
`dateValue206`: `String`	`isTagIdValid05`: `Bool`	`timeValue202`: `String`
`dateValue207`: `String`	`isTagIdValid06`: `Bool`	`timeValue203`: `String`
`dateValue208`: `String`	`isTagIdValid07`: `Bool`	`timeValue204`: `String`
`dateValue209`: `String`	`isTagIdValid08`: `Bool`	`timeValue205`: `String`
`disablePerformanceChecks`: `Bool`	`isTagIdValid09`: `Bool`	`timeValue206`: `String`
`doubleValue00`: `Double`	`joinCondition00`: `Enum`	`timeValue207`: `String`
`doubleValue01`: `Double`	`joinCondition01`: `Enum`	`timeValue208`: `String`
`doubleValue02`: `Double`	`joinCondition02`: `Enum`	`timeValue209`: `String`
`doubleValue03`: `Double`	`joinCondition03`: `Enum`	`User Command`: `String`
`doubleValue04`: `Double`	`joinCondition04`: `Enum`	`value00`: `String`
`doubleValue05`: `Double`	`joinCondition05`: `Enum`	`value01`: `String`
`doubleValue06`: `Double`	`joinCondition06`: `Enum`	`value02`: `String`
`doubleValue07`: `Double`	`joinCondition07`: `Enum`	`value03`: `String`
`doubleValue08`: `Double`	`joinCondition08`: `Enum`	`value04`: `String`
`doubleValue09`: `Double`	`joinMode00`: `Enum`	`value05`: `String`
`doubleValue200`: `Double`	`joinMode01`: `Enum`	`value06`: `String`
`doubleValue201`: `Double`	`joinMode02`: `Enum`	`value07`: `String`
`doubleValue202`: `Double`	`joinMode03`: `Enum`	`value08`: `String`
`doubleValue203`: `Double`	`joinMode04`: `Enum`	`value09`: `String`
`doubleValue204`: `Double`	`joinMode05`: `Enum`	`value200`: `String`
`doubleValue205`: `Double`	`joinMode06`: `Enum`	`value201`: `String`
`doubleValue206`: `Double`	`joinMode07`: `Enum`	`value202`: `String`
`doubleValue207`: `Double`	`joinMode08`: `Enum`	`value203`: `String`
`doubleValue208`: `Double`	`keyType00`: `Enum`	`value204`: `String`
`doubleValue209`: `Double`	`keyType01`: `Enum`	`value205`: `String`
`editMode00`: `Enum`	`keyType02`: `Enum`	`value206`: `String`
`editMode01`: `Enum`	`keyType03`: `Enum`	`value207`: `String`
`editMode02`: `Enum`	`keyType04`: `Enum`	`value208`: `String`
`editMode03`: `Enum`	`keyType05`: `Enum`	`value209`: `String`
`editMode04`: `Enum`	`keyType06`: `Enum`	`Volume Ids`: `String`
`editMode05`: `Enum`	`keyType07`: `Enum`
`editMode06`: `Enum`	`keyType08`: `Enum`

Visible Fields¶

Absolute Volume Storage Directory¶

name: absoluteVolumeStorageDirectory, type: String¶: The absolute directory path to the MERA volume storage.

#Queries¶

name: numberOfQueryRows, type: Integer, default: 1¶: The number of query rows to be shown. If more than one query row is enabled than also joinMode00 and joinCondition00 inputs are displayed to decide how the queries shall be composed.

Run Query (Ctrl R)¶

name: query, type: Trigger¶: Runs the query with the current settings and displays a report in Report.

User Command¶

name: userCommand, type: String¶

An input for a user defined SQLite command which can be run by notifying Run User Command (Ctrl U). Note that such commands may become incompatible in the case of changes of the data base backend of MERA. For details about SQLite see https://www.sqlitetutorial.net and https://www.sqlitetutorial.net/sqlite-commands.

For SQLite commands the structures and the names of data bases, tables, and columns need to be known:

Each search term, as defined under Search a, corresponds to its own data base and has an associated value.
The number of keys which can be used in a command is identical to the number of selected query rows in #Queries.
The data bases are automatically opened and attached before, and closed after running the user command. They are those ones selected by keyType00 etc. under Search a. If DICOM tags are selected then the with Tag ID tagId00 etc. describe the specific tag data base.
The SQLite names of the data bases are main, DB2, …, DB9 corresponding to the ten query rows.
Each data base contains only one single table with the name KeyValuesPair containing the columns VolumeId and Value.

For own commands a good way to start is to copy the SELECT command output from Report after Run Query (Ctrl R) into User Command and press Run User Command (Ctrl U).

An example query: search ids of volumes with Modality NM whose PatientName tags contain Anonym.

Use two #Queries.
In the Query tab configure one row with DICOMTag Value Flat with tag id Modality and the second one with tag id PatientName.

The data base names will be main and DB2, each one contains a single table named KeyValuesPair. Each table has the two columns VolumeId and Value. In the table in main, the Value column contains the content of the modality tags such as CT, NM, etc. In the table in DB2, the Value column contains the content of PatientName tags such as LastName^First, Musterman^Manfred, etc. In both cases the VolumeId columns contain the ids of the volumes which contain these tags and which can be used in the MERAVolumeInspector to inspect these volumes.

Then the query could look like

SELECT main.KeyValuesPair.VolumeId FROM main.KeyValuesPair WHERE main.KeyValuesPair.Value = 'NM'
INTERSECT
SELECT DB2.KeyValuesPair.VolumeId FROM DB2.KeyValuesPair WHERE DB2.KeyValuesPair.Value GLOB '*Anonym*'

If names are not ambiguous their names can be shortened:

SELECT VolumeId FROM main.KeyValuesPair WHERE Value = 'NM'
INTERSECT
SELECT VolumeId FROM DB2.KeyValuesPair WHERE Value GLOB '*Anonym*'

Pressing Run User Command (Ctrl U) loads the data bases, runs the command, logs the found volume ids in Report and sets Volume Ids according to the settings in Index of First Id and Max # Volume Ids.

Another more complex example: Search all Ids of volumes from the same study in which there is at least one NM and one PT volume. For this purpose use two #Queries and configure the first query row with DICOMTag Value Flat with tag id Modality and the second one with tag id StudyInstanceUID. Note that such queries can take longer on larger data bases since multiple INNER JOIN commands are executed:

SELECT Mod1.VolumeId, Mod2.VolumeId, N1.VolumeId, N1.Value, N2.Value
FROM main.KeyValuesPair AS Mod1
INNER JOIN main.KeyValuesPair AS Mod2 ON (Mod1.Value = 'NM') AND (Mod2.Value = 'PT')
INNER JOIN DB2.KeyValuesPair AS N1 ON (Mod1.VolumeId = N1.VolumeId)
INNER JOIN DB2.KeyValuesPair AS N2 ON (Mod2.VolumeId = N2.VolumeId) AND (N1.value = N2.Value) AND (Mod2.VolumeId=N2.VolumeId)
GROUP BY N1.value

Run User Command (Ctrl U)¶

name: runUserCommand, type: Trigger¶: Run the user command defined in User Command.

Also On Value¶

name: selectAlsoOnValue, type: Bool, default: FALSE¶: If multiple query rows are used and join mode is neither LEFT nor INNER, then SELECT runs only on the VolumeId but not on the value; if this checkbox is enabled then SELECT runs on VolumeId, Value. Note that this may lead to different results since join commands such as INTERSECT then also include the value in their calculation.

Stop¶

name: stop, type: Trigger¶: Longer queries can be interrupted by pressing this button.

Volume Ids¶

name: volumeIds, type: String, persistent: no¶: Lists the ids of all volumes found in the most recent query in a format that it can be connected to a MERAVolumeInspector.volumeIndexList of MERAVolumeInspector.

Index of First Id¶

name: queryResultsStart, type: Integer, default: 0, maximum: :field:`numUniqueQueryResults`¶: The index of the first found Volume Id to be shown in Volume Ids.

Max # Volume Ids¶

name: maxNumQueryResults, type: Integer, default: 500¶: The maximum number of queries to be passed to the Volume Ids output; note that large values may degrade performance.

# Result Ids¶

name: numUniqueQueryResults, type: Integer, persistent: no¶: A read-only field displaying the number of found volume ids.

Report Buffer Size¶

name: maxReportSize, type: Integer, default: 20000¶: The maximum size of characters in Report; note that large values may degrade performance.

Report¶

name: report, type: String, persistent: no¶: Displays information about the most recently run Run Query (Ctrl R).

Preload Cache Directory¶

name: preloadCacheDirectory, type: String¶: If large and optimally fast local disk space is available then setting up a cache directory on it is recommended. This can speed up query launch time tremendously especially for slower network connections to the data MERA volume storage. If left empty then no caching is performed.

Hidden Fields¶

keyType00¶

name: keyType00, type: Enum, default: DICOMTagValue_Flat¶

Selects which type of key the query shall be performed:

DICOMTagValue_Flat: The query and its conditions operate on values of DICOM tags with id tagId00 where only top-level tags from DICOM trees are queried.
DICOMTagValue: The query and its conditions operate on values of DICOM tags with id tagId00 where all tags from DICOM tress are queried (may be significantly slower in a few cases).
XImageExtent: The x-extent if the volume is a valid image, empty otherwise.
YImageExtent: The y-extent if the volume is a valid image, empty otherwise.
ZImageExtent: The z-extent if the volume is a valid image, empty otherwise.
CImageExtent: The c-extent if the volume is a valid image, empty otherwise.
TImageExtent: The t-extent if the volume is a valid image, empty otherwise.
UImageExtent: The u-extent if the volume is a valid image, empty otherwise.
XPageExtent: The x-page-extent if the volume is a valid image, empty otherwise.
YPageExtent: The y-extent of pages if the volume is a valid image, empty otherwise.
ZPageExtent: The z-extent of pages if the volume is a valid image, empty otherwise.
CPageExtent: The c-extent of pages if the volume is a valid image, empty otherwise.
TPageExtent: The t-extent of pages if the volume is a valid image, empty otherwise.
UPageExtent: The u-extent of pages if the volume is a valid image, empty otherwise.
NumberOfVoxelsInImage:Number of voxels of the image if the volume is a valid image, empty otherwise.
NumberOfVoxelsPerPage: Number of voxels per image page if the volume is a valid image, empty otherwise.
NumberOfBytesInImage: Number of bytes the entire image would allocate in memory if the volume is a valid image, empty otherwise.
NumberOfBytesPerPage: Number of bytes an image page would allocate in memory if the volume is a valid image, empty otherwise.
MinimumVoxelValue: Maximum voxel value of the image if the volume is a valid image, empty otherwise.
MaximumVoxelValue: Maximum voxel value of the image if the volume is a valid image, empty otherwise.
CDimensionInfos: Space separated list of color-dimension information of the image if the volume is a valid image, empty otherwise.
TDimensionInfos: Space separated list of time-dimension information of the image if the volume is a valid image, empty otherwise.
UDimensionInfos: Space separated list of u-dimension information of the image if the volume is a valid image, empty otherwise.
FirstDateAsLinearSecond: First time dimension information value as Linear Second with each day=86400 seconds if the volume is a valid image, empty otherwise.
HasScalarVoxelType: [YES or NO] if the image has scalar voxels and if the volume is a valid image, empty otherwise.
SizeOfVoxelInBytes: Size of a voxel in bytes if the volume is a valid image, empty otherwise.
FileFormat: A coding for the file format if unique.
VoxelSizeX: Extent of a voxel in mm in x-dimension if the volume is a valid image, empty otherwise.
VoxelSizeY: Extent of a voxel in mm in y-dimension if the volume is a valid image, empty otherwise.
VoxelSizeZ: Extent of a voxel in mm in z-dimension if the volume is a valid image, empty otherwise.
VoxelVolume: Volume of a voxel in mm^3 if the volume is a valid image, empty otherwise.
HasFloatingPointVoxelType: [YES or NO] if the image has floating point voxels and if the volume is a valid image, empty otherwise.
IsDecomposedEnhancedMF: [YES or NO] if the DICOM file was decomposed from an enhanced Multi-frame file or not.
HasValidImage: [YES or NO] if the volume has a valid image or not.
IsClassicMultiFrame: [YES or NO] if the volume is a classic multi-frame file or not.
HasMeVisSMFSequence: [YES or NO] if the volume contains a MeVis Structured Multi-Frame sequence or not.
NumEntriesInCDimensionInfos: Number of entries in CDimensionInfos if the volume is a valid image, empty otherwise.
NumEntriesInTDimensionInfos: Number of entries in TDimensionInfos if the volume is a valid image, empty otherwise.
NumEntriesInUDimensionInfos: Number of entries in UDimensionInfos if the volume is a valid image, empty otherwise.
DataTypeOfVoxels: Data type of voxels as string if the volume is a valid image, empty otherwise.
HumanReadableImageOrientation: Approximated human readable image orientation if the volume is a valid image, empty otherwise.
LicenseInformation: LicenseInformation from config file if available, otherwise not set.
Keywords: Keywords from config file if available, otherwise not set.
Readme: Readme information from config file if available, otherwise not set.
FirstFilename: First file name associated to the volume data.
HasIssues: [YES, NO] if the volume has issues or not.

tagId00¶

name: tagId00, type: String, default: Modality¶: The id of a DICOM tag to be queried needed if field searched key is DICOMTagValue or DICOMTagValue_Flat, otherwise insensitive. The id must have either have the format (JKLM,OPQR) where the JKLMOPQR are hexadecimal digits, or the case sensitive name of a DICOM tag such as Modality or PatientName. A correct input value is indicated by a checked isTagIdValid00.

isTagIdValid00¶

name: isTagIdValid00, type: Bool, persistent: no¶: isTagIdValid00 is checked if the value of tagId00 is valid, otherwise it will be unchecked.

condition00¶

name: condition00, type: Enum, default: EqualsCS¶: condition00 selects which condition must be fulfilled to get a query result.

Values:

Title	Name	Description
equals CS	EqualsCS	The case sensitive value must match exactly.
not equals CS	NotEqualsCS	The case sensitive value must not match exactly.
wildcard matches CS	WildCardCS	The case sensitive value must match exactly whereby wildcards such as * (for none or multiple characters) and ? (for exactly a single character) can be used, for example “He*o” will match “Hello”.
is like	Like	The case insensitive value must match whereby wildcards such as % (for none or multiple characters) and _ (for exactly a single character) can be used, for example “he%o” will match “Hello”; note that case insensitivity only is used for ASCII characters, all other are still compared case sensitively.
is not like	NotLike	The case insensitive value must not match whereby wildcards such as % (for none or multiple characters) and _ (for exactly a single character) can be used, for example “hi%o” will match “Hello” while “he%o” will not match; note that case insensitivity only is used for ASCII characters, all other are still compared case sensitively.
is smaller	Smaller	An alphanumerical smaller operation.
is larger	Larger	An alphanumerical larger operation.
is smaller or equal	SmallerOrEqual	An alphanumerical smaller or equal operation.
is larger or equal	LargerOrEqual	An alphanumerical larger or equal operation.
is between	Between	If selected then a second `value01` input is displayed and an alphanumerical in-range check is performed such that the found value must be alphanumerically inside [`value00`, `value01`] to match.
not wildcard matches CS	NotWildCardCS	The case sensitive value must not match whereby wildcards such as * (for none or multiple characters) and ? (for exactly a single character) can be used, for example “He*o” will match “Hello”.
regular expression	RegExp	The given extended regular expression matches; see https://pubs.opengroup.org/onlinepubs/007908799/xbd/re.html#tag_007_004 for extended regular expressions.
inverted regular expression	InvertedRegExp	The given extended regular expression does not match; see https://pubs.opengroup.org/onlinepubs/007908799/xbd/re.html#tag_007_004 for extended regular expressions.

editMode00¶

name: editMode00, type: Enum, default: String¶: Determines the input data format for the inputs value00 and value01.

Values:

Title	Name	Description
String	String	The value inputs `value00` and `value01` are used directly for value specifications.
Double	Double	Double inputs `doubleValue00` `doubleValue01` are used used to fill `value00` and `value01`.
Int	Int	Integer inputs `intValue00` and `intValue01` are used used to fill `value00` and `value01`.
Date	Date	Date inputs `dateValue00` and `dateValue01` are used used to fill `value00` and `value01`.
Time	Time	Time inputs `timeValue00` and `timeValue01` are used used to fill `value00` and `value01`.
Date Time	DateTime	Date and time inputs `dateValue00`, `timeValue00`, `dateValue01`, and `timeValue01` are used used to fill `value00` and `value01`.

value00¶

name: value00, type: String, default: MR¶: The actual first value used for the query. It may be filled from specialized input fields doubleValue00, intValue00, dateValue00, and/or timeValue00 according to editMode00.

doubleValue00¶

name: doubleValue00, type: Double, default: 0¶: Used as input for value00 if editMode00 is Double.

intValue00¶

name: intValue00, type: Integer, default: 0¶: Used as input for value00 if editMode00 is Int.

dateValue00¶

name: dateValue00, type: String, default: 19700101¶: Used as input for value00 if editMode00 is Date or DateTime.

timeValue00¶

name: timeValue00, type: String, default: 000000.0000¶: Used as input for value00 if editMode00 is Time or DateTime.

value200¶

name: value200, type: String, default: MR¶: The actual second value used for the query which is only used if condition00 needs two arguments (for example Between). It may be filled from specialized input fields doubleValue200, intValue200, dateValue200, and/or timeValue200 according to editMode00.

doubleValue200¶

name: doubleValue200, type: Double, default: 0¶: Used as input for value200 if editMode00 is Double and condition00 requires two arguments (for example Between).

intValue200¶

name: intValue200, type: Integer, default: 0¶: Used as input for value200 if editMode00 is Int and condition00 requires two arguments (for example Between).

dateValue200¶

name: dateValue200, type: String, default: 19700101¶: Used as input for value200 if editMode00 is Date or DateTime and condition00 requires two arguments (for example Between).

timeValue200¶

name: timeValue200, type: String, default: 000000.0000¶: Used as input for value200 if editMode00 is Time or DateTime and condition00 requires two arguments (for example Between).

keyType01¶

name: keyType01, type: Enum, default: DICOMTagValue_Flat¶: See documentation of the analogue keyType00 of the first query row.

tagId01¶

name: tagId01, type: String, default: Modality¶: See documentation of the analogue tagId00 of the first query row.

isTagIdValid01¶

name: isTagIdValid01, type: Bool, persistent: no¶: See documentation of the analogue isTagIdValid00 of the first query row.

condition01¶

name: condition01, type: Enum, default: EqualsCS¶: See documentation of the analogue condition00 of the first query row.

editMode01¶

name: editMode01, type: Enum, default: String¶: See documentation of the analogue editMode00 of the first query row.

value01¶

name: value01, type: String, default: MR¶: See documentation of the analogue value00 of the first query row.

doubleValue01¶

name: doubleValue01, type: Double, default: 0¶: See documentation of the analogue doubleValue00 of the first query row.

intValue01¶

name: intValue01, type: Integer, default: 0¶: See documentation of the analogue intValue00 of the first query row.

dateValue01¶

name: dateValue01, type: String, default: 19700101¶: See documentation of the analogue dateValue00 of the first query row.

timeValue01¶

name: timeValue01, type: String, default: 000000.0000¶: See documentation of the analogue timeValue00 of the first query row.

value201¶

name: value201, type: String, default: MR¶: See documentation of the analogue value200 of the first query row.

doubleValue201¶

name: doubleValue201, type: Double, default: 0¶: See documentation of the analogue doubleValue200 of the first query row.

intValue201¶

name: intValue201, type: Integer, default: 0¶: See documentation of the analogue intValue200 of the first query row.

dateValue201¶

name: dateValue201, type: String, default: 19700101¶: See documentation of the analogue dateValue200 of the first query row.

timeValue201¶

name: timeValue201, type: String, default: 000000.0000¶: See documentation of the analogue timeValue200 of the first query row.

keyType02¶

name: keyType02, type: Enum, default: DICOMTagValue_Flat¶: See documentation of the analogue keyType00 of the first query row.

tagId02¶

name: tagId02, type: String, default: Modality¶: See documentation of the analogue tagId00 of the first query row.

isTagIdValid02¶

name: isTagIdValid02, type: Bool, persistent: no¶: See documentation of the analogue isTagIdValid00 of the first query row.

condition02¶

name: condition02, type: Enum, default: EqualsCS¶: See documentation of the analogue condition00 of the first query row.

editMode02¶

name: editMode02, type: Enum, default: String¶: See documentation of the analogue editMode00 of the first query row.

value02¶

name: value02, type: String, default: MR¶: See documentation of the analogue value00 of the first query row.

doubleValue02¶

name: doubleValue02, type: Double, default: 0¶: See documentation of the analogue doubleValue00 of the first query row.

intValue02¶

name: intValue02, type: Integer, default: 0¶: See documentation of the analogue intValue00 of the first query row.

dateValue02¶

name: dateValue02, type: String, default: 19700101¶: See documentation of the analogue dateValue00 of the first query row.

timeValue02¶

name: timeValue02, type: String, default: 000000.0000¶: See documentation of the analogue timeValue00 of the first query row.

value202¶

name: value202, type: String, default: MR¶: See documentation of the analogue value200 of the first query row.

doubleValue202¶

name: doubleValue202, type: Double, default: 0¶: See documentation of the analogue doubleValue200 of the first query row.

intValue202¶

name: intValue202, type: Integer, default: 0¶: See documentation of the analogue intValue200 of the first query row.

dateValue202¶

name: dateValue202, type: String, default: 19700101¶: See documentation of the analogue dateValue200 of the first query row.

timeValue202¶

name: timeValue202, type: String, default: 000000.0000¶: See documentation of the analogue timeValue200 of the first query row.

keyType03¶

name: keyType03, type: Enum, default: DICOMTagValue_Flat¶: See documentation of the analogue keyType00 of the first query row.

tagId03¶

name: tagId03, type: String, default: Modality¶: See documentation of the analogue tagId00 of the first query row.

isTagIdValid03¶

name: isTagIdValid03, type: Bool, persistent: no¶: See documentation of the analogue isTagIdValid00 of the first query row.

condition03¶

name: condition03, type: Enum, default: EqualsCS¶: See documentation of the analogue condition00 of the first query row.

editMode03¶

name: editMode03, type: Enum, default: String¶: See documentation of the analogue editMode00 of the first query row.

value03¶

name: value03, type: String, default: MR¶: See documentation of the analogue value00 of the first query row.

doubleValue03¶

name: doubleValue03, type: Double, default: 0¶: See documentation of the analogue doubleValue00 of the first query row.

intValue03¶

name: intValue03, type: Integer, default: 0¶: See documentation of the analogue intValue00 of the first query row.

dateValue03¶

name: dateValue03, type: String, default: 19700101¶: See documentation of the analogue dateValue00 of the first query row.

timeValue03¶

name: timeValue03, type: String, default: 000000.0000¶: See documentation of the analogue timeValue00 of the first query row.

value203¶

name: value203, type: String, default: MR¶: See documentation of the analogue value200 of the first query row.

doubleValue203¶

name: doubleValue203, type: Double, default: 0¶: See documentation of the analogue doubleValue01 of the first query row.

intValue203¶

name: intValue203, type: Integer, default: 0¶: See documentation of the analogue intValue200 of the first query row.

dateValue203¶

name: dateValue203, type: String, default: 19700101¶: See documentation of the analogue dateValue200 of the first query row.

timeValue203¶

name: timeValue203, type: String, default: 000000.0000¶: See documentation of the analogue timeValue200 of the first query row.

keyType04¶

name: keyType04, type: Enum, default: DICOMTagValue_Flat¶: See documentation of the analogue keyType00 of the first query row.

tagId04¶

name: tagId04, type: String, default: Modality¶: See documentation of the analogue tagId00 of the first query row.

isTagIdValid04¶

name: isTagIdValid04, type: Bool, persistent: no¶: See documentation of the analogue isTagIdValid00 of the first query row.

condition04¶

name: condition04, type: Enum, default: EqualsCS¶: See documentation of the analogue condition00 of the first query row.

editMode04¶

name: editMode04, type: Enum, default: String¶: See documentation of the analogue editMode00 of the first query row.

value04¶

name: value04, type: String, default: MR¶: See documentation of the analogue value00 of the first query row.

doubleValue04¶

name: doubleValue04, type: Double, default: 0¶: See documentation of the analogue doubleValue00 of the first query row.

intValue04¶

name: intValue04, type: Integer, default: 0¶: See documentation of the analogue intValue00 of the first query row.

dateValue04¶

name: dateValue04, type: String, default: 19700101¶: See documentation of the analogue dateValue00 of the first query row.

timeValue04¶

name: timeValue04, type: String, default: 000000.0000¶: See documentation of the analogue timeValue00 of the first query row.

value204¶

name: value204, type: String, default: MR¶: See documentation of the analogue value200 of the first query row.

doubleValue204¶

name: doubleValue204, type: Double, default: 0¶: See documentation of the analogue doubleValue200 of the first query row.

intValue204¶

name: intValue204, type: Integer, default: 0¶: See documentation of the analogue intValue200 of the first query row.

dateValue204¶

name: dateValue204, type: String, default: 19700101¶: See documentation of the analogue dateValue01 of the first query row.

timeValue204¶

name: timeValue204, type: String, default: 000000.0000¶: See documentation of the analogue timeValue200 of the first query row.

keyType05¶

name: keyType05, type: Enum, default: DICOMTagValue_Flat¶: See documentation of the analogue keyType00 of the first query row.

tagId05¶

name: tagId05, type: String, default: Modality¶: See documentation of the analogue tagId00 of the first query row.

isTagIdValid05¶

name: isTagIdValid05, type: Bool, persistent: no¶: See documentation of the analogue isTagIdValid00 of the first query row.

condition05¶

name: condition05, type: Enum, default: EqualsCS¶: See documentation of the analogue condition00 of the first query row.

editMode05¶

name: editMode05, type: Enum, default: String¶: See documentation of the analogue editMode00 of the first query row.

value05¶

name: value05, type: String, default: MR¶: See documentation of the analogue value00 of the first query row.

doubleValue05¶

name: doubleValue05, type: Double, default: 0¶: See documentation of the analogue doubleValue00 of the first query row.

intValue05¶

name: intValue05, type: Integer, default: 0¶: See documentation of the analogue intValue00 of the first query row.

dateValue05¶

name: dateValue05, type: String, default: 19700101¶: See documentation of the analogue dateValue00 of the first query row.

timeValue05¶

name: timeValue05, type: String, default: 000000.0000¶: See documentation of the analogue timeValue00 of the first query row.

value205¶

name: value205, type: String, default: MR¶: See documentation of the analogue value200 of the first query row.

doubleValue205¶

name: doubleValue205, type: Double, default: 0¶: See documentation of the analogue doubleValue200 of the first query row.

intValue205¶

name: intValue205, type: Integer, default: 0¶: See documentation of the analogue intValue200 of the first query row.

dateValue205¶

name: dateValue205, type: String, default: 19700101¶: See documentation of the analogue dateValue200 of the first query row.

timeValue205¶

name: timeValue205, type: String, default: 000000.0000¶: See documentation of the analogue timeValue200 of the first query row.

keyType06¶

name: keyType06, type: Enum, default: DICOMTagValue_Flat¶: See documentation of the analogue keyType00 of the first query row.

tagId06¶

name: tagId06, type: String, default: Modality¶: See documentation of the analogue tagId00 of the first query row.

isTagIdValid06¶

name: isTagIdValid06, type: Bool, persistent: no¶: See documentation of the analogue isTagIdValid00 of the first query row.

condition06¶

name: condition06, type: Enum, default: EqualsCS¶: See documentation of the analogue condition00 of the first query row.

editMode06¶

name: editMode06, type: Enum, default: String¶: See documentation of the analogue editMode00 of the first query row.

value06¶

name: value06, type: String, default: MR¶: See documentation of the analogue value00 of the first query row.

doubleValue06¶

name: doubleValue06, type: Double, default: 0¶: See documentation of the analogue doubleValue00 of the first query row.

intValue06¶

name: intValue06, type: Integer, default: 0¶: See documentation of the analogue intValue00 of the first query row.

dateValue06¶

name: dateValue06, type: String, default: 19700101¶: See documentation of the analogue dateValue00 of the first query row.

timeValue06¶

name: timeValue06, type: String, default: 000000.0000¶: See documentation of the analogue timeValue00 of the first query row.

value206¶

name: value206, type: String, default: MR¶: See documentation of the analogue value200 of the first query row.

doubleValue206¶

name: doubleValue206, type: Double, default: 0¶: See documentation of the analogue doubleValue200 of the first query row.

intValue206¶

name: intValue206, type: Integer, default: 0¶: See documentation of the analogue intValue200 of the first query row.

dateValue206¶

name: dateValue206, type: String, default: 19700101¶: See documentation of the analogue dateValue200 of the first query row.

timeValue206¶

name: timeValue206, type: String, default: 000000.0000¶: See documentation of the analogue timeValue200 of the first query row.

keyType07¶

name: keyType07, type: Enum, default: DICOMTagValue_Flat¶: See documentation of the analogue keyType00 of the first query row.

tagId07¶

name: tagId07, type: String, default: Modality¶: See documentation of the analogue tagId00 of the first query row.

isTagIdValid07¶

name: isTagIdValid07, type: Bool, persistent: no¶: See documentation of the analogue isTagIdValid00 of the first query row.

condition07¶

name: condition07, type: Enum, default: EqualsCS¶: See documentation of the analogue condition00 of the first query row.

editMode07¶

name: editMode07, type: Enum, default: String¶: See documentation of the analogue editMode00 of the first query row.

value07¶

name: value07, type: String, default: MR¶: See documentation of the analogue value00 of the first query row.

doubleValue07¶

name: doubleValue07, type: Double, default: 0¶: See documentation of the analogue doubleValue00 of the first query row.

intValue07¶

name: intValue07, type: Integer, default: 0¶: See documentation of the analogue intValue00 of the first query row.

dateValue07¶

name: dateValue07, type: String, default: 19700101¶: See documentation of the analogue dateValue00 of the first query row.

timeValue07¶

name: timeValue07, type: String, default: 000000.0000¶: See documentation of the analogue timeValue00 of the first query row.

value207¶

name: value207, type: String, default: MR¶: See documentation of the analogue value200 of the first query row.

doubleValue207¶

name: doubleValue207, type: Double, default: 0¶: See documentation of the analogue doubleValue200 of the first query row.

intValue207¶

name: intValue207, type: Integer, default: 0¶: See documentation of the analogue intValue200 of the first query row.

dateValue207¶

name: dateValue207, type: String, default: 19700101¶: See documentation of the analogue dateValue200 of the first query row.

timeValue207¶

name: timeValue207, type: String, default: 000000.0000¶: See documentation of the analogue timeValue200 of the first query row.

keyType08¶

name: keyType08, type: Enum, default: DICOMTagValue_Flat¶: See documentation of the analogue keyType00 of the first query row.

tagId08¶

name: tagId08, type: String, default: Modality¶: See documentation of the analogue tagId00 of the first query row.

isTagIdValid08¶

name: isTagIdValid08, type: Bool, persistent: no¶: See documentation of the analogue isTagIdValid00 of the first query row.

condition08¶

name: condition08, type: Enum, default: EqualsCS¶: See documentation of the analogue condition00 of the first query row.

editMode08¶

name: editMode08, type: Enum, default: String¶: See documentation of the analogue editMode00 of the first query row.

value08¶

name: value08, type: String, default: MR¶: See documentation of the analogue value00 of the first query row.

doubleValue08¶

name: doubleValue08, type: Double, default: 0¶: See documentation of the analogue doubleValue00 of the first query row.

intValue08¶

name: intValue08, type: Integer, default: 0¶: See documentation of the analogue intValue00 of the first query row.

dateValue08¶

name: dateValue08, type: String, default: 19700101¶: See documentation of the analogue dateValue00 of the first query row.

timeValue08¶

name: timeValue08, type: String, default: 000000.0000¶: See documentation of the analogue timeValue00 of the first query row.

value208¶

name: value208, type: String, default: MR¶: See documentation of the analogue value200 of the first query row.

doubleValue208¶

name: doubleValue208, type: Double, default: 0¶: See documentation of the analogue doubleValue200 of the first query row.

intValue208¶

name: intValue208, type: Integer, default: 0¶: See documentation of the analogue intValue200 of the first query row.

dateValue208¶

name: dateValue208, type: String, default: 19700101¶: See documentation of the analogue dateValue200 of the first query row.

timeValue208¶

name: timeValue208, type: String, default: 000000.0000¶: See documentation of the analogue timeValue200 of the first query row.

keyType09¶

name: keyType09, type: Enum, default: DICOMTagValue_Flat¶: See documentation of the analogue keyType00 of the first query row.

tagId09¶

name: tagId09, type: String, default: Modality¶: See documentation of the analogue tagId00 of the first query row.

isTagIdValid09¶

name: isTagIdValid09, type: Bool, persistent: no¶: See documentation of the analogue isTagIdValid00 of the first query row.

condition09¶

name: condition09, type: Enum, default: EqualsCS¶: See documentation of the analogue condition00 of the first query row.

editMode09¶

name: editMode09, type: Enum, default: String¶: See documentation of the analogue editMode00 of the first query row.

value09¶

name: value09, type: String, default: MR¶: See documentation of the analogue value00 of the first query row.

doubleValue09¶

name: doubleValue09, type: Double, default: 0¶: See documentation of the analogue doubleValue00 of the first query row.

intValue09¶

name: intValue09, type: Integer, default: 0¶: See documentation of the analogue intValue00 of the first query row.

dateValue09¶

name: dateValue09, type: String, default: 19700101¶: See documentation of the analogue dateValue00 of the first query row.

timeValue09¶

name: timeValue09, type: String, default: 000000.0000¶: See documentation of the analogue timeValue00 of the first query row.

value209¶

name: value209, type: String, default: MR¶: See documentation of the analogue value200 of the first query row.

doubleValue209¶

name: doubleValue209, type: Double, default: 0¶: See documentation of the analogue doubleValue200 of the first query row.

intValue209¶

name: intValue209, type: Integer, default: 0¶: See documentation of the analogue intValue200 of the first query row.

dateValue209¶

name: dateValue209, type: String, default: 19700101¶: See documentation of the analogue dateValue200 of the first query row.

timeValue209¶

name: timeValue209, type: String, default: 000000.0000¶: See documentation of the analogue timeValue200 of the first query row.

joinMode00¶

name: joinMode00, type: Enum, default: UNION¶: If #Queries is larger than one then joinMode00 is displayed to decide how the first and the second query row shall operate together or how their results shall be composed; invisible if #Queries is 1.

Values:

Title	Name	Description
UNION	UNION	All results of all queries row are composed to one result and duplicate results are listed only once.
INNER	INNER	Those entries where the search of the first query row and the one of the second query match according `joinCondition00` are added to the result. For example, if `joinCondition00` is equals CS, and if in both query rows DICOMTag values are searched, then all entries are returned where the values case sensitively matches. This mode only uses `joinCondition00` to combine results from the first and second query row, thus the condition, value and edit mode fields of the first and second query rows are insensitive.
LEFT	LEFT	The left join includes the unmatched entries of the first query row left relation along with the matched columns in the result. This mode only uses `joinCondition00` to combine results from the first and second query row, thus the condition, value and edit mode fields of the first and second query rows are insensitive.
INTERSECT	INTERSECT	Only results which exist in both, the first and the second query, are returned.
EXCEPT	EXCEPT	Results which exist only in one of both, the first or the second query, are returned.
UNION ALL	UNION ALL	All results of all queries row are composed to one result and multiple results are listed multiply.

joinCondition00¶

name: joinCondition00, type: Enum, default: EqualsCS¶: Visibly only if #Queries is larger than 1 and only sensitive only if joinMode00 is not UNION. It determines the condition to use for the join operations between the first and the second query row. See condition00 field for the meaning of the modes.

joinMode01¶

name: joinMode01, type: Enum, default: UNION¶: See documentation of the analogue joinMode00 of the first join query row.

joinCondition01¶

name: joinCondition01, type: Enum, default: EqualsCS¶: See documentation of the analogue joinCondition00 of the first join query row.

joinMode02¶

name: joinMode02, type: Enum, default: UNION¶: See documentation of the analogue joinMode00 of the first join query row.

joinCondition02¶

name: joinCondition02, type: Enum, default: EqualsCS¶: See documentation of the analogue joinCondition00 of the first join query row.

joinMode03¶

name: joinMode03, type: Enum, default: UNION¶: See documentation of the analogue joinMode00 of the first join query row.

joinCondition03¶

name: joinCondition03, type: Enum, default: EqualsCS¶: See documentation of the analogue joinCondition00 of the first join query row.

joinMode04¶

name: joinMode04, type: Enum, default: UNION¶: See documentation of the analogue joinMode00 of the first join query row.

joinCondition04¶

name: joinCondition04, type: Enum, default: EqualsCS¶: See documentation of the analogue joinCondition00 of the first join query row.

joinMode05¶

name: joinMode05, type: Enum, default: UNION¶: See documentation of the analogue joinMode00 of the first join query row.

joinCondition05¶

name: joinCondition05, type: Enum, default: EqualsCS¶: See documentation of the analogue joinCondition00 of the first join query row.

joinMode06¶

name: joinMode06, type: Enum, default: UNION¶: See documentation of the analogue joinMode00 of the first join query row.

joinCondition06¶

name: joinCondition06, type: Enum, default: EqualsCS¶: See documentation of the analogue joinCondition00 of the first join query row.

joinMode07¶

name: joinMode07, type: Enum, default: UNION¶: See documentation of the analogue joinMode00 of the first join query row.

joinCondition07¶

name: joinCondition07, type: Enum, default: EqualsCS¶: See documentation of the analogue joinCondition00 of the first join query row.

joinMode08¶

name: joinMode08, type: Enum, default: UNION¶: See documentation of the analogue joinMode00 of the first join query row.

joinCondition08¶

name: joinCondition08, type: Enum, default: EqualsCS¶: See documentation of the analogue joinCondition00 of the first join query row.

isRunning¶

name: isRunning, type: Bool, persistent: no¶: Internally used field to make indicate that a query is currently processed and which makes GUI sections (in)sensitive.

disablePerformanceChecks¶

name: disablePerformanceChecks, type: Bool, default: FALSE¶: This is a hidden field which allows to disable performance warnings and preventing very long queries, for example if the module shall operate in automatic or batch mode. It is recommended to leave this flag disabled when working in interactive mode.
