GVRContourOverlayExtension

MacroModule

genre	VolRend
author	Christian Rieder
package	FMEstable/ReleaseMeVis
definition	GVRMacros.def
see also	SoGVRVolumeRenderer, SoGVRSecondaryVolume, GVRContourOverlay
keywords	GVR, scondary, volume, mask, contour, extension

Purpose

Draws additional contours for GVRContourOverlay

Usage

Connect the module before the GVRContourOverly in the scene graph and specify name and ID.

Details

The contour is calculated in a GLSL shader using a 4-neighbourhood in screen coordinates. Thus, zooming in does not affect the contour thickness.

Windows

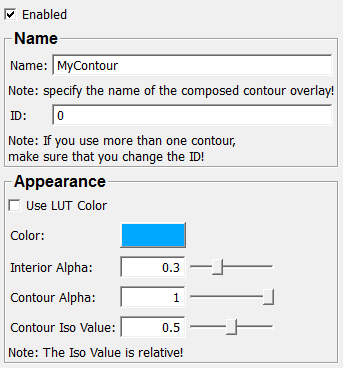

Default Panel

Output Fields

outGVRSecondaryVolume

name: outGVRSecondaryVolume, type: SoNode

A node that should be put in front of the GVRContourOverlay.

Parameter Fields

Field Index

Color: Color	Name: String
Contour Alpha: Float
Contour Iso Value: Float
contourSmoothness: Float
contourThickness: Float
Enabled: Bool
ID: String
Interior Alpha: Float

Visible Fields

Enabled

name: enabled, type: Bool, default: TRUE

Defines if the contour is enabled.

Name

name: volumeName, type: String, default: Lesion

Defines the name of the GVRContourOverlay the contour will be added.

ID

name: ID, type: String, default: 0

Defines the unique ID that will be used to address this contour.

Color

name: color, type: Color, default: 1 0.329411774873734 0

Defines the color of the countour.

Interior Alpha

name: interiorAlpha, type: Float, default: 0.5, minimum: 0, maximum: 1

Defines the interior alpha value.

Contour Alpha

name: contourAlpha, type: Float, default: 1, minimum: 0, maximum: 1

Defines the contour alpha value.

Contour Iso Value

name: contourIsoValue, type: Float, default: 0.80000001, minimum: 0, maximum: 1

Defines the relative iso value the contour to be drawn.

Hidden Fields

contourThickness

name: contourThickness, type: Float, default: 3, minimum: 0, maximum: 8

contourSmoothness

name: contourSmoothness, type: Float, default: 0.001, minimum: 0, maximum: 1
