CurveProperties

MLModule

genre	Diagram
authors	Christian Hansen, Tobias Block
package	FMEstable/ReleaseMeVis
dll	MLCurveInformation
definition	MLCurveInformation.def
see also	CurveImport, CurveGenerator, CurveFilter, ConcatenateCurves
keywords	curve, diagram, style, type, title, name, unit, symbol

Purpose

This modules can change the curve style, type, title, unit and symbol.

Usage

Connect a CurveData or CurveList and select the properties to be changed.

Details

The properties are changed only in the CurveList that is available at outCurves. If the input is a CurveData, the output will be a CurveList containing this CurveData.

Windows

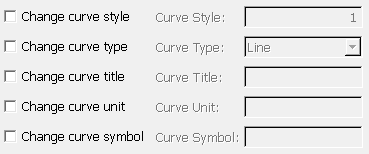

Default Panel

Input Fields

inCurves

name: inCurves, type: MLBase

A CurveData or CurveList.

Output Fields

outCurves

name: outCurves, type: MLBase

A CurveList with the selected properties changed.

Parameter Fields

Field Index

Change curve style: Bool	Curve Type: Enum
Change curve symbol: Bool	Curve Unit: String
Change curve title: Bool
Change curve type: Bool
Change curve unit: Bool
Curve Style: Integer
Curve Symbol: String
Curve Title: String

Visible Fields

Change curve style

name: applyStyle, type: Bool, default: FALSE

Check to change the curve style.

Curve Style

name: style, type: Integer, default: 1, minimum: 1

Curve style (usually from a StylePalette).

Change curve type

name: applyType, type: Bool, default: FALSE

Check to change the curve type.

Curve Type

name: type, type: Enum, default: Line

Curve type.

Values:

Title	Name	Description
​Line	​Line	​Render as line.
​Area	​Area	​Render as area.
​Delta Area	​DeltaArea	​Render as delta area.
​Line Delta Area	​LineDeltaArea	​Render as line delta area.
​Error Bar	​ErrorBar	​Render as error bar.

Change curve title

name: applyTitle, type: Bool, default: FALSE

Check to change the curve title.

Curve Title

name: title, type: String, deprecated name: curveName

Curve title.

Change curve unit

name: applyUnit, type: Bool, default: FALSE

Check to change the curve unit.

Curve Unit

name: unit, type: String

Curve unit.

Change curve symbol

name: applySymbol, type: Bool, default: FALSE

Curve symbol.

Curve Symbol

name: symbol, type: String

Check to change the curve symbol.
