CurveGenerator¶

MLModule¶

genre	`Diagram`
authors	`Tobias Block`, `Bernd Merkel`
package	`FMEstable/ReleaseMeVis`
dll	`MLCurveUtils`
definition	MLCurveUtils.def
see also	`CurveFilter`, `SoDiagram2D`, `CurveImport`
keywords	`curve`, `diagram`, `generator`, `base`, `parser`

Purpose¶

The module CurveGenerator generates an output Curve given a function expression that describes the curve.

Usage¶

Give the function expression in the f(x) section, change constants if necessary and use SoDiagram2D to see the result curve.

Details¶

Internally the muparser (v 2.2.3) is used: http://muparser.beltoforion.de/

Functions

Name	Num. Args	Explanation
sin	1	sine function
sin	1	sine function
cos	1	cosine function
tan	1	tangens function
asin	1	arcus sine function
acos	1	arcus cosine function
atan	1	arcus tangens function
sinh	1	hyperbolic sine function
cosh	1	hyperbolic cosine
tanh	1	hyperbolic tangens function
asinh	1	hyperbolic arcus sine function
acosh	1	hyperbolic arcus tangens function
atanh	1	hyperbolic arcur tangens function
log2	1	logarithm to the base 2
log10	1	logarithm to the base 10
log	1	logarithm to the base 10
ln	1	logarithm to base e (2.71828…)
exp	1	e raised to the power of x
sqrt	1	square root of a value
sign	1	sign function -1 if x<0; 1 if x>0
rint	1	round to nearest integer
abs	1	absolute value
min	var.	min of all arguments
max	var.	max of all arguments
sum	var.	sum of all arguments
avg	var.	mean value of all arguments

Operators

Operator	Description	Priority
=	assignement	-1
&&	logical and	1
\|\|	logical or	2
<=	less or equal	4
>=	greater or equal	4
!=	not equal	4
==	equal	4
>	greater than	4
<	less than	4
+	addition	5
-	subtraction	5
*	multiplication	6
/	division	6
^	raise x to the power of y	7

Operator	Description	Remarks
?:	if then else operator	C++ style syntax

Constants

Constant	Description
e, _e	Euler number
log2e	log2(e)
log10e	log10(e)
ln2	ln(2)
ln10	ln(10)
pi, _pi	Pi
half_pi	Pi * 0.5

Windows¶

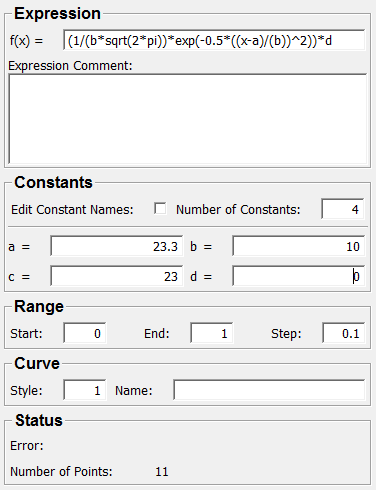

Default Panel¶

../../../Projects/MLCurveUtils/Modules/mhelp/Images/Screenshots/CurveGenerator._default.png

Output Fields¶

outCurve¶

name: outCurve, type: MLBase¶: Output of curve representing the expression

Parameter Fields¶

Field Index¶

`= (extValueA)`: `Double`	`End`: `Double`	`Ext Name G`: `String`
`= (extValueB)`: `Double`	`Error:`: `String`	`Ext Name H`: `String`
`= (extValueC)`: `Double`	`Expression Comment`: `String`	`f(x) =`: `String`
`= (extValueD)`: `Double`	`Ext Name A`: `String`	`Name`: `String`
`= (extValueE)`: `Double`	`Ext Name B`: `String`	`Number of Constants`: `Integer`
`= (extValueF)`: `Double`	`Ext Name C`: `String`	`Number of Points`: `Integer`
`= (extValueG)`: `Double`	`Ext Name D`: `String`	`Start`: `Double`
`= (extValueH)`: `Double`	`Ext Name E`: `String`	`Step`: `Double`
`Edit Constant Names`: `Bool`	`Ext Name F`: `String`	`Style`: `Integer`

Visible Fields¶

f(x) =¶

name: expression, type: String, default: x^2+2*x¶: Sets a string that describes the mathematical expression of the curve.

Start¶

name: startValue, type: Double, default: 0¶: Sets the start value of the definition range.

End¶

name: endValue, type: Double, default: 1¶: Sets the end value of the definition range.

Step¶

name: stepValue, type: Double, default: 0.1, minimum: 0.01¶: Sets a step value in x-direction for function evaluation.

Error:¶

name: errorText, type: String¶: Shows an error message if the expression string could not be parsed correctly.

= (extValueA)¶

name: extValueA, type: Double, default: 0¶: Value of 1. constant used in function.

= (extValueB)¶

name: extValueB, type: Double, default: 0¶: Value of 2. constant used in function.

= (extValueC)¶

name: extValueC, type: Double, default: 0¶: Value of 3. constant used in function.

= (extValueD)¶

name: extValueD, type: Double, default: 0¶: Value of 4. constant used in function.

= (extValueE)¶

name: extValueE, type: Double, default: 0¶: Value of 5. constant used in function.

= (extValueF)¶

name: extValueF, type: Double, default: 0¶: Value of 6. constant used in function.

= (extValueG)¶

name: extValueG, type: Double, default: 0¶: Value of 7. constant used in function.

= (extValueH)¶

name: extValueH, type: Double, default: 0¶: Value of 8. constant used in function.

Ext Name A¶

name: extNameA, type: String, default: a¶: Name of 1. constant used in function.

Ext Name B¶

name: extNameB, type: String, default: b¶: Name of 2. constant used in function.

Ext Name C¶

name: extNameC, type: String, default: c¶: Name of 3. constant used in function.

Ext Name D¶

name: extNameD, type: String, default: d¶: Name of 4. constant used in function.

Ext Name E¶

name: extNameE, type: String, default: e¶: Name of 5. constant used in function.

Ext Name F¶

name: extNameF, type: String, default: f¶: Name of 6. constant used in function.

Ext Name G¶

name: extNameG, type: String, default: g¶: Name of 7. constant used in function.

Ext Name H¶

name: extNameH, type: String, default: h¶: Name of 8. constant used in function.

Style¶

name: style, type: Integer, default: 1, minimum: 1¶: Sets the style of the output curve.

Number of Points¶

name: pointCount, type: Integer, default: 11¶: Shows the number of curve points.

Name¶

name: curveName, type: String¶: Sets a name for the curve.

Expression Comment¶

name: expressionComment, type: String¶: Comment your expression

Number of Constants¶

name: numberOfShownConstants, type: Integer, default: 4, minimum: 0, maximum: 8¶: Number of show constants

Edit Constant Names¶

name: editConstantNames, type: Bool, default: FALSE¶: If true, constant names can be changed
