PCLCopy

MLModule

genre	PCLFilters
author	Wolf Spindler
package	FMEstable/PCL
dll	MLPCLFilters
definition	MLPCLFilters.def
see also	PCLPointMemberArithmetic, PCLPassThrough, PCLIndexFilter
inherits from	PCLModule
keywords	points, clouds, PCL, merge, copy, filter, extract, indexes, indices

Purpose

PCLCopy copies points and/or member fields from inputPCLObject0 to inputPCLObject1 and makes use of indices if Use Input2Indices is enabled. It is useful to extract points from inputPCLObject0 according to indices inputPCLObject1 or to overwrite point members in inputPCLObject1 with values from points of inputPCLObject0.

Rules for copying field members or points which are not available in both inputs:

• If Use Input2Indices is enabled and indices specify points in inputPCLObject0 which do not exist, then these indices are skipped without performing any copy. Only points indicated with indices in range are passed to outputPCLObject0. If indices appear multiply then the indexed points are appended multiply to the outputPCLObject0. If the vector of PointIndices coming with inputPCLObject1 is empty or its containing PointIndices are empty then outputPCLObject0 will be empty.

• If Use Input2Indices is disabled and inputPCLObject0 and inputPCLObject1 have different number of points, then at most Minimum[NumInputPoints0, NumInputPoints1] are passed to outputPCLObject0.

• If a field member is not available in inputPCLObject0 points but in inputPCLObject1 points then the value 0 is used instead.

• If a field member is not available in inputPCLObject1 points but in inputPCLObject0 points then the value is ignored and nothing is modified.

• If a field member is not available in both, inputPCLObject0 and inputPCLObject1 points, then the specified field member is not copied.

Windows

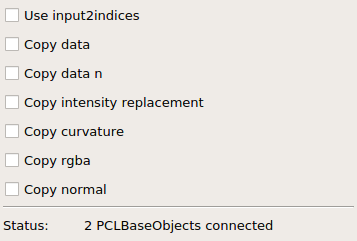

Default Panel

Input Fields

inputPCLObject0

name: inputPCLObject0, type: MLBase

The point cloud from which points and/or field members are copied.

inputPCLObject1

name: inputPCLObject1, type: MLBase

The point cloud from which points are passed to the output and/or whose point field members are possibly overwritten with values from inputPCLObject0.

Output Fields

outputPCLObject0

name: outputPCLObject0, type: MLBase

The output point cloud containing points from inputPCLObject1 whose field members are overwritten with corresponding ones from inputPCLObject1 according to filter selections. Indices of copied source points are added to the output if Use Input2Indices is enabled; they are also provided in the output base object.

Parameter Fields

Field Index

Copy Curvature: Bool

Copy Data: Bool

Copy Data n: Bool

Copy Intensity Replacement: Bool

Copy Normal: Bool

Copy RGBA: Bool

Status: String

Use Input2Indices: Bool

Visible Fields

Status

name: status, type: String, persistent: no

see PCLModule.status

Use Input2Indices

name: useInput2Indices, type: Bool, default: FALSE

If enabled then indices from inputPCLObject1 are taken to select points from inputPCLObject1 if they have corresponding points in inputPCLObject0 and passed to outputPCLObject0. The corresponding field members are copied if enabled.

Copy Data

name: copyData, type: Bool, default: FALSE

The point field data is copied from inputPCLObject0 points to inputPCLObject1 points before they are passed to outputPCLObject0.

Copy Data n

name: copyData_n, type: Bool, default: FALSE

The point field data_n is copied from inputPCLObject0 points to inputPCLObject1 points before they are passed to outputPCLObject0.

Copy Intensity Replacement

name: copyIntensityReplacement, type: Bool, default: FALSE

The intensity replacement field is copied from inputPCLObject0 points to inputPCLObject1 points before they are passed to outputPCLObject0.

Copy Curvature

name: copyCurvature, type: Bool, default: FALSE

The point field curvature is copied from inputPCLObject0 points to inputPCLObject1 points before they are passed to outputPCLObject0.

Copy RGBA

name: copyRGBA, type: Bool, default: FALSE

The point field RGBA is copied from inputPCLObject0 points to inputPCLObject1 points before they are passed to outputPCLObject0.

Copy Normal

name: copyNormal, type: Bool, default: FALSE

The point field normal is copied from inputPCLObject0 points to inputPCLObject1 points before they are passed to outputPCLObject0.
