VTKInputInfos¶

MLModule¶

genre	`VTKAdapters`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/VTK`
dll	`MLVTKAdapters`
definition	MLVTKAdapters.def
see also	`Info`, `VTKOutputSelector`
keywords	`status`, `input`, `information`

Purpose¶

VTKInputInfos checks the connected module, if possible it reads some information from it, and then it shows values and settings from that module in the user interface. It is especially useful to get settings and information about VTK classes and objects which are not shown in their module interfaces.With simple field connections these parameters can easily be used to configure other modules. Note that values can be read only read from appropriate connected objects; from other objects they cannot be read and will be reset to defaults (typically 0).

Tips¶

Usually this module is useful to get some values (such as Scalar Range of a data set) and to connect the read values to another module which needs this information. Typically these connections are established with field connections in module networks.

Windows¶

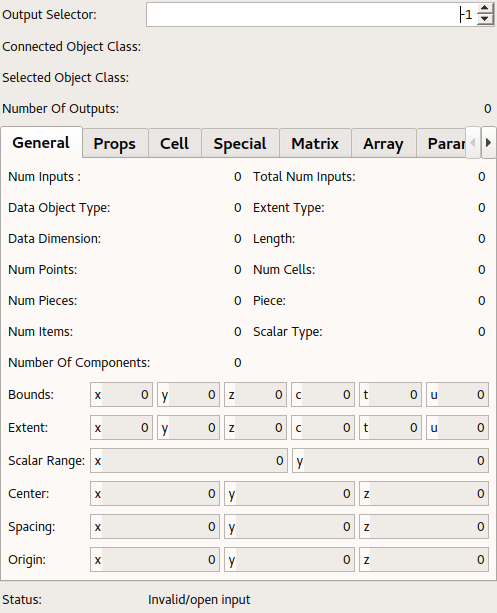

Default Panel¶

../../../Modules/ML/MLVTKAdapters/mhelp/Images/Screenshots/VTKInputInfos._default.png

Input Fields¶

inputvtkObject¶

name: inputvtkObject, type: VTKObjectWrapper(MLBase)¶: A vtkObject or something derived from it.

Parameter Fields¶

Field Index¶

`Actual Memory Size`: `Integer`	`Is Primary Cell`: `Bool`	`Piece`: `Integer`
`Bounds`: `Vector6`	`Join U`: `Integer`	`Range Max (piecewiseFunctionRangeMax)`: `Double`
`Cell Dimension`: `Integer`	`Join V`: `Integer`	`Range Max (colorTransferFunctionRangeMax)`: `Double`
`Cell Type`: `String`	`Length`: `Double`	`Range Min (piecewiseFunctionRangeMin)`: `Double`
`Center`: `Vector3`	`Matrix`: `Matrix`	`Range Min (colorTransferFunctionRangeMin)`: `Double`
`Clamping (piecewiseFunctionClamping)`: `Integer`	`Max Cell Size`: `Integer`	`Release Data Flag`: `Integer`
`Clamping (colorTransferFunctionClamping)`: `Integer`	`Max Id`: `Integer`	`Scalar Range`: `Vector2`
`Class Name A`: `String`	`Maximum U`: `Double`	`Scalar Size`: `Integer`
`Class Name W`: `String`	`Maximum V`: `Double`	`Scalar Type`: `String`
`Clockwise Ordering`: `Integer`	`Maximum W`: `Double`	`Scalar Type Max`: `Double`
`Connected Object Class`: `String`	`Minimum U`: `Double`	`Scalar Type Min`: `Double`
`Data Dimension`: `Integer`	`Minimum V`: `Double`	`Scale`: `Integer`
`Data Object Type`: `String`	`Minimum W`: `Double`	`Selected Object Class`: `String`
`Data Size`: `Integer`	`MTime`: `Integer`	`Size (size)`: `Integer`
`Data Type Size`: `Integer`	`Num Cells`: `Integer`	`Size (piecewiseFunctionSize)`: `Integer`
`dataType`: `String`	`Num Consumers`: `Integer`	`Size (colorTransferFunctionSize)`: `Integer`
`Debug`: `Integer`	`Num Edges`: `Integer`	`Spacing`: `Vector3`
`deprecationFieldDoNotUse`: `Integer`	`Num Faces`: `Integer`	`Status`: `String`
`Derivatives Available`: `Integer`	`Num Inputs`: `Integer`	`Total Num Inputs`: `Integer`
`Dimension`: `Integer`	`Num Items`: `Integer`	`Twist U`: `Integer`
`Direction Cosines`: `Matrix`	`Num Paths`: `Integer`	`Twist V`: `Integer`
`Dragable`: `Integer`	`Num Pieces`: `Integer`	`Type`: `String`
`Element Component Size`: `Integer`	`Num Points`: `Integer`	`Values (piecewiseFunctionValues)`: `String`
`Extent`: `IntVector6`	`Number Of Blocks`: `Integer`	`Values (colorTransferFunctionValues)`: `String`
`Extent Type`: `Integer`	`Number Of Components`: `Integer`	`Visibility`: `Integer`
`GetLength2`: `Double`	`Number Of Data Sets`: `Integer`	`XRange Max`: `Double`
`Ghost Level`: `Integer`	`Number Of Groups`: `Integer`	`XRange Min`: `Double`
`GlobalWarningDisplay`: `Integer`	`Number Of Outputs`: `Integer`	`YRange Max`: `Double`
`Has Meta Data`: `Integer`	`Number Of Tuples`: `Integer`	`YRange Min`: `Double`
`Is Explicit Cell`: `Bool`	`Origin`: `Vector3`	`ZRange Max`: `Double`
`Is Linear`: `Bool`	`Output Selector`: `Integer`	`ZRange Min`: `Double`
`Is Numeric`: `Bool`	`Pickable`: `Integer`

Visible Fields¶

Output Selector¶

name: idx, type: Integer, default: -1, minimum: -1, maximum: :field:`numberOfOutputs`¶: If < 0 then the information shall be read from the connected object itself. If >= 0 then the information is read from an output of the connected object if possible. The OutputSelector’th output is used if available, otherwise no information is read.

Status¶

name: status, type: String, persistent: no¶: Shows connection state.

Connected Object Class¶

name: connectedObjectClass, type: String, persistent: no¶: Name of the class connected to the input.

Selected Object Class¶

name: selectedObjectClass, type: String, persistent: no¶: Name of the class selected by idx.

Number Of Outputs¶

name: numberOfOutputs, type: Integer, persistent: no¶: Number of outputs or output ports in case of sources and algorithms.

Num Inputs¶

name: numberOfInputs, type: Integer, persistent: no¶: Number of Inputs of an algorithm or 0 if not available.

Total Num Inputs¶

name: totalNumberOfInputConnections, type: Integer, persistent: no¶: Total number of inputs of an algorithm or 0 if not available.

Release Data Flag¶

name: releaseDataFlag, type: Integer, persistent: no¶: ReleaseDataFlag of an algorithm or 0 if not available.

MTime¶

name: mTime, type: Integer, persistent: no¶: MTime of object or 0 if not available.

Debug¶

name: debug, type: Integer, persistent: no¶: Debug flag of object or 0 if not available.

GlobalWarningDisplay¶

name: globalWarningDisplay, type: Integer, persistent: no¶: GlobalWarningDisplay flag of object or 0 if not available.

Class Name A¶

name: classNameA, type: String, persistent: no¶: ClassNameA of object or ‘’ if not available.

Class Name W¶

name: classNameW, type: String, persistent: no¶: ClassNameW of object or ‘’ if not available.

Data Object Type¶

name: dataObjectType, type: String, persistent: no¶

Type of data object or 0 if not available:

0 VTK_POLY_DATA
1 VTK_STRUCTURED_POINTS
2 VTK_STRUCTURED_GRID
3 VTK_RECTILINEAR_GRID
4 VTK_UNSTRUCTURED_GRID
5 VTK_PIECEWISE_FUNCTION
6 VTK_IMAGE_DATA
7 VTK_DATA_OBJECT
8 VTK_DATA_SET
9 VTK_POINT_SET
10 VTK_UNIFORM_GRID
11 VTK_COMPOSITE_DATA_SET
12 VTK_MULTIGROUP_DATA_SET
13 VTK_MULTIBLOCK_DATA_SET
14 VTK_HIERARCHICAL_DATA_SET
15 VTK_HIERARCHICAL_BOX_DATA_SET
16 VTK_GENERIC_DATA_SET
17 VTK_HYPER_OCTREE
18 VTK_TEMPORAL_DATA_SET
19 VTK_TABLE
20 VTK_GRAPH
21 VTK_TREE
22 VTK_SELECTION
23 VTK_DIRECTED_GRAPH
24 VTK_UNDIRECTED_GRAPH
25 VTK_MULTIPIECE_DATA_SET
26 VTK_DIRECTED_ACYCLIC_GRAPH
27 VTK_ARRAY_DATA
28 VTK_REEB_GRAPH
29 VTK_UNIFORM_GRID_AMR
30 VTK_NON_OVERLAPPING_AMR
31 VTK_OVERLAPPING_AMR
32 VTK_HYPER_TREE_GRID
33 VTK_MOLECULE
34 VTK_PISTON_DATA_OBJECT
35 VTK_PATH
36 VTK_UNSTRUCTURED_GRID_BASE

Extent Type¶

name: extentType, type: Integer, persistent: no¶: Extent type of object or 0 if not available: * 0 = VTK_PIECES_EXTENT 0 * 1 = VTK_3D_EXTENT 1

Scalar Range¶

name: scalarRange, type: Vector2, persistent: no¶: The scalar range of the object values or 0 0 if not available.

Scalar Type¶

name: scalarType, type: String, persistent: no¶

Type of scalar data object or 0 if not available:

0 = VTK_VOID
1 = VTK_BIT
2 = VTK_CHAR
3 = VTK_UNSIGNED_CHAR
4 = VTK_SHORT
5 = VTK_UNSIGNED_SHORT
6 = VTK_INT
7 = VTK_UNSIGNED_INT
8 = VTK_LONG
9 = VTK_UNSIGNED_LONG
10 = VTK_FLOAT
11 = VTK_DOUBLE
12 = VTK_ID_TYPE
13 = VTK_STRING
14 = VTK_OPAQUE
15 = VTK_SIGNED_CHAR
16 = VTK_LONG_LONG
17 = VTK_UNSIGNED_LONG_LONG
18 = VTK___INT64
19 = VTK_UNSIGNED___INT64

Data Dimension¶

name: dataDimension, type: Integer, persistent: no¶: Dimension of data or file or 0 if not available.

Num Points¶

name: numberOfPoints, type: Integer, persistent: no¶: Number of points in object or 0 if not available.

Num Items¶

name: numberOfItems, type: Integer, persistent: no¶: Number of items in a collection or 0 if not available.

Num Cells¶

name: numberOfCells, type: Integer, persistent: no¶: Number of cells in object or 0 if not available.

Length¶

name: length, type: Double, persistent: no¶: Length of object or 0 if not available.

Bounds¶

name: bounds, type: Vector6, persistent: no¶: Bound of object or 0 0 0 0 0 0 if not available.

Center¶

name: center, type: Vector3, persistent: no¶: Center of object or 0 0 0 if not available.

Spacing¶

name: spacing, type: Vector3, persistent: no¶: Size/spacing of image data voxels or 0 0 0 if not available.

Origin¶

name: origin, type: Vector3, persistent: no¶: Position of the origin voxel or 0 0 0 if not available. The voxel origin is considered in the voxel center.

Direction Cosines¶

name: dirCosines, type: Matrix, persistent: no¶: Direction cosines provided by some readers or 0 matrix if not available.

Extent¶

name: ext, type: IntVector6, persistent: no¶: (Data) Extent of image or 0 0 0 0 0 0 if not available.

Max Cell Size¶

name: maxCellSize, type: Integer, persistent: no¶: Maximum cell size of object or 0 if not available.

Actual Memory Size¶

name: actualMemorySize, type: Integer, persistent: no¶: Actual memory size of object or 0 if not available.

Piece¶

name: piece, type: Integer, persistent: no¶: Piece of object or 0 if not available.

Num Pieces¶

name: numberOfPieces, type: Integer, persistent: no¶: Number of pieces in object or 0 if not available.

Ghost Level¶

name: ghostLevel, type: Integer, persistent: no¶: Ghost level of object or 0 if not available.

Cell Type¶

name: cellType, type: String, persistent: no¶

Cell type of a cell object or 0 if not available.

VTK_EMPTY_CELL 0
VTK_VERTEX 1
VTK_POLY_VERTEX 2
VTK_LINE 3
VTK_POLY_LINE 4
VTK_TRIANGLE 5
VTK_TRIANGLE_STRIP 6
VTK_POLYGON 7
VTK_PIXEL 8
VTK_QUAD 9
VTK_TETRA 10
VTK_VOXEL 11
VTK_HEXAHEDRON 12
VTK_WEDGE 13
VTK_PYRAMID 14
VTK_PENTAGONAL_PRISM 15
VTK_HEXAGONAL_PRISM 16

// Quadratic, isoparametric cells

VTK_QUADRATIC_EDGE 21
VTK_QUADRATIC_TRIANGLE 22
VTK_QUADRATIC_QUAD 23
VTK_QUADRATIC_TETRA 24
VTK_QUADRATIC_HEXAHEDRON 25
VTK_QUADRATIC_WEDGE 26
VTK_QUADRATIC_PYRAMID 27
VTK_BIQUADRATIC_QUAD 28
VTK_TRIQUADRATIC_HEXAHEDRON 29
VTK_QUADRATIC_LINEAR_QUAD 30
VTK_QUADRATIC_LINEAR_WEDGE 31
VTK_BIQUADRATIC_QUADRATIC_WEDGE 32
VTK_BIQUADRATIC_QUADRATIC_HEXAHEDRON 33
VTK_BIQUADRATIC_TRIANGLE 34

// Cubic, isoparametric cell

VTK_CUBIC_LINE 35

// Special class of cells formed by convex group of points

#define VTK_CONVEX_POINT_SET 41

// Higher order cells in parametric form

VTK_PARAMETRIC_CURVE 51
VTK_PARAMETRIC_SURFACE 52
VTK_PARAMETRIC_TRI_SURFACE 53
VTK_PARAMETRIC_QUAD_SURFACE 54
VTK_PARAMETRIC_TETRA_REGION 55
VTK_PARAMETRIC_HEX_REGION 56

// Higher order cells

VTK_HIGHER_ORDER_EDGE 60
VTK_HIGHER_ORDER_TRIANGLE 61
VTK_HIGHER_ORDER_QUAD 62
VTK_HIGHER_ORDER_POLYGON 63
VTK_HIGHER_ORDER_TETRAHEDRON 64
VTK_HIGHER_ORDER_WEDGE 65
VTK_HIGHER_ORDER_PYRAMID 66
VTK_HIGHER_ORDER_HEXAHEDRON 67

Cell Dimension¶

name: cellDimension, type: Integer, persistent: no¶: Cell dimension of a cell object or 0 if not available.

Num Edges¶

name: numberOfEdges, type: Integer, persistent: no¶: Number of edges of a cell object or 0 if not available.

Num Faces¶

name: numberOfFaces, type: Integer, persistent: no¶: Number of faces of a cell object or 0 if not available.

Is Explicit Cell¶

name: isExplicitCell, type: Bool, persistent: no¶: Non zero if a cell object is explicit or 0 if not or not available.

Is Linear¶

name: isLinear, type: Bool, persistent: no¶: Non zero if a cell object is linear or 0 if not or not available.

Is Primary Cell¶

name: isPrimaryCell, type: Bool, persistent: no¶: Non zero if a cell object is primary or 0 if not or not available.

Num Paths¶

name: numberOfPaths, type: Integer, persistent: no¶: Number of paths in a vtkProp or 0 if not available.

Num Consumers¶

name: numberOfConsumers, type: Integer, persistent: no¶: Number of consumers of a vtkProp or 0 if not available.

Visibility¶

name: visibility, type: Integer, persistent: no¶: Non zero if vtkProp is visible or 0 if not available.

Pickable¶

name: pickable, type: Integer, persistent: no¶: Non zero if vtkProp is pickable or 0 if not available.

Dragable¶

name: dragable, type: Integer, persistent: no¶: Non zero if vtkProp is dragable or 0 if not available.

Matrix¶

name: matrix, type: Matrix, persistent: no¶: Matrix of a vtkProp or 0 matrix if not available.

XRange Min¶

name: xRangeMin, type: Double, persistent: no¶: Minimum of XRange or 0 if not available.

YRange Min¶

name: yRangeMin, type: Double, persistent: no¶: Minimum of YRange or 0 if not available.

ZRange Min¶

name: zRangeMin, type: Double, persistent: no¶: Minimum of ZRange or 0 if not available.

XRange Max¶

name: xRangeMax, type: Double, persistent: no¶: Maximum of XRange or 0 if not available.

YRange Max¶

name: yRangeMax, type: Double, persistent: no¶: Maximum of YRange or 0 if not available.

ZRange Max¶

name: zRangeMax, type: Double, persistent: no¶: Maximum of ZRange or 0 if not available.

Is Numeric¶

name: isNumeric, type: Bool, persistent: no¶: 1 if a vtkArray is a numeric array or 0 if not or not available.

Data Size¶

name: dataSize, type: Integer, persistent: no¶: Total number of components of a vtkArray or 0 if not available.

Data Type Size¶

name: dataTypeSize, type: Integer, persistent: no¶: Size of data type of a vtkArray or 0 if not available.

Element Component Size¶

name: elementComponentSize, type: Integer, persistent: no¶: Size of a single component in a tuple of a vtkArray or 0 if not available.

Max Id¶

name: maxId, type: Integer, persistent: no¶: Maximum ID of a vtkArray or 0 if not available.

Number Of Components¶

name: numberOfComponents, type: Integer, persistent: no¶: Number of (array) or data components or 0 if not available.

Number Of Tuples¶

name: numberOfTuples, type: Integer, persistent: no¶: Number of tuples in a vtkArray or 0 if not available.

Size (size)¶

name: size, type: Integer, persistent: no¶: Total number of all components in all tuples or 0 if not available.

Dimension¶

name: dimension, type: Integer, persistent: no¶: The dimension of the parametric function or 0 if not available.

Minimum U¶

name: minimumU, type: Double, persistent: no¶: The minimumU value or 0 if not available.

Minimum V¶

name: minimumV, type: Double, persistent: no¶: The minimumV value or 0 if not available.

Minimum W¶

name: minimumW, type: Double, persistent: no¶: The minimumW value or 0 if not available.

Maximum U¶

name: maximumU, type: Double, persistent: no¶: The maximumU value or 0 if not available.

Maximum V¶

name: maximumV, type: Double, persistent: no¶: The maximumV value or 0 if not available.

Maximum W¶

name: maximumW, type: Double, persistent: no¶: The maximumW value or 0 if not available.

Join U¶

name: joinU, type: Integer, persistent: no¶: The joinU value or 0 if not available.

Join V¶

name: joinV, type: Integer, persistent: no¶: The joinV value or 0 if not available.

Twist U¶

name: twistU, type: Integer, persistent: no¶: The twistU value or 0 if not available.

Twist V¶

name: twistV, type: Integer, persistent: no¶: The twistV value or 0 if not available.

Clockwise Ordering¶

name: clockwiseOrdering, type: Integer, persistent: no¶: 1 if the parametric function is clockwisely ordered or 0 if not or not available.

Derivatives Available¶

name: derivativesAvailable, type: Integer, persistent: no¶: 1 if the parametric function has derivatives or 0 if not or not available.

Number Of Blocks¶

name: numberOfBlocks, type: Integer, persistent: no¶: Number of blocks in the multi block data set or 0 if not available.

Number Of Groups¶

name: numberOfGroups, type: Integer, persistent: no¶: Number of groups in the multi groups data set or 0 if not available.

Number Of Data Sets¶

name: numberOfDataSets, type: Integer, persistent: no¶: Number of data sets in the first group in the multi groups data set or 0 if not available.

Has Meta Data¶

name: hasMetaData, type: Integer, persistent: no¶: Only in future versions, still unused: True (!=0) if the first block has meta data or 0 if not available.

Scalar Size¶

name: scalarSize, type: Integer, persistent: no¶: The size of the scalar type or 0 if not available.

Scalar Type Min¶

name: scalarTypeMin, type: Double, persistent: no¶: The minimum value the scalar type can hold without overflow or 0 if not available.

Scalar Type Max¶

name: scalarTypeMax, type: Double, persistent: no¶: The maximum value the scalar type can hold without overflow or 0 if not available.

Size (piecewiseFunctionSize)¶

name: piecewiseFunctionSize, type: Integer, persistent: no¶: Number of data pairs or 0 if not available.

Type¶

name: piecewiseFunctionType, type: String, persistent: no¶: Function type or empty if not available.

Range Min (piecewiseFunctionRangeMin)¶

name: piecewiseFunctionRangeMin, type: Double, persistent: no¶: Range minimum of function or 0 if not available.

Range Max (piecewiseFunctionRangeMax)¶

name: piecewiseFunctionRangeMax, type: Double, persistent: no¶: Range maximum of function or 0 if not available.

Clamping (piecewiseFunctionClamping)¶

name: piecewiseFunctionClamping, type: Integer, persistent: no¶: 0 if clamping is off, something else if on.

Values (piecewiseFunctionValues)¶

name: piecewiseFunctionValues, type: String, persistent: no¶: (X,Value) pairs or empty if not available.

Size (colorTransferFunctionSize)¶

name: colorTransferFunctionSize, type: Integer, persistent: no¶: Number of data pairs or 0 if not available.

Range Min (colorTransferFunctionRangeMin)¶

name: colorTransferFunctionRangeMin, type: Double, persistent: no¶: Range minimum of function or 0 if not available.

Range Max (colorTransferFunctionRangeMax)¶

name: colorTransferFunctionRangeMax, type: Double, persistent: no¶: Range maximum of function or 0 if not available.

Clamping (colorTransferFunctionClamping)¶

name: colorTransferFunctionClamping, type: Integer, persistent: no¶: 0 if clamping is off, something else if on.

Scale¶

name: colorTransferFunctionScale, type: Integer, persistent: no¶: Scale type, linear or logarithmic or 0 if not available.

Values (colorTransferFunctionValues)¶

name: colorTransferFunctionValues, type: String, persistent: no¶: (X,Value) pairs or empty if not available.

Hidden Fields¶

GetLength2¶

name: GetLength2, type: Double, persistent: no¶

dataType¶

name: dataType, type: String, persistent: no¶

Data type of a vtkArray or 0 if not available. Data types are

0 = VTK_VOID
1 = VTK_BIT
2 = VTK_CHAR
3 = VTK_UNSIGNED_CHAR
4 = VTK_SHORT
5 = VTK_UNSIGNED_SHORT
6 = VTK_INT
7 = VTK_UNSIGNED_INT
8 = VTK_LONG
9 = VTK_UNSIGNED_LONG
10 = VTK_FLOAT
11 = VTK_DOUBLE
12 = VTK_ID_TYPE
13 = VTK_STRING
14 = VTK_OPAQUE
15 = VTK_SIGNED_CHAR
16 = VTK_LONG_LONG
17 = VTK_UNSIGNED_LONG_LONG
18 = VTK___INT64
19 = VTK_UNSIGNED___INT64
20 = VTK_VARIANT
21 = VTK_OBJECT
22 = VTK_UNICODE_STRING

deprecationFieldDoNotUse¶

name: deprecationFieldDoNotUse, type: Integer, default: 0, deprecated name: numberOfParts¶
