TestPattern¶

MLModule¶

genre	`Generators`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`MLBasicModules`
definition	mlBasicModules.def
see also	`ImageSave`
inherits from	`ConstantImage`
keywords	`image`, `ramp`, `gradient`, `example`

Purpose¶

The module TestPattern creates a test image with a certain size, page size, data type, and a special pattern.

Usage¶

Define your parameters for the new image, press the Apply button. Then, you can either view the image in a viewer or save it with the ImageSave module.

Details¶

This module does not support integer vector types as output data type for any pattern that generates a ramp.

Windows¶

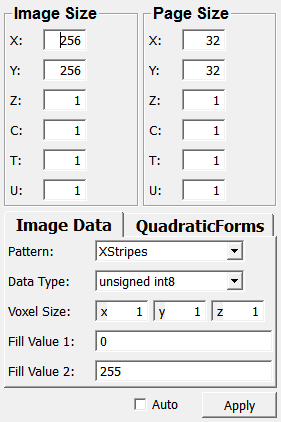

Default Panel¶

../../../Modules/ML/MLBasicModules/mhelp/Images/Screenshots/TestPattern._default.png

Output Fields¶

output0¶

name: output0, type: Image¶: The generated pattern image.

Parameter Fields¶

Field Index¶

`Apply`: `Trigger`	`Gradient`: `Vector3`	`X (sizeX)`: `Integer`
`Auto`: `Bool`	`Off Diagonal`: `Vector3`	`X (pageSizeX)`: `Integer`
`C (sizeC)`: `Integer`	`Pattern`: `Enum`	`Y (sizeY)`: `Integer`
`C (pageSizeC)`: `Integer`	`T (sizeT)`: `Integer`	`Y (pageSizeY)`: `Integer`
`Data Type`: `Enum`	`T (pageSizeT)`: `Integer`	`Z (sizeZ)`: `Integer`
`Eigenvalues`: `Vector3`	`U (sizeU)`: `Integer`	`Z (pageSizeZ)`: `Integer`
`Fill Value 1`: `String`	`U (pageSizeU)`: `Integer`
`Fill Value 2`: `String`	`Voxel Size`: `Vector3`

Visible Fields¶

X (sizeX)¶

name: sizeX, type: Integer, default: 256, minimum: 1, maximum: 1.07374e+09, deprecated name: XSize¶: Sets the x-extent of the output image.

Y (sizeY)¶

name: sizeY, type: Integer, default: 256, minimum: 1, maximum: 1.07374e+09, deprecated name: YSize¶: Sets the y-extent of the output image.

Z (sizeZ)¶

name: sizeZ, type: Integer, default: 1, minimum: 1, maximum: 1.07374e+09, deprecated name: ZSize¶: Sets the z-extent of the output image.

C (sizeC)¶

name: sizeC, type: Integer, default: 1, minimum: 1, maximum: 1.07374e+09, deprecated name: CSize¶: Sets the c-extent of the output image.

T (sizeT)¶

name: sizeT, type: Integer, default: 1, minimum: 1, maximum: 1.07374e+09, deprecated name: TSize¶: Sets the t-extent of the output image.

U (sizeU)¶

name: sizeU, type: Integer, default: 1, minimum: 1, maximum: 1.07374e+09, deprecated name: USize¶: Sets the u-extent of the output image.

Data Type¶

name: dataType, type: Enum, default: unsigned int8, deprecated name: Datatype¶

Defines the data type of the output image.

The two fill values Fill Value 1 and Fill Value 2 need to be in the data type’s range.

Fill Value 1¶

name: fillValue, type: String, default: 0, deprecated name: FillExtValue¶

Sets the first value used for pattern calculation.

Normally used as minimum value of the output image.

Apply¶

name: apply, type: Trigger, deprecated name: Apply¶: When pressed, the output of the module is being updated.

Auto¶

name: autoApply, type: Bool, default: FALSE, deprecated name: AutoApply¶: If checked, the module updates its output on any field change.

Pattern¶

name: pattern, type: Enum, default: XStripes, deprecated name: Mode¶: Defines the pattern that is generated by the module.

Values:

Title	Name	Deprecated Name	Description
XStripes	XStripes	x stripes	Fine stripes in the x-direction.
YStripes	YStripes	y stripes	Fine stripes in the y-direction.
XYStripes	XYStripes	xy stripes	Fine stripes in the x- and y-direction.
Page Checkers	PageCheckers	pagecheckers	The pages are colored like a chess board.
Page Border	PageBorder	pageborder	The resulting image will have `Fill Value 1` at the high and low page border in the x, y, and z dimension, but only if the page size in that dimension is higher than 2; otherwise, borders are omitted for that dimension. Incomplete pages will have their high border drawn at the image border.
Image Border	ImageBorder	imageborder	The resulting image will have `Fill Value 1` at its high and low image borders in the x- and y-dimension, `Fill Value 2` everywhere else.
XRamp	XRamp	x ramp	A simple linear ramp from `Fill Value 1` to `Fill Value 2` along the x-dimension.
YRamp	YRamp	y ramp	A simple linear ramp from `Fill Value 1` to `Fill Value 2` along the y-dimension.
ZRamp	ZRamp		A simple linear ramp from `Fill Value 1` to `Fill Value 2` along the z-dimension.
CRamp	CRamp		A simple linear ramp from `Fill Value 1` to `Fill Value 2` along the c-dimension.
TRamp	TRamp		A simple linear ramp from `Fill Value 1` to `Fill Value 2` along the t-dimension.
URamp	URamp		A simple linear ramp from `Fill Value 1` to `Fill Value 2` along the u-dimension.
XYBorder Center	XYBorderCenter	xy border and center	Same as ImageBorder, with an additional dot in the middle of the (3D) image.
Corners Midpoints	CornersMidpoints	corners and midpoints	The corner voxels and all middle voxels on the surface of the 3D cube have `Fill Value 1`, all others have `Fill Value 2`.
Filled Max Ellipsoid	FilledMaxEllipsoid	filled max. ellipsoid	The image is filled with `Fill Value 1` within the maximum ellipsoid fitting in the volume of the image, and with `Fill Value 2` in the remaining area. This works in 2D and 3D.
Page Checkers Gray	PageCheckersGray		The pages are colored like a chess board with different values starting in the upper left corner with `Fill Value 1`.
Volume Ramp	VolumeRamp		The relative position of a component of a voxel position in the interval [1, Image Extent D] where D is the dimension of the component is scaled to [0,1]. All values for all components are multiplied and scaled to the range [`Fill Value 1`, `Fill Value 2`] and written into the image. The appearance is a continuous ramp through the entire volume, dark at the origin and bright at the maximum extent of the image.
Index Ramp	IndexRamp		All voxels of the image are labeled with increasing indices linearly from position (0,0,0,0,0,0) up to the image extent. The indices are scaled to the range [`Fill Value 1`, `Fill Value 2`] and written into the image. The appearance is a continuous ramp through the entire volume, dark at the origin and bright at the maximum extent of the image.
Empty	Empty		The entire image is filled with `Fill Value 1` and [`Fill Value 1`, `Fill Value 2`] are defined as minimum and maximum voxel value of the image.
Page Ids	PageIds		The voxel values in the pages are set to the ID of the corresponding pages and the minimum/maximum values of the image are set to [0, NumPageIDs].
XYRadial Ramp	XYRadialRamp		The voxel values increase with an increasing angle between the first dimension and the vector that points from the voxel to the image center. The appearance is a continuous radial ramp centered at the image center.
XZRadial Ramp	XZRadialRamp		The voxel values increase with an increasing angle between the first dimension and the vector that points from the voxel to the image center. The appearance is a continuous radial ramp centered at the image center.
YZRadial Ramp	YZRadialRamp		The voxel values increase with an increasing angle between the first dimension and the vector that points from the voxel to the image center. The appearance is a continuous radial ramp centered at the image center.
Diag Quadratic Form	DiagQuadraticForm		The voxel values in the pages are computed employing parameters of a quadratic form (`Gradient` and `Eigenvalues`): f(x,y,z) = `Fill Value 1` + < `Gradient` \| (x,y,z)> + < `Eigenvalues` \| (x^2,y^2,z^2)> for visualization and test of Hesse matrix analysis. Note that the quadratic forms do not set proper min and max values as these are hard to determine in advance for general parameter settings. Please use a `MinMaxScan` after a `TestPattern` generating quadratic forms. Quadratic forms make more sense with signed integer or floating point data types. There is a special example for this mode.
Full Quadratic Form	FullQuadraticForm		The voxel values in the pages are computed employing parameters of a quadratic form (`Gradient`, `Eigenvalues` and `Off Diagonal`): f(x,y,z) = `Fill Value 1` + < `Gradient` \| (x,y,z)> + < `Eigenvalues` \| (x^2,y^2,z^2)> + 2(offDiag_x xy + offDiag_y yz + offDiag_z xz) Note* that the quadratic forms do not set proper min and max values, as these are hard to determine in advance for general parameter settings. Please use a `MinMaxScan` after a `TestPattern` generating quadratic forms. Quadratic forms make more sense with signed integer or floating point data types. There is a special example for this mode.

Voxel Size¶

name: voxelSize, type: Vector3, default: 1 1 1¶: Sets the distance between voxel centers.

Gradient¶

name: gradient, type: Vector3, default: 0 0 0¶: Sets a gradient value used in DiagQuadraticForm and FullQuadraticForm patterns.

Eigenvalues¶

name: eigenValues, type: Vector3, default: 1 0 -1¶: Sets eigenvalues used in DiagQuadraticForm and FullQuadraticForm patterns.

Off Diagonal¶

name: offDiagonalElements, type: Vector3, default: 0 0 0¶: Sets off diagonal elements used in FullQuadraticForm pattern.

Fill Value 2¶

name: fillValue2, type: String, default: 255, deprecated name: FillExtValue2¶

Sets the second value used for pattern calculation.

Normally used as maximum value of the output image.

X (pageSizeX)¶

name: pageSizeX, type: Integer, default: 32, minimum: 1, maximum: 32768, deprecated name: XPageSize¶: Sets the x-extent of the page size of the output image.

Y (pageSizeY)¶

name: pageSizeY, type: Integer, default: 32, minimum: 1, maximum: 32768, deprecated name: YPageSize¶: Sets the y-extent of the page size of the output image.

Z (pageSizeZ)¶

name: pageSizeZ, type: Integer, default: 1, minimum: 1, maximum: 32768, deprecated name: ZPageSize¶: Sets the z-extent of the page size of the output image.

C (pageSizeC)¶

name: pageSizeC, type: Integer, default: 1, minimum: 1, maximum: 32768, deprecated name: CPageSize¶: Sets the c-extent of the page size of the output image.

T (pageSizeT)¶

name: pageSizeT, type: Integer, default: 1, minimum: 1, maximum: 32768, deprecated name: TPageSize¶: Sets the t-extent of the page size of the output image.

U (pageSizeU)¶

name: pageSizeU, type: Integer, default: 1, minimum: 1, maximum: 32768, deprecated name: UPageSize¶: Sets the u-extent of the page size of the output image.
