StopWatch

MacroModule

genre	Extras
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
definition	helpers.def
see also	MemoryCache, LapTimer
keywords	Start, time, measure

Purpose

The module StopWatch measures the time needed for an operation. There are three different ways of operation:

• Start-Stop: Measures the time between triggering the start and the stop button. Also allows for pause/resume.
• External duration: Measures the time elapsing when a external field is triggered.
• Image computation: Measures the time needed to compute the complete input image.

Better use the Profiler view in MeVisLab.

Usage

In order to automatically start an operation in your network when the Start button is pressed, connect the External field to an appropriate trigger field in your network. The time needed for this operation can be measured either in External duration mode or in Start-Stop mode. In the latter case, the Pause or Stop field must be triggered when the operation to be measured is completed.

In the Image Computation mode, connect an image to the module’s input and press Start. The module measures the time needed to cache the complete input image.

Details

In order to measure performance times under defined conditions, it is often desirable to clear the MeVisLab image cache before measuring the time needed for an operation.

This can be conveniently done by selecting the Clear Cache option of the StopWatch module. When this option is enabled, the Clear cache before starting timer method of the network containing the StopWatch module is executed.

Windows

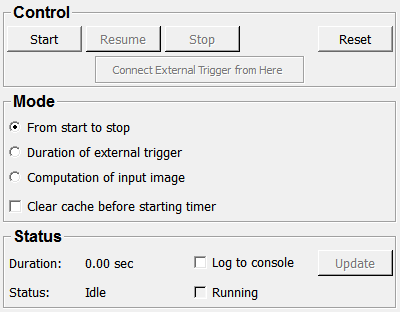

Default Panel

Input Fields

inImage

name: inImage, type: Image, deprecated name: imageIn

Parameter Fields

Field Index

Clear cache before starting timer: Bool	Running: Bool
Connect External Trigger from Here: Trigger	Start: Trigger
Duration: Float	Status: String
Log to console: Bool	Stop: Trigger
Mode: Enum	Update: Trigger
paused: Bool
Reset: Trigger
Resume: Trigger

Visible Fields

Start

name: start, type: Trigger

If pressed, the timing is started from scratch.

Resume

name: resume, type: Trigger

If pressed, the timing is resumed from the current duration.

Stop

name: stop, type: Trigger

If pressed, the timing is stopped / paused.

Reset

name: reset, type: Trigger

If pressed, the status is reset.

Update

name: updateDuration, type: Trigger

If pressed, the duration display is updated.

Connect External Trigger from Here

name: external, type: Trigger

Use this field to connect to an external field from it to trigger a computation.

This field is touched from within when the timer starts.

Mode

name: mode, type: Enum, default: Stop

Defines the mode for the module to measure time.

Values:

Title	Name
Stop	Stop
External	External
Image	Image

Clear cache before starting timer

name: clearCache, type: Bool, default: FALSE

If checked, the image cache of MeVisLab is cleared before starting to take time.

This is important for measuring image computation time because this guarantees that every page is computed and not fetched from the cache.

Duration

name: duration, type: Float, persistent: no

Shows the duration of the measurement.

Status

name: status, type: String, persistent: no

Shows status information about this module.

Running

name: running, type: Bool, persistent: no

Shows whether the timer is running.

Log to console

name: consoleLog, type: Bool, default: FALSE

If checked, log message are printed to the console.

Hidden Fields

paused

name: paused, type: Bool, persistent: no
