LapTimer

MLModule

genre	Extras
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	MLMiscModules
definition	MLMiscModules.def
see also	StopWatch
keywords	stop, watch

Purpose

The module LapTimer module allows for the measurement of duration similar to that of an actual stopwatch.

Windows

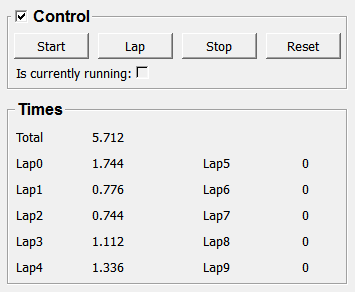

Default Panel

Parameter Fields

Field Index

enabled: Bool

Is currently running: Bool

Lap: Trigger

numberOfLapTimes: Integer

Reset: Trigger

Start: Trigger

Stop: Trigger

Total: Float

Visible Fields

Total

name: total, type: Float, persistent: no

Shows the total elapsed time.

Start

name: start, type: Trigger

When pressed, the timer is started.

Stop

name: stop, type: Trigger

When pressed, the timer is stopped.

Lap

name: lap, type: Trigger

When pressed, the current time (if running) is shown in the next free Lap field.

Reset

name: reset, type: Trigger

When pressed, all measured times are reset.

Is currently running

name: on, type: Bool, default: FALSE

Shows whether the timer is currently running.

Hidden Fields

numberOfLapTimes

name: numberOfLapTimes, type: Integer, persistent: no

enabled

name: enabled, type: Bool, default: TRUE
