SoView2DExtensionSeparator

InventorModule

genre	View2D
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	SoView2D
definition	view2d.def
see also	SoView2D
inherits from	SoView2DExtension
keywords	grouping, event, handling, evaluation, order

Purpose

The module SoView2DExtensionSeparator enables Extension Grouping.

It groups its child extensions and manages event consumption and drawing order for them. That way, a group of extensions can be treated like one extension and the implementation of more complicated event consumption strategies is possible.

Details

There are two possible locations for SoView2DExtensionSeparator modules:

• To the left of a SoView2D: this SoView2D will be called parent SoView2D

• As child of another SoView2DExtensionSeparator: this SoView2DExtensionSeparator will be called parent Separator

There is always a SoView2D that triggers the drawing of an extension, otherwise the extension would do nothing. This SoView2D will be referred to as calling SoView2D.

The module fills its own extension list for drawing and event evaluation (find out more about extension lists).

The SoView2DExtensionSeparator is contained in the extension list of its parent SoView2D or separator, but all children of the SoView2DExtensionSeparator are invisible to the parent (SoView2D or Separator), e.g., they are not in the parent’s extension list. Their drawing and event evaluation methods will only be triggered by the SoView2DExtensionSeparator.

Windows

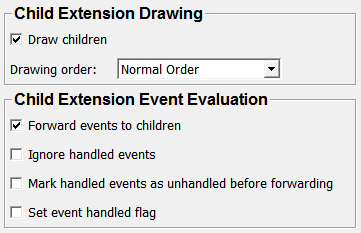

Default Panel

Input Fields

child

name: child, type: SoNode

Output Fields

self

name: self, type: SoNode

Parameter Fields

Field Index

alt: Enum	Draw children: Bool	needsValidVoxel: Bool
button1: Enum	Drawing order: Enum	renderOnSlab: Bool
button2: Enum	drawingOrderIsReversed: Bool	selectionTolerance: Float
button3: Enum	editingOn: Bool	Set event handled flag: Bool
clipToSlice: Bool	fixZOn: Bool	shift: Enum
color: Color	Forward events to children: Bool	updateOrder: Trigger
control: Enum	Ignore handled events: Bool	wantsAllEvents: Bool
createNewMode: Bool	interactionProviderID: String	wantsKeyEvents: Bool
createNewModeRequest: Trigger	Mark handled events as unhandled before forwarding: Bool	wantsMouseWheelEvents: Bool
cursorShape: Enum	maskValid: Bool

Visible Fields

Draw children

name: drawingOn, type: Bool, default: TRUE

If checked, children will be rendered.

see also SoView2DExtension.drawingOn

Set event handled flag

name: setEventHandled, type: Bool, default: FALSE

If checked, the events handled by the subgraph will be flagged as being handled.

see also SoView2DExtension.setEventHandled

Ignore handled events

name: ignoreHandledEvents, type: Bool, default: FALSE

If checked, events that are flagged as being handled are ignored by the subgraph.

see also SoView2DExtension.ignoreHandledEvents

Drawing order

name: drawingOrder, type: Enum, default: NORMAL_ORDER

Defines the drawing order that is used if the drawing order of the parent is not used.

Values:

Title	Name	Description
​Normal Order	​NORMAL_ORDER	​Left to right.
​Reversed Order	​REVERSED_ORDER	​Right to left.
​Soview2d Order	​SOVIEW2D_ORDER	​Same order as the calling SoView2D.
​Parent Normal Order	​PARENT_NORMAL_ORDER	​If there is a parent SoView2DExtensionSeparator, then use its Drawing Order, else render from left to right.
​Parent Reversed Order	​PARENT_REVERSED_ORDER	​If there is a parent SoView2DExtensionSeparator, then use its Drawing Order, else render from right to left.
​Parent Soview2d Order	​PARENT_SOVIEW2D_ORDER	​If there is a parent SoView2DExtensionSeparator, then use its Drawing Order, else render in the same order as the calling SoView2D.

Forward events to children

name: forwardEvents, type: Bool, default: TRUE

If checked, incoming events are forwarded to child extensions.

Mark handled events as unhandled before forwarding

name: markAsUnhandled, type: Bool, default: FALSE

If checked, events flagged as being handled are unflagged as again before they are passed to the children.

Hidden Fields

interactionProviderID

name: interactionProviderID, type: String

see SoView2DExtension.interactionProviderID

editingOn

name: editingOn, type: Bool, default: FALSE

see SoView2DExtension.editingOn

maskValid

name: maskValid, type: Bool, persistent: no

fixZOn

name: fixZOn, type: Bool, default: TRUE

color

name: color, type: Color, default: 1 1 1

see SoView2DExtension.color

selectionTolerance

name: selectionTolerance, type: Float, default: 4

needsValidVoxel

name: needsValidVoxel, type: Bool, default: FALSE

see SoView2DExtension.needsValidVoxel

button1

name: button1, type: Enum, default: IGNORED

see SoView2DExtension.button1

button2

name: button2, type: Enum, default: IGNORED

see SoView2DExtension.button2

button3

name: button3, type: Enum, default: IGNORED

see SoView2DExtension.button3

shift

name: shift, type: Enum, default: IGNORED

see SoView2DExtension.shift

control

name: control, type: Enum, default: IGNORED

see SoView2DExtension.control

alt

name: alt, type: Enum, default: IGNORED

see SoView2DExtension.alt

wantsAllEvents

name: wantsAllEvents, type: Bool, default: FALSE

wantsKeyEvents

name: wantsKeyEvents, type: Bool, default: FALSE

wantsMouseWheelEvents

name: wantsMouseWheelEvents, type: Bool, default: FALSE

createNewMode

name: createNewMode, type: Bool, default: FALSE

see SoView2DExtension.createNewMode

createNewModeRequest

name: createNewModeRequest, type: Trigger

see SoView2DExtension.createNewModeRequest

renderOnSlab

name: renderOnSlab, type: Bool, default: FALSE

clipToSlice

name: clipToSlice, type: Bool, default: FALSE

cursorShape

name: cursorShape, type: Enum, default: UNDEFINED_CURSOR

see SoView2DExtension.cursorShape

drawingOrderIsReversed

name: drawingOrderIsReversed, type: Bool, default: FALSE

updateOrder

name: updateOrder, type: Trigger
