SoView2DDeformationGridView

InventorModule

genre	View2D
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	SoView2D
definition	view2d.def
see also	SoView2D
inherits from	SoView2DExtension
keywords	extension, vector, field, display, flow

Purpose

The module SoView2DDeformationGridView visualizes vector data in images by superimposing a deformation grid.

Details

The unit of the grid point size is percent of visible voxel size.

Windows

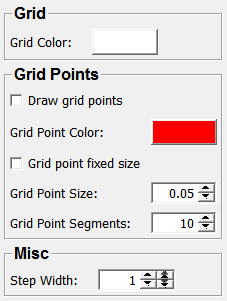

Default Panel

Output Fields

self

name: self, type: SoNode

Parameter Fields

Field Index

alt: Enum	drawingOn: Bool	needsValidVoxel: Bool
button1: Enum	editingOn: Bool	renderOnSlab: Bool
button2: Enum	fixZOn: Bool	selectionTolerance: Float
button3: Enum	Grid Color: Color	setEventHandled: Bool
clipToSlice: Bool	Grid Point Color: Color	shift: Enum
color: Color	Grid point fixed size: Bool	Step Width: Integer
control: Enum	Grid Point Segments: Integer	wantsAllEvents: Bool
createNewMode: Bool	Grid Point Size: Float	wantsKeyEvents: Bool
createNewModeRequest: Trigger	ignoreHandledEvents: Bool	wantsMouseWheelEvents: Bool
cursorShape: Enum	interactionProviderID: String
Draw Grid Points: Bool	maskValid: Bool

Visible Fields

Step Width

name: stepWidth, type: Integer, default: 1, minimum: 1

Sets a step distance between shown grid lines.

Grid Color

name: gridColor, type: Color, default: 1 1 1

Sets the color of the grid lines.

Grid Point Color

name: gridPointColor, type: Color, default: 1 0 0

Sets the color of (optional) grid points.

Draw Grid Points

name: drawGridPoints, type: Bool, default: FALSE

If checked, grid points are rendered.

Grid Point Segments

name: gridPointSegments, type: Integer, default: 10

Sets the number of grid points segments.

Grid point fixed size

name: gridPointAbsoluteSize, type: Bool, default: FALSE

If checked, the grid point size is fixed.

Otherwise, the size is scaled.

Grid Point Size

name: gridPointSize, type: Float, default: 0.050000001

Sets the grid point size.

Hidden Fields

interactionProviderID

name: interactionProviderID, type: String

see SoView2DExtension.interactionProviderID

drawingOn

name: drawingOn, type: Bool, default: TRUE

see SoView2DExtension.drawingOn

editingOn

name: editingOn, type: Bool, default: TRUE

see SoView2DExtension.editingOn

maskValid

name: maskValid, type: Bool, persistent: no

fixZOn

name: fixZOn, type: Bool, default: TRUE

color

name: color, type: Color, default: 1 1 1

see SoView2DExtension.color

selectionTolerance

name: selectionTolerance, type: Float, default: 4

needsValidVoxel

name: needsValidVoxel, type: Bool, default: TRUE

see SoView2DExtension.needsValidVoxel

button1

name: button1, type: Enum, default: IGNORED

see SoView2DExtension.button1

button2

name: button2, type: Enum, default: IGNORED

see SoView2DExtension.button2

button3

name: button3, type: Enum, default: IGNORED

see SoView2DExtension.button3

shift

name: shift, type: Enum, default: IGNORED

see SoView2DExtension.shift

control

name: control, type: Enum, default: IGNORED

see SoView2DExtension.control

alt

name: alt, type: Enum, default: IGNORED

see SoView2DExtension.alt

wantsAllEvents

name: wantsAllEvents, type: Bool, default: FALSE

wantsKeyEvents

name: wantsKeyEvents, type: Bool, default: FALSE

wantsMouseWheelEvents

name: wantsMouseWheelEvents, type: Bool, default: FALSE

setEventHandled

name: setEventHandled, type: Bool, default: FALSE

see SoView2DExtension.setEventHandled

ignoreHandledEvents

name: ignoreHandledEvents, type: Bool, default: FALSE

see SoView2DExtension.ignoreHandledEvents

createNewMode

name: createNewMode, type: Bool, default: FALSE

see SoView2DExtension.createNewMode

createNewModeRequest

name: createNewModeRequest, type: Trigger

see SoView2DExtension.createNewModeRequest

renderOnSlab

name: renderOnSlab, type: Bool, default: FALSE

clipToSlice

name: clipToSlice, type: Bool, default: FALSE

cursorShape

name: cursorShape, type: Enum, default: UNDEFINED_CURSOR

see SoView2DExtension.cursorShape
