SoPlaneSync

InventorModule

genre	Plane
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	SoUtils
definition	utils.def
see also	SoCalculator, SoClipBox, ComposePlane, CalculateAngle
keywords	synchronized, distance, parallel

Purpose

The module SoPlaneSync computes a plane on base of a rotation, translation, and a distance to a given plane.

Windows

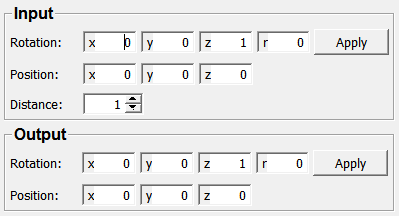

Default Panel

Output Fields

self

name: self, type: SoNode

Parameter Fields

Field Index

Distance: Float

Position (translation): Vector3

Position (translationOutput): Vector3

Rotation (rotation): Rotation

Rotation (rotationOutput): Rotation

Visible Fields

Rotation (rotation)

name: rotation, type: Rotation, default: 0 0 1 0

Sets the input rotation.

Position (translation)

name: translation, type: Vector3, default: 0 0 0

Sets the input translation.

Distance

name: distanceFactor, type: Float, default: 1, minimum: -50, maximum: 50

Sets the distance of the output plane to the input plane.

Position (translationOutput)

name: translationOutput, type: Vector3, persistent: no

Shows the output translation.

Rotation (rotationOutput)

name: rotationOutput, type: Rotation, persistent: no

Shows the output rotation.
