SoGVRTransformedVolumeSettings

InventorModule
genre VolRendExtensions
author MeVis Medical Solutions AG
package MeVisLab/Standard
dll SoGVR
definition soGVR.def

Purpose

The SoGVRTransformedVolumeSettings module allows for changing the settings of a SoGVRTransformedVolume that appears in the scene in front of this module. This allows for rendering the same transformed volume differently in different viewers.

See SoGVRTransformedVolume for parameter details.

Tips

This module is only useful if you want to have multiple scenes or SoGVRVolumeRenderer renderers with the same transformed volume but different transformed volume settings.

Windows

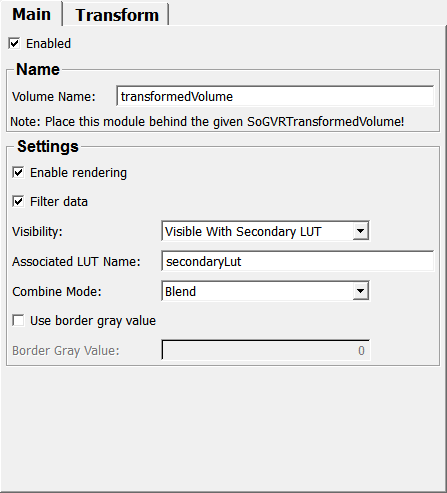

Default Panel

../../../Modules/Inventor/SoGVR/mhelp/Images/Screenshots/SoGVRTransformedVolumeSettings._default.png

Input Fields


name: image, type: Image

Input image is used for world coordinates only.

Output Fields

self

name: self, type: SoNode

A node that must be put in front of the SoGVRVolumeRenderer

Parameter Fields

See SoGVRTransformedVolume for parameter details.
