SoGVRTagVolume

InventorModule
genre VolRendExtensions
author MeVis Medical Solutions AG
package MeVisLab/Standard
dll SoGVR
definition soGVR.def
see also SoGVRVolumeRenderer

Purpose

The SoGVRTagVolume module allows to set a tag volume that can be used by the GVR. The idea of the tag volume to supply an additional tag value per volume voxel and to select a different Lookuptable for each tag. In addition you can also select a different shader for each tag, see SoGVRTagObjectStyle to supply the shader settings. Tagged volume rendering is well suited to show segmented data by coloring the segmented data via different LUTs.

Usage

The input image must have the same orientation and voxel size as the original image, but it may be a sub-image as e.g. generated by a BoundingBox module. This allows to trim a segmentation to the required bounding box and the GVR will only need to load that bounding box instead of a tag volume with a lot of empty space. Currently only 8bit data is supported, other datatypes will be converted to unsigned int8. The tag data is NOT scaled up to the 8bit range (0-255), so a tag volume with min/max range (0-n) will still be loaded as tag values from 0-n.

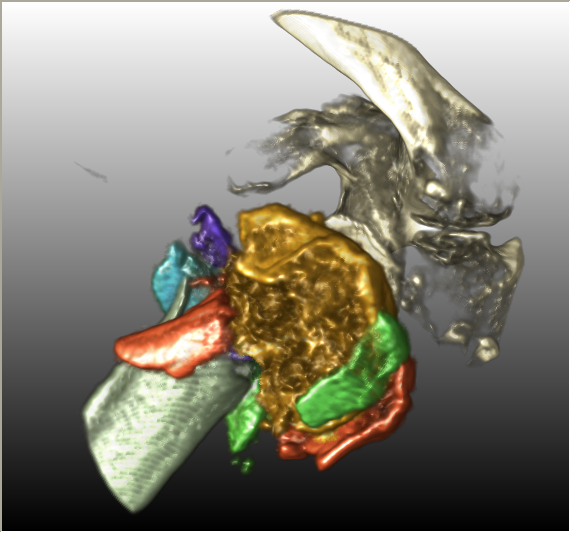

Example rendering:

../../../Modules/Inventor/SoGVR/mhelp/Images/TagVolume.png

Tips

Typically you need to supply a 2D LUT as well, so that the different tag values lead to different visual objects. You can supply a 2D LUT either via the SoLUTEditor2D, LUTBlend, LUTConcat modules.

Windows

Default Panel

../../../Modules/Inventor/SoGVR/mhelp/Images/Screenshots/SoGVRTagVolume._default.png

Input Fields


name: image, type: Image

ML image to use as tag volume.

inVolume

name: inVolume, type: GVRVolume(MLBase)

GVRVolume to use as tag volume.

Output Fields

self

name: self, type: SoNode

a node that should be put in front of the SoGVRVolumeRenderer

Parameter Fields

Visible Fields

Enabled

name: enabled, type: Bool, default: TRUE

Defines if the tag volume is used/loaded.

Filter Tag Data

name: filterTagData, type: Bool, default: FALSE

Defines if the tag data is trilinear interpolated. For tag volumes with more than two tags, this should be disabled, since the interpolation will otherwise create intermediate tag values. When only two tag values are present or when the 2D lut is continous in Y, this setting leads to nicely interpolated results.

Scale tag data to LUT height

name: scaleTagDataToLutHeight, type: Bool, default: FALSE
