SoGVRTagObjectStyle

InventorModule

genre	VolRendExtensions
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	SoGVR
definition	soGVR.def
see also	SoGVRVolumeRenderer
keywords	volume, rendering, illumination, shading

Purpose

The SoGVRTagObjectStyle module allows for setting different shader settings for each tag ID. The tag values are given by a SoGVRTagVolume or by a SoGVRMaskVolume, which is set to modify the tag values. This is a rather advanced extension that extends the Illuminated mode of the module SoGVRVolumeRenderer.

Due to the hardware restrictions of the current graphics hardware, only four weights can be set per tag. These four weights have been selected so that the user can select useful shader combinations.

Usage

Light1, Light2, Tone Shading, and Enhancement properties are defined in the SoGVRVolumeRenderer module or in a SoGVRIlluminationSettings module. Ensure that you also enable the used lights and effects in SoGVRVolumeRenderer/SoGVRIlluminationSettings, e.g., enabling Light1 for an object in the module without enabling Light1 in the SoGVRVolumeRenderer module will have no effect. Since there are only four weights, Light3 and Silhouette/Enhancement cannot be set differently per object.

Restrictions: Per-object shading is slower than just having one shader.

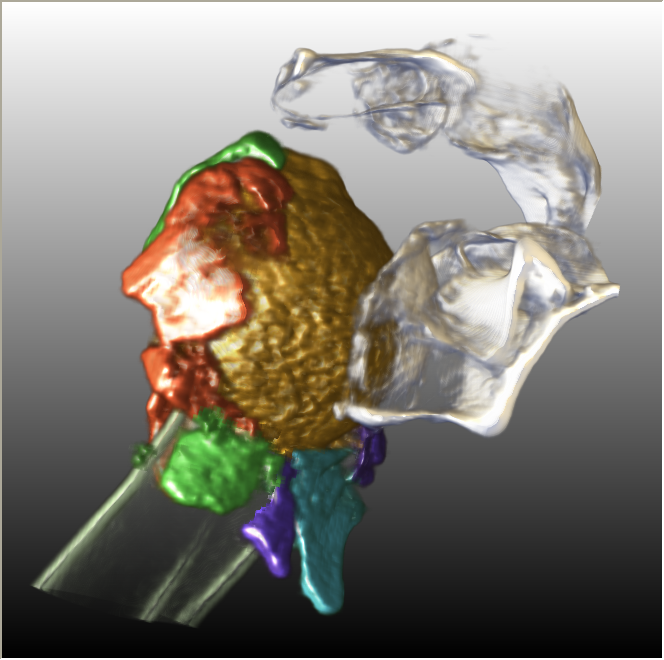

Example rendering:

Windows

Default Panel

Output Fields

self

name: self, type: SoNode

A node that must be put in front of the SoGVRVolumeRenderer

Parameter Fields

Field Index

Current Object: Integer	Num Objects: Integer
currentObjectMax: Integer	perObjectParameters: Vector4List
Effect: Enum	Tone shading: Float
Enabled: Bool	Value: Integer
Enhancement: Float
Interpolate Parameters: Bool
Light 1: Float
Light 2: Float

Visible Fields

Enabled

name: enabled, type: Bool, default: TRUE

If checked, the per-tag rendering is enabled.

Interpolate Parameters

name: interpolateParameters, type: Bool, default: FALSE

If checked, linear interpolation of the tag effects is enabled.

This only works well if there are only two tag values; otherwise, the interpolation will create intermediate tags.

Num Objects

name: numObjects, type: Integer, default: 32, minimum: 0, maximum: 256

Sets the number of objects/tags that have individual shader settings.

Current Object

name: currentObject, type: Integer, default: 0, minimum: 0, maximum: :field:`currentObjectMax`

Sets the currently selected object/tag.

Light 1

name: parameter1, type: Float, default: 0, minimum: 0, maximum: 1

Sets the intensity of Light1 for the current tag.

Light 2

name: parameter2, type: Float, default: 0, minimum: 0, maximum: 1

Sets the intensity of Light2 for the current tag.

Tone shading

name: parameter3, type: Float, default: 0, minimum: 0, maximum: 1

Sets the intensity of the tone shading for the current tag.

Enhancement

name: parameter4, type: Float, default: 0, minimum: 0, maximum: 1

Sets the intensity of the enhancement for the current tag.

Value

name: clipPlaneEffectValue, type: Integer, default: 0

Sets the tag value that the clip plane effect uses.

Effect

name: clipPlaneEffect, type: Enum, default: CLIP_EFFECT_OFF

Defines how the tags are modified depending on the voxel position in relation to the clip plane.

Values:

Title	Name	Description
​Off	​CLIP_EFFECT_OFF	​Effect is off.
​Add Offset	​CLIP_EFFECT_ADD_OFFSET	​The Value is added to the tag value when the voxel is in front of the clip plane.
​Set To Tag	​CLIP_EFFECT_SET_TO_TAG	​The Value is set to the tag value when the voxel is in front of the clip plane.

Hidden Fields

perObjectParameters

name: perObjectParameters, type: Vector4List, default: 0 0 0 0

currentObjectMax

name: currentObjectMax, type: Integer, default: 31
