SoCSODrawOnSurface¶

InventorModule¶

genre	`SoCSO`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`SoCSO`
definition	SoCSO.def
see also	`SoView2DCSOExtensibleEditor`
keywords	`render`, `contour`, `WEM`, `GVR`, `interact`

Purpose¶

The module SoCSODrawOnSurface allows for interactive drawing of CSOs on 3D surfaces.

Windows¶

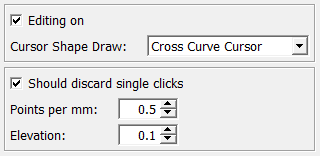

Default Panel¶

../../../Modules/Inventor/SoCSO/mhelp/Images/Screenshots/SoCSODrawOnSurface._default.png

Input Fields¶

inCSOList¶

name: inCSOList, type: CSOList(MLBase)¶: For accessing this object via scripting, see the Scripting Reference: MLCSOListWrapper.

Output Fields¶

self¶

name: self, type: SoNode¶

Parameter Fields¶

Field Index¶

Cursor Shape Draw: Enum

Editing On: Bool

Elevation: Float

interactionProviderID: String

isEditing: Bool

modifierKey: Enum

Points per mm: Float

Should Discard Single Clicks: Bool

Visible Fields¶

Cursor Shape Draw¶

name: cursorShapeDraw, type: Enum, default: CROSS_CURVE_CURSOR¶: Defines the cursor shape.

Values:

Title	Name
Undefined Cursor	UNDEFINED_CURSOR
Default Cursor	DEFAULT_CURSOR
Forbidden Cursor	FORBIDDEN_CURSOR
Pointing Hand Cursor	POINTING_HAND_CURSOR
Open Hand Cursor	OPEN_HAND_CURSOR
Closed Hand Cursor	CLOSED_HAND_CURSOR
Move All Cursor	MOVE_ALL_CURSOR
Move Hori Cursor	MOVE_HORI_CURSOR
Move Vert Cursor	MOVE_VERT_CURSOR
Move Fdiag Cursor	MOVE_FDIAG_CURSOR
Move Bdiag Cursor	MOVE_BDIAG_CURSOR
Move Inout Cursor	MOVE_INOUT_CURSOR
Rotate X Cursor	ROTATE_X_CURSOR
Rotate Y Cursor	ROTATE_Y_CURSOR
Rotate Z Cursor	ROTATE_Z_CURSOR
Rotate Xy Cursor	ROTATE_XY_CURSOR
Zoom Cursor	ZOOM_CURSOR
Zoom In Cursor	ZOOM_IN_CURSOR
Zoom Out Cursor	ZOOM_OUT_CURSOR
Cross Cursor	CROSS_CURSOR
Cross Plus Cursor	CROSS_PLUS_CURSOR
Cross Minus Cursor	CROSS_MINUS_CURSOR
Cross Move Cursor	CROSS_MOVE_CURSOR
Cross Rotate Cursor	CROSS_ROTATE_CURSOR
Cross Rect Cursor	CROSS_RECT_CURSOR
Cross Oval Cursor	CROSS_OVAL_CURSOR
Cross Vector Cursor	CROSS_VECTOR_CURSOR
Cross Freeform Cursor	CROSS_FREEFORM_CURSOR
Cross Point Cursor	CROSS_POINT_CURSOR
Cross Line Cursor	CROSS_LINE_CURSOR
Cross Curve Cursor	CROSS_CURVE_CURSOR
Cross Polyline Cursor	CROSS_POLYLINE_CURSOR
Cross Polygon Cursor	CROSS_POLYGON_CURSOR
Cross Fill Cursor	CROSS_FILL_CURSOR
Cross Link Cursor	CROSS_LINK_CURSOR
Cross 0 Cursor	CROSS_0_CURSOR
Cross 1 Cursor	CROSS_1_CURSOR
Cross 2 Cursor	CROSS_2_CURSOR
Cross 3 Cursor	CROSS_3_CURSOR
Cross 4 Cursor	CROSS_4_CURSOR
Cross 5 Cursor	CROSS_5_CURSOR
Cross 6 Cursor	CROSS_6_CURSOR
Cross 7 Cursor	CROSS_7_CURSOR
Cross 8 Cursor	CROSS_8_CURSOR
Cross 9 Cursor	CROSS_9_CURSOR
Lut Cursor	LUT_CURSOR
Lut 1 Cursor	LUT_1_CURSOR
Lut 2 Cursor	LUT_2_CURSOR
Lut 3 Cursor	LUT_3_CURSOR
Slicing Cursor	SLICING_CURSOR
Other Cursor 0	OTHER_CURSOR_0
Other Cursor 1	OTHER_CURSOR_1
Other Cursor 2	OTHER_CURSOR_2
Other Cursor 3	OTHER_CURSOR_3
Other Cursor 4	OTHER_CURSOR_4
Other Cursor 5	OTHER_CURSOR_5
Other Cursor 6	OTHER_CURSOR_6
Other Cursor 7	OTHER_CURSOR_7
Other Cursor 8	OTHER_CURSOR_8
Other Cursor 9	OTHER_CURSOR_9
Other Cursor 10	OTHER_CURSOR_10
Other Cursor 11	OTHER_CURSOR_11
Other Cursor 12	OTHER_CURSOR_12
Other Cursor 13	OTHER_CURSOR_13
Other Cursor 14	OTHER_CURSOR_14
Other Cursor 15	OTHER_CURSOR_15
Other Cursor 16	OTHER_CURSOR_16
Other Cursor 17	OTHER_CURSOR_17
Other Cursor 18	OTHER_CURSOR_18
Other Cursor 19	OTHER_CURSOR_19
Other Cursor 20	OTHER_CURSOR_20
Other Cursor 21	OTHER_CURSOR_21
Other Cursor 22	OTHER_CURSOR_22
Other Cursor 23	OTHER_CURSOR_23
Other Cursor 24	OTHER_CURSOR_24
Other Cursor 25	OTHER_CURSOR_25
Other Cursor 26	OTHER_CURSOR_26
Other Cursor 27	OTHER_CURSOR_27
Other Cursor 28	OTHER_CURSOR_28
Other Cursor 29	OTHER_CURSOR_29
Other Cursor 30	OTHER_CURSOR_30
Other Cursor 31	OTHER_CURSOR_31
Other Cursor 32	OTHER_CURSOR_32
Other Cursor 33	OTHER_CURSOR_33
Other Cursor 34	OTHER_CURSOR_34
Other Cursor 35	OTHER_CURSOR_35
Other Cursor 36	OTHER_CURSOR_36
Other Cursor 37	OTHER_CURSOR_37
Other Cursor 38	OTHER_CURSOR_38
Other Cursor 39	OTHER_CURSOR_39
Other Cursor 40	OTHER_CURSOR_40
Other Cursor 41	OTHER_CURSOR_41
Other Cursor 42	OTHER_CURSOR_42
Other Cursor 43	OTHER_CURSOR_43
Other Cursor 44	OTHER_CURSOR_44
Other Cursor 45	OTHER_CURSOR_45
Other Cursor 46	OTHER_CURSOR_46
Other Cursor 47	OTHER_CURSOR_47
Other Cursor 48	OTHER_CURSOR_48
Other Cursor 49	OTHER_CURSOR_49
Other Cursor 50	OTHER_CURSOR_50
Other Cursor 51	OTHER_CURSOR_51
Other Cursor 52	OTHER_CURSOR_52
Other Cursor 53	OTHER_CURSOR_53
Other Cursor 54	OTHER_CURSOR_54
Other Cursor 55	OTHER_CURSOR_55
Other Cursor 56	OTHER_CURSOR_56
Other Cursor 57	OTHER_CURSOR_57
Other Cursor 58	OTHER_CURSOR_58
Other Cursor 59	OTHER_CURSOR_59
Other Cursor 60	OTHER_CURSOR_60
Other Cursor 61	OTHER_CURSOR_61
Other Cursor 62	OTHER_CURSOR_62
Other Cursor 63	OTHER_CURSOR_63
Other Cursor 64	OTHER_CURSOR_64
Other Cursor 65	OTHER_CURSOR_65
Other Cursor 66	OTHER_CURSOR_66
Other Cursor 67	OTHER_CURSOR_67
Other Cursor 68	OTHER_CURSOR_68
Other Cursor 69	OTHER_CURSOR_69
Blank Cursor	BLANK_CURSOR

Editing On¶

name: editingOn, type: Bool, default: TRUE¶: If checked, the module allows drawing, undo, and redo.

Points per mm¶

name: pointsPerMM, type: Float, default: 0.5, minimum: 0.01, maximum: 10¶: Sets the number of generated path points per millimeter.

Elevation¶

name: elevation, type: Float, default: 0.1, minimum: 0¶: Sets an elevation distance by which the CSO path points are moved into the direction of the normal at the positions.

Should Discard Single Clicks¶

name: shouldDiscardSingleClicks, type: Bool, default: TRUE¶

If checked, single clicks (press and release without moving the mouse in between) are discarded.

Note that after pressing the mouse button, a CSO is created and added to the CSOList, which is then removed on releasing the mouse. The undo history of this brief visit is deleted.

Hidden Fields¶

interactionProviderID¶

name: interactionProviderID, type: String¶

isEditing¶

name: isEditing, type: Bool, default: FALSE¶

modifierKey¶

name: modifierKey, type: Enum, default: AllModifiersMask¶
