SettingsManager¶

MacroModule¶

genre	`Fields`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
definition	SettingsManager.def
see also	`MakeName`, `FieldIterator`
keywords	`load`, `save`, `network`

Purpose¶

The module SettingsManager loads/saves field values from/to a file or a settings string.

Usage¶

Set up the list of fields (Store Fields) to be managed (you may use drag-and-drop), and use Save/Load to save to / load from a file, or use Update/Restore to just save to / load from the Settings String if you want to care about persistency in a different way.

Details¶

Syntax in input text field:

Field1,
Field2,
...

Syntax in saved files:

Field1 = value1;
Field2 = value2;
...

The module offers a field separatorChar to set the separator character for the settings string.

Windows¶

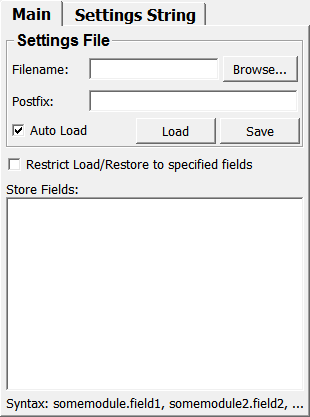

Default Panel¶

../../../Modules/Macros/Helpers/mhelp/Images/Screenshots/SettingsManager._default.png

Parameter Fields¶

Field Index¶

`Auto Load`: `Bool`	`Restrict Load/Restore to specified fields`: `Bool`
`Auto Restore`: `Bool`	`Save`: `Trigger`
`Filename`: `String`	`separatorChar`: `String`
`Load`: `Trigger`	`Settings String`: `String`
`Only Set If Changed`: `Bool`	`settingsLoaded`: `Trigger`
`Postfix`: `String`	`settingsNotFound`: `Trigger`
`Restore`: `Trigger`	`Store Fields`: `String`
`restoreDetectedNonExistentFields`: `Bool`	`Update`: `Trigger`

Visible Fields¶

Store Fields¶

name: storedFields, type: String¶

Sets the list of fields to be stored.

Syntax is:

moduleName1.fieldName1,
moduleName1.fieldName2,
moduleName2.fieldName1

Restrict Load/Restore to specified fields¶

name: restrictLoad, type: Bool, default: FALSE¶

If checked, the loading/restoring is restricted to the specified fields.

This makes a difference if the settings string contains a different set of fields than the ones listed in Store Fields.

Only Set If Changed¶

name: onlySetIfChanged, type: Bool, default: FALSE¶: If checked, field values are only restored if the string value of the field is different from the stored value.

Load¶

name: load, type: Trigger¶: When pressed, the persistency file is loaded.

Save¶

name: save, type: Trigger¶: When pressed, the persistency file is saved.

Auto Load¶

name: autoLoad, type: Bool, default: TRUE¶: If checked, the module automatically loads the settings file.

Filename¶

name: filename, type: String¶: Sets the filename of the file to save to/load from.

Postfix¶

name: postfix, type: String, deprecated name: appendName¶: Sets an additional filename extension.

Settings String¶

name: settingsString, type: String¶: Shows and sets the field value string.

Update¶

name: update, type: Trigger¶: When pressed, the value list in Settings String is updated.

Restore¶

name: restore, type: Trigger¶: When pressed, the value list in Settings String is restored into the original fields.

Auto Restore¶

name: autoRestore, type: Bool, default: FALSE¶: If checked, the value list is automatically restored (whenever the Settings String changes).

Hidden Fields¶

settingsLoaded¶

name: settingsLoaded, type: Trigger¶

settingsNotFound¶

name: settingsNotFound, type: Trigger¶

separatorChar¶

name: separatorChar, type: String, default: ;¶

Sets a separator character for splitting the settings string.

If the field is left empty, a semi-colon is assumed as a separator character, otherwise the first set character of this string is used.

restoreDetectedNonExistentFields¶

name: restoreDetectedNonExistentFields, type: Bool, persistent: no¶
