RemoteRenderingTestClient

MacroModule

genre	Remote
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
definition	MLRemoteRendering.def
see also	RemoteRenderingEventRecorder, RemoteRenderingEventReplay

Purpose

The module RemoteRenderingTestClient supports designing interaction tests with artificial events (in contrast to events generated with RemoteRenderingEventRecorder). Since it can be challenging to get the event coordinates correct, this module allows for setting a fixed rendering size and checking positions with the mouse.

Usage

Select the rendering size that you also use in your tests, then move the mouse over the rendering to obtain the exact pixel position of any displayed element.

Windows

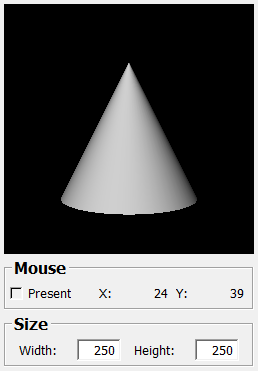

Default Panel

Input Fields

input

name: input, type: RemoteRendering(MLBase)

Connect this to a RemoteRendering (or RemotePanelRendering) module.

For accessing this object via scripting, see the Scripting Reference: MLRemoteRenderingWrapper.

Parameter Fields

Field Index

Height: Integer

Present: Bool

Width: Integer

X: Integer

Y: Integer

Visible Fields

Width

name: width, type: Integer, default: 200

Sets the rendering width.

Height

name: height, type: Integer, default: 200

Sets the rendering height.

X

name: mouseX, type: Integer, persistent: no

Shows the current horizontal mouse cursor position (relative to the rendering).

Y

name: mouseY, type: Integer, persistent: no

Shows the current vertical mouse cursor position (relative to the rendering).

Present

name: mousePresent, type: Bool, persistent: no

Shows whether the mouse is over the rendering.
