ROISelect¶

MacroModule¶

genre	`Subimage`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
definition	viewers.def
see also	`View2D`, `OrthoView2D`
keywords	`voi`, `region`, `volume`, `interest`, `subimage`, `timepoints`

Purpose¶

The module ROISelect selects a cuboid sub volume (VOI) from an input image.

Windows¶

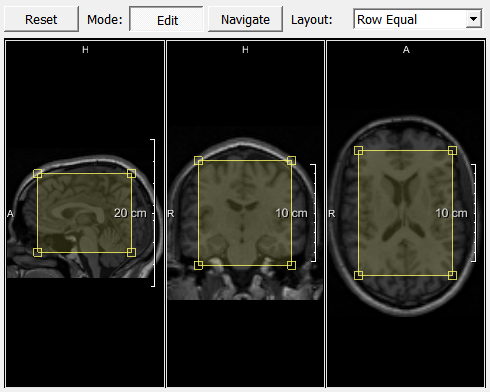

Default Panel¶

../../../Modules/Macros/Geometry/mhelp/Images/Screenshots/ROISelect._default.png

Input Fields¶

inImage¶

name: inImage, type: Image, deprecated name: input¶

Output Fields¶

outImage¶

name: outImage, type: Image, deprecated name: output¶

outNode¶

name: outNode, type: SoNode, deprecated name: self¶

Parameter Fields¶

Field Index¶

`All`: `Bool`	`currentPos`: `Vector3`	`Layout`: `Enum`
`allowDraw`: `Bool`	`currentPosColor`: `Color`	`limit`: `Float`
`annotationColor`: `Color`	`currentPosCtrlListen`: `Enum`	`Reset (resetAll)`: `Trigger`
`annotationOn`: `Bool`	`currentPosOn`: `Enum`	`reset (reset)`: `Bool`
`annotFontSize`: `Enum`	`currentPosShiftListen`: `Enum`	`restriction`: `Enum`
`annotHorizontalRuler`: `Bool`	`Edit Mode`: `Enum`	`startVoxelX`: `Double`
`annotShowAnnot`: `Enum`	`editModeFieldDisable`: `Bool`	`startVoxelY`: `Double`
`annotShowOrientation`: `Enum`	`endVoxelX`: `Double`	`startVoxelZ`: `Double`
`annotVerticalRuler`: `Bool`	`endVoxelY`: `Double`	`startWorldPos`: `Vector3`
`borderColor`: `Color`	`endVoxelZ`: `Double`	`Timepoint`: `Integer`
`boxBlend`: `Float`	`endWorldPos`: `Vector3`	`unit`: `String`
`boxColor`: `Color`	`extraViewLowerLeft`: `Vector2`	`useGlobalInputImage`: `Bool`
`boxCtrlListen`: `Enum`	`extraViewUpperRight`: `Vector2`	`usePreview`: `Bool`
`boxOn`: `Bool`	`grayCenter`: `Double`	`worldPosition`: `Vector3`
`boxShiftListen`: `Enum`	`grayWidth`: `Double`

Visible Fields¶

Edit Mode¶

name: editMode, type: Enum, default: Edit¶: Defines the edit / navigation mode.

Values:

Title	Name
Edit	Edit
Navigate	Navigate

All¶

name: allTimepoints, type: Bool, default: TRUE¶: If checked, the VOI is selected over all available time points.

Timepoint¶

name: timepoint, type: Integer, default: 0, minimum: 0, maximum: view.maxTimePoint¶: Sets the current time point.

Reset¶

name: resetAll, type: Trigger¶: If pressed, the center slice is shown in all viewers.

Layout¶

name: layout, type: Enum, default: LAYOUT_ROW_EQUAL¶: Defines the layout of the viewer(s).

Values:

Title	Name
Axial	LAYOUT_AXIAL
Sagittal	LAYOUT_SAGITTAL
Coronal	LAYOUT_CORONAL
Cube	LAYOUT_CUBE
Cube Equal	LAYOUT_CUBE_EQUAL
Cube Customized	LAYOUT_CUBE_CUSTOMIZED
Row	LAYOUT_ROW
Row Equal	LAYOUT_ROW_EQUAL
Row Axialextra	LAYOUT_ROW_AXIALEXTRA
Column	LAYOUT_COLUMN
Column Equal	LAYOUT_COLUMN_EQUAL
Hidden	LAYOUT_HIDDEN

Hidden Fields¶

currentPosOn¶

name: currentPosOn, type: Enum, default: Navigate¶

Values:

Title	Name
Navigate	Navigate
Always	Always
Off	Off

editModeFieldDisable¶

name: editModeFieldDisable, type: Bool, default: FALSE¶

usePreview¶

name: usePreview, type: Bool, default: FALSE¶

unit¶

name: unit, type: String¶

startWorldPos¶

name: startWorldPos, type: Vector3, default: -0.5 -0.5 -0.5¶

startVoxelX¶

name: startVoxelX, type: Double, default: -1¶

startVoxelY¶

name: startVoxelY, type: Double, default: -1¶

startVoxelZ¶

name: startVoxelZ, type: Double, default: -1¶

endWorldPos¶

name: endWorldPos, type: Vector3, default: -0.5 -0.5 -0.5¶

endVoxelX¶

name: endVoxelX, type: Double, default: -1¶

endVoxelY¶

name: endVoxelY, type: Double, default: -1¶

endVoxelZ¶

name: endVoxelZ, type: Double, default: -1¶

boxOn¶

name: boxOn, type: Bool, default: TRUE¶

boxShiftListen¶

name: boxShiftListen, type: Enum, default: RELEASED¶

Values:

Title	Name
Pressed	PRESSED
Released	RELEASED
Ignored	IGNORED

boxCtrlListen¶

name: boxCtrlListen, type: Enum, default: RELEASED¶

Values:

Title	Name
Pressed	PRESSED
Released	RELEASED
Ignored	IGNORED

boxBlend¶

name: boxBlend, type: Float, default: 0.14, minimum: 0, maximum: 1¶

boxColor¶

name: boxColor, type: Color, default: 1 0.979525029659271 0.38740399479866¶

allowDraw¶

name: allowDraw, type: Bool, default: TRUE¶

reset¶

name: reset, type: Bool, default: TRUE¶

currentPos¶

name: currentPos, type: Vector3, default: 0 0 0¶

currentPosShiftListen¶

name: currentPosShiftListen, type: Enum, default: PRESSED¶

Values:

Title	Name
Pressed	PRESSED
Released	RELEASED
Ignored	IGNORED

currentPosCtrlListen¶

name: currentPosCtrlListen, type: Enum, default: RELEASED¶

Values:

Title	Name
Pressed	PRESSED
Released	RELEASED
Ignored	IGNORED

currentPosColor¶

name: currentPosColor, type: Color, default: 1 1 1¶

worldPosition¶

name: worldPosition, type: Vector3, default: 0 0 0¶

useGlobalInputImage¶

name: useGlobalInputImage, type: Bool, default: TRUE¶

extraViewLowerLeft¶

name: extraViewLowerLeft, type: Vector2, persistent: no¶

extraViewUpperRight¶

name: extraViewUpperRight, type: Vector2, persistent: no¶

restriction¶

name: restriction, type: Enum, default: MaxMBytesIsotropic¶

Values:

Title	Name	Deprecated Name
Max Voxels Per Dim	MaxVoxelsPerDim	MAX_VOXELS_PER_DIM
Max MBytes Isotropic	MaxMBytesIsotropic	MAX_MBYTES_ISOTROPIC
Max MBytes Cubic	MaxMBytesCubic	MAX_MBYTES_CUBIC
Max MBytes Uniform	MaxMBytesUniform	MAX_MBYTES_UNIFORM
Min Voxel Dist	MinVoxelDist	MIN_VOXEL_DIST

limit¶

name: limit, type: Float, default: 10¶

grayWidth¶

name: grayWidth, type: Double, default: 1, deprecated name: greyWidth¶

grayCenter¶

name: grayCenter, type: Double, default: 0.5, deprecated name: greyCenter¶

annotationColor¶

name: annotationColor, type: Color, default: 0.9 0.9 0.9¶

borderColor¶

name: borderColor, type: Color, default: 0.9 0.9 0.9¶

annotationOn¶

name: annotationOn, type: Bool, default: TRUE¶

annotShowAnnot¶

name: annotShowAnnot, type: Enum, default: ANNO_SHOW_HIDE¶

Values:

Title	Name	Deprecated Name
Hide	ANNO_SHOW_HIDE	HIDE_ANNOTATION
Short	ANNO_SHOW_SHORT	SHORT_ANNOTATION
Detailed	ANNO_SHOW_DETAILED	DETAILED_ANNOTATION

annotFontSize¶

name: annotFontSize, type: Enum, default: ANNO_SIZE_AUTO¶

Values:

Title	Name	Deprecated Name
Auto	ANNO_SIZE_AUTO	AUTO_SIZE_ANNOTATION
Small	ANNO_SIZE_SMALL	SMALL_ANNOTATION
Medium	ANNO_SIZE_MEDIUM	MEDIUM_ANNOTATION
Large	ANNO_SIZE_LARGE	LARGE_ANNOTATION
User	ANNO_SIZE_USER

annotShowOrientation¶

name: annotShowOrientation, type: Enum, default: ANNO_ORIENTATION_SIZE_WEIGHTED¶

Values:

Title	Name	Deprecated Name
Off	ANNO_ORIENTATION_OFF	FALSE
Size Fixed	ANNO_ORIENTATION_SIZE_FIXED
Size Weighted	ANNO_ORIENTATION_SIZE_WEIGHTED	TRUE

annotVerticalRuler¶

name: annotVerticalRuler, type: Bool, default: TRUE¶

annotHorizontalRuler¶

name: annotHorizontalRuler, type: Bool, default: FALSE¶
