MLImageFormatSave¶

MLModule¶

genre	`MLImageFormat`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`MLImageFormat`
definition	MLImageFormat.def
see also	`MLImageFormatInfo`, `MLImageFormatLoad`, `MLImageFormatFileCache`, `ImageSave`, `ImageLoad`, `LocalImage`, `BitImageLoad`, `BitImageSave`, `LocalPath`
keywords	`load`, `store`, `read`, `write`, `file`, `cache`, `storage`, `disc`, `disk`, `import`, `export`, `io`, `lzf`, `lzw`, `lzma`, `bzip2`, `compressor`, `compression`, `tag`

Purpose¶

The module MLImageFormatSave saves an image output of any ML module as a file including user defined information and ML image properties.

Depending on the available compression modes, the image can be is stored compressed or uncompressed.

See also general documentation about the MLImageFormat, MLDataCompressors, and its capabilities for the composition, modification, and caching of very large volumes (see Processing Large Volumes in MeVisLab), which do not fit into memory or exceed the 2 GB limit.

Windows¶

Default Panel¶

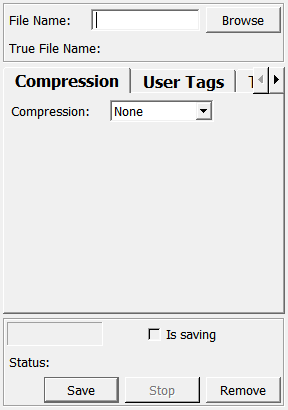

../../../Modules/ML/MLImageFormat/mhelp/Images/Screenshots/MLImageFormatSave._default.png

Input Fields¶

input0¶

name: input0, type: Image¶

Parameter Fields¶

Field Index¶

`boolHintVal6`: `Bool`	`dblHintVisible7`: `Bool`	`Is Saving`: `Bool`
`boolHintVal7`: `Bool`	`dblHintVisible8`: `Bool`	`progress`: `Float`
`boolHintVal8`: `Bool`	`dblHintVisible9`: `Bool`	`regionOffset`: `IntVector6`
`boolHintVal9`: `Bool`	`File Name`: `String`	`Remove`: `Trigger`
`boolHintVisible0`: `Bool`	`hintName0`: `String`	`Save`: `Trigger`
`boolHintVisible1`: `Bool`	`hintName1`: `String`	`Save Time`: `Double`
`boolHintVisible2`: `Bool`	`hintName2`: `String`	`Status`: `String`
`boolHintVisible3`: `Bool`	`hintName3`: `String`	`Stop`: `Trigger`
`boolHintVisible4`: `Bool`	`hintName4`: `String`	`strHintVal6`: `String`
`boolHintVisible5`: `Bool`	`hintName5`: `String`	`strHintVal7`: `String`
`boolHintVisible6`: `Bool`	`hintName6`: `String`	`strHintVal8`: `String`
`boolHintVisible7`: `Bool`	`hintName7`: `String`	`strHintVal9`: `String`
`boolHintVisible8`: `Bool`	`hintName8`: `String`	`strHintVisible0`: `Bool`
`boolHintVisible9`: `Bool`	`hintName9`: `String`	`strHintVisible1`: `Bool`
`Calc Time`: `Double`	`intHintVal6`: `Integer`	`strHintVisible2`: `Bool`
`Compression`: `Enum`	`intHintVal7`: `Integer`	`strHintVisible3`: `Bool`
`Create`: `Trigger`	`intHintVal8`: `Integer`	`strHintVisible4`: `Bool`
`dblHintVal6`: `Double`	`intHintVal9`: `Integer`	`strHintVisible5`: `Bool`
`dblHintVal7`: `Double`	`intHintVisible0`: `Bool`	`strHintVisible6`: `Bool`
`dblHintVal8`: `Double`	`intHintVisible1`: `Bool`	`strHintVisible7`: `Bool`
`dblHintVal9`: `Double`	`intHintVisible2`: `Bool`	`strHintVisible8`: `Bool`
`dblHintVisible0`: `Bool`	`intHintVisible3`: `Bool`	`strHintVisible9`: `Bool`
`dblHintVisible1`: `Bool`	`intHintVisible4`: `Bool`	`suppressWorldPos`: `Bool`
`dblHintVisible2`: `Bool`	`intHintVisible5`: `Bool`	`Total Time`: `Double`
`dblHintVisible3`: `Bool`	`intHintVisible6`: `Bool`	`True File Name`: `String`
`dblHintVisible4`: `Bool`	`intHintVisible7`: `Bool`	`updateHintControls`: `Trigger`
`dblHintVisible5`: `Bool`	`intHintVisible8`: `Bool`	`Written Tag List`: `String`
`dblHintVisible6`: `Bool`	`intHintVisible9`: `Bool`

Visible Fields¶

Compression¶

name: compression, type: Enum, default: LZ4¶

Defines the compression algorithm used for data compression.

See MLDataCompressors for more information.

Values:

Title	Name
None	None
MLCTComp2	MLCTComp2
BZip2	BZip2
Lzf	LZF
Lzma	LZMA
Zlib	ZLIB
Lz4	LZ4

True File Name¶

name: trueFileName, type: String, persistent: no, deprecated name: autoFileName¶: Shows the actual file name on the current system.

Remove¶

name: remove, type: Trigger¶: When pressed, the specified file is being removed from disk.

Stop¶

name: stop, type: Trigger¶: When pressed, the current saving process is stopped and the file that is written so far being removed.

Is Saving¶

name: isSaving, type: Bool, persistent: no¶: Shows whether the module is currently saving.

Status¶

name: status, type: String, persistent: no¶: Shows information about the module’s state.

Save¶

name: save, type: Trigger¶: When pressed, the attached image is being saved to the specified file.

Create¶

name: create, type: Trigger¶: Creates the image on disk, but only saves the tags/properties and fills all pages with the default value, which is the voxel value at (0,0,0,0,0,0).

Save Time¶

name: saveTime, type: Double, persistent: no¶: Shows the file IO time needed for the recent save operation, excluding the preparation times for calculation, compression, reordering, etc.

Calc Time¶

name: calcTime, type: Double, persistent: no¶: Shows the calculation time needed for compression, reordering, checksums, etc., during the recent save operation, exclusive the data request from the image input.

Total Time¶

name: totalTime, type: Double, persistent: no¶: Shows the total save time including data processing from module input, data reordering, and IO times.

File Name¶

name: fileName, type: String¶

Sets the path to the file in which the connected input image shall be stored.

Note that also variables can be used such as $(NETWORK), $(HOME), and $(DemoDataPath) to specify paths into the current network directory, the user’s home directory and to the installed example data directory of MeVisLab.

They reference some special directories to simplify relocation of module networks to other installations.
