LocalImage

MacroModule

genre	File
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
definition	LocalImage.def
see also	MakeName, LocalSoFile
keywords	load

Purpose

The module LocalImage resolves image paths relative to network or to the local MeVisLab installation.

Windows

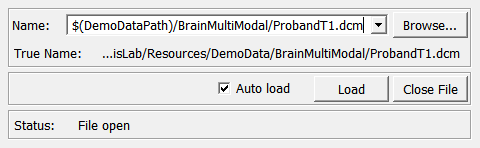

Default Panel

Output Fields

outImage

name: outImage, type: Image, deprecated name: output

The loaded image.

Parameter Fields

Field Index

Auto Load: Bool

Close File: Trigger

Load: Trigger

Name: String

Status: String

True Name: String

Visible Fields

Name

name: name, type: String, default: $(DemoDataPath)/BrainMultiModal/ProbandT1.dcm

Sets the name of the file, can contain path variables.

The field is implemented as a combo box that is pre-filled on opening the module’s GUI with the following path variables:

• $(NETWORK): the directory where the network is stored in.

• $(DemoDataPath): the demo data path of a MeVisLab installation.

• Path variables to all installed MeVisLab packages on the current system.

• $(HOME): the current user’s home directory on the current system.

• $(TMPDIR): the current user’s temporary directory on the current system.

True Name

name: trueName, type: String, persistent: no, deprecated name: localname

Shows the true filename with resolved path variables.

Load

name: load, type: Trigger

When pressed, the image is loaded.

Auto Load

name: autoLoad, type: Bool, default: TRUE

If enabled, the module automatically opens the file whenever the Name is touched.

Close File

name: close, type: Trigger

When pressed, the loaded image is closed.

Status

name: status, type: String, persistent: no

Shows status information about the module.
