LocalWEMLoad¶

MacroModule¶

genre	`WEMPersistence`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
definition	MLWEMModules.def
see also	`WEMLoad`, `WEMSave`
keywords	`surface`

Purpose¶

The module LocalWEMLoad loads a WEM in any supported format from a relative path.

Usage¶

Simply set the filename, which can be relative to a variable, and load the file.

Details¶

The panel offers some examples of variables to use.

The module is based internally on WEMLoad, have a look at that module for available file formats.

Windows¶

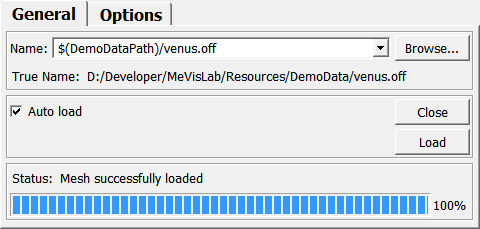

Default Panel¶

../../../Modules/ML/MLWEMModules/mhelp/Images/Screenshots/LocalWEMLoad._default.png

Output Fields¶

outWEM¶

name: outWEM, type: WEM(MLBase)¶: Output is a WEM.

For accessing this object via scripting, see the Scripting Reference: MLWEMWrapper.

Parameter Fields¶

Field Index¶

`Auto load`: `Bool`	`Label`: `String`	`Triangulate Faces`: `Bool`
`autoUpdate`: `Enum`	`Load`: `Trigger`	`True Name`: `String`
`Close`: `Trigger`	`Mirror Faces`: `Bool`
`Description`: `String`	`Mode`: `Enum`
`elapsedTime`: `Float`	`Name`: `String`
`Generate Edges`: `Bool`	`Overwrite Label Description`: `Bool`
`id`: `Integer`	`progress`: `Float`
`isProcessing`: `Bool`	`Status`: `String`

Visible Fields¶

Name¶

name: name, type: String, default: $(DemoDataPath)/venus.off¶

Sets the WEM file name, using a variable to specify a relative path.

For more information, see LocalImage.name.

True Name¶

name: trueName, type: String, persistent: no¶: Shows the true name of the WEM to load. This is the filename in the current file system.

Mirror Faces¶

name: mirrorFaces, type: Bool, default: FALSE¶: If checked, all faces are mirrored to compensate for formats that have a reverse order of nodes.

Triangulate Faces¶

name: triangulateFaces, type: Bool, default: FALSE¶: If checked, all non-triangle faces will be triangulated.

Mode¶

name: triangulationMode, type: Enum, default: Strip¶: Sets the triangulation scheme in case that loaded faces should be triangulated.

Values:

Title	Name
Center node	Center node
Fan	Fan
Strip	Strip

Generate Edges¶

name: generateEdges, type: Bool, default: TRUE¶: If checked, edges will be generated for the output WEM if the loaded WEM does not have any edges.

Close¶

name: unloadSurface, type: Trigger¶: When pressed, the internal WEM is cleared and the attached modules are notified.

Auto load¶

name: autoApply, type: Bool, default: TRUE¶: If checked, the module loads on start-up and on changing any parameter.

Load¶

name: apply, type: Trigger¶: When pressed, the specified WEM is loaded.

Overwrite Label Description¶

name: overwriteLabelDescription, type: Bool, default: FALSE¶: If checked, the label and the description of the loaded WEM is overwritten.

Label¶

name: label, type: String¶: Sets a label string for free use.

Description¶

name: description, type: String¶: Sets a string description for free use.

Status¶

name: status, type: String, persistent: no¶: Shows the status of the module.

Hidden Fields¶

id¶

name: id, type: Integer, default: 0¶

autoUpdate¶

name: autoUpdate, type: Enum, persistent: no¶
