LUTCombiner¶

MLModule¶

genre	`LUT`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`MLLUTTools`
definition	MLLUTTools.def
see also	`LUTChannelMap`, `LUTInfo`, `SoMLLUT`
keywords	`lookup`, `table`

Purpose¶

The module LUTCombiner generates an output lookup table (LUT) by combining up to six input LUTs.

Details¶

See LUT Functions for general information about ML lookup tables.

Windows¶

Default Panel¶

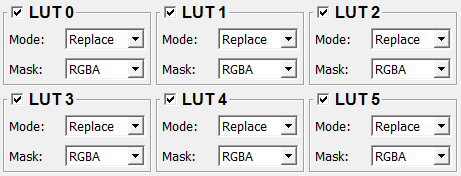

../../../Modules/ML/MLLUTTools/mhelp/Images/Screenshots/LUTCombiner._default.png

Input Fields¶

inLUT0¶

name: inLUT0, type: MLBase¶

inLUT1¶

name: inLUT1, type: MLBase¶

inLUT2¶

name: inLUT2, type: MLBase¶

inLUT3¶

name: inLUT3, type: MLBase¶

inLUT4¶

name: inLUT4, type: MLBase¶

inLUT5¶

name: inLUT5, type: MLBase¶

Output Fields¶

outLUT¶

name: outLUT, type: LUTFunction(MLBase)¶

Parameter Fields¶

Field Index¶

lut0On: Bool

lut1On: Bool

lut2On: Bool

lut3On: Bool

lut4On: Bool

lut5On: Bool

Each LUT input can be toggled individually and has a Mode and a Mask parameter.

Mode¶

Defines the operation used to combine the corresponding input LUT with the intermediate result obtained from the combination of the preceding input LUTs.

Function	Description
Replace	The input LUT replaces the intermediate result.
Add	The input LUT is added to the intermediate result.
Blend	The input LUT is blended with the intermediate result, the blending is determined by the alpha channel of the input LUT.
Subtract	The input LUT is subtracted from the intermediate result.
Multiply	The input LUT is multiplied with the intermediate result.
Min	The minimum of the input LUT and the intermediate result is computed.
Max	The maximum of the input LUT and the intermediate result is computed.

Mask¶

Defines channels of the corresponding input LUT that are combined with the intermediate result obtained from the combination of the preceding input LUTs.

Channel	Description
R	The red channel.
G	The green channel.
B	The blue channel.
A	The alpha channel.
RGB	The red, green, and blue channels.
RGBA	The red, green, blue, and alpha channels.

Hidden Fields¶

lut0On¶

name: lut0On, type: Bool, default: TRUE¶

lut1On¶

name: lut1On, type: Bool, default: TRUE¶

lut2On¶

name: lut2On, type: Bool, default: TRUE¶

lut3On¶

name: lut3On, type: Bool, default: TRUE¶

lut4On¶

name: lut4On, type: Bool, default: TRUE¶

lut5On¶

name: lut5On, type: Bool, default: TRUE¶
