FieldListener¶

MacroModule¶

genre	`Fields`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
definition	helpers.def
see also	`FieldTracer`
keywords	`inspector`, `monitor`, `log`, `trace`, `debug`

Purpose¶

The module FieldListener displays information about a field and log field changes.

Usage¶

To listen to or just inspect a source field, select the Active Input Field and, depending on that, create a connection from the source field to this module’s [connect here], inImage, or inObject, respectively.

The FieldListener displays the source field name, type, and value, as well as the type and instance name of the owner module. If enableConsoleLog is enabled, all changes to the source field are logged to the console.

Details¶

Parameter fields can be connected to the [connect here] by drag-and-drop or using the Connections Inspector. In addition, it is possible to listen to image fields (connected to inImage) or Base fields (via inObject).

Open Inventor fields cannot be listened to because they do not work with notifications.

Windows¶

Default Panel¶

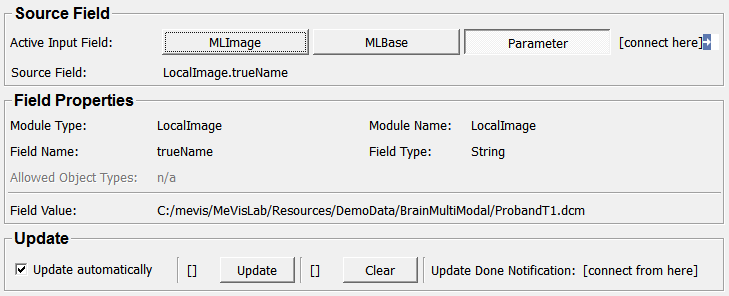

../../../Modules/Macros/Helpers/mhelp/Images/Screenshots/FieldListener._default.png

Input Fields¶

inImage (hidden)¶

name: inImage, type: Image¶: Connect and set Active Input Field to ‘MLImage’ to listen to output image field. Only visible if Active Input Field is ‘MLImage’.

inObject (hidden)¶

name: inObject, type: MLBase¶: Connect and set Active Input Field to ‘MLBase’ to listen to an output Base field. Only visible if Active Input Field is ‘MLBase’.

Parameter Fields¶

Field Index¶

`[connect from here]`: `Trigger`	`sourceFieldModuleType`: `String`
`[connect here]`: `String`	`sourceFieldName`: `String`
`Active Input Field`: `Enum`	`sourceFieldType`: `String`
`Clear`: `Trigger`	`sourceFieldValue`: `String`
`enableConsoleLog`: `Bool`	`Update`: `Trigger`
`sourceFieldAllowedMLBaseTypes`: `String`	`Update automatically`: `Bool`
`sourceFieldFullName`: `String`
`sourceFieldModuleName`: `String`

Visible Fields¶

Active Input Field¶

name: mode, type: Enum, default: Parameter¶

Defines the current operation mode.

Choose between Image (inImage), Object (inObject field), and Parameter ([connect here] field).

Values:

Title	Name	Description
Parameter	Parameter	Investigate source field of `[connect here]` connection.
MLImage	MLImage	Listen to ML image field changes at `inImage`.
MLBase	MLBase	Listen to ML Base field changes at `inObject`.

[connect here]¶

name: inParameter, type: String, deprecated name: listenField¶: The parameter field that shall be observed and listened to. The field must be connected here (e.g., via drag-and-drop).

Update automatically¶

name: shouldAutoUpdate, type: Bool, default: TRUE¶

If enabled, all source field changes result in immediate output updates.

Otherwise, source field changes result in clearing the output fields.

Update¶

name: update, type: Trigger¶: When pressed, connection info is updated.

Clear¶

name: clear, type: Trigger¶: When pressed, connection info is cleared.

[connect from here]¶

name: updateDone, type: Trigger, persistent: no¶: Output trigger notified after each update (i.e., initial connect or source field touch).

Hidden Fields¶

enableConsoleLog¶

name: enableConsoleLog, type: Bool, default: FALSE, deprecated name: consoleLog¶: If checked, log messages about changes of the source field are printed to the console.

sourceFieldFullName¶

name: sourceFieldFullName, type: String, persistent: no, deprecated name: sourceName¶: Shows the full name of the source field (module instance name + field name)

sourceFieldModuleType¶

name: sourceFieldModuleType, type: String, persistent: no, deprecated name: module¶: Shows the type of the connection’s source module.

sourceFieldModuleName¶

name: sourceFieldModuleName, type: String, persistent: no, deprecated name: instance¶: Shows the instance name of the connection’s source module.

sourceFieldName¶

name: sourceFieldName, type: String, persistent: no, deprecated name: name¶: Shows the name of the connection’s source field.

sourceFieldValue¶

name: sourceFieldValue, type: String, persistent: no, deprecated name: value¶

Shows the source field value.

For parameter fields: The parameter value as a string
For (Base) object fields: If valid, the Base object’s type (e.g., XMarkerList), ‘NULL’ otherwise
For image fields: If valid, it shows ‘Valid’; otherwise, it shows ‘Invalid’

sourceFieldType¶

name: sourceFieldType, type: String, persistent: no, deprecated name: type¶: Shows the field type.

sourceFieldAllowedMLBaseTypes¶

name: sourceFieldAllowedMLBaseTypes, type: String, persistent: no¶: Shows the allowed types (MLBase only).
