DicomTimeTool¶

MacroModule¶

genre	`DICOM`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
definition	dicommacros.def
keywords	`date`, `calculation`, `difference`

Purpose¶

The module DicomTimeTool is intended to ease handling of date and time values from DICOM tags, e.g. from the AcquisitionDate and AcquisitionTime tags.

It splits date and time values and calculates differences between date/time values.

Usage¶

Put DICOM date/time values in the Dicom Date1 and Dicom Date2, resp. Dicom Time1 and Dicom Time2 fields, the other fields are updated automatically.

To get these values from an image you can use the DicomTagViewer module.

Details¶

This module should cope with any valid DICOM date and time values.

Time differences can only be computed if the date is provided in both fields. Time is optional: You will see an error message in the status field, but for calculation purposes empty fields will be assumed to contain the time 000000.

Windows¶

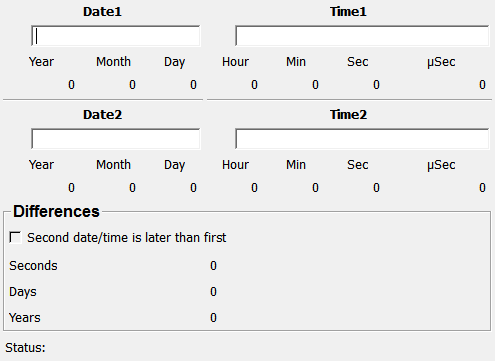

Default Panel¶

../../../Modules/Macros/Dicom/mhelp/Images/Screenshots/DicomTimeTool._default.png

Parameter Fields¶

Field Index¶

`Day1`: `Integer`	`Hour1`: `Integer`	`Second date/time is later than first`: `Bool`
`Day2`: `Integer`	`Hour2`: `Integer`	`Second1`: `Integer`
`Days`: `Double`	`Micro Second1`: `Integer`	`Second2`: `Integer`
`Dicom Date1`: `String`	`Micro Second2`: `Integer`	`Seconds`: `Double`
`Dicom Date2`: `String`	`Minute1`: `Integer`	`Status`: `String`
`Dicom Time1`: `String`	`Minute2`: `Integer`	`Year1`: `Integer`
`Dicom Time2`: `String`	`Month1`: `Integer`	`Year2`: `Integer`
`diffHours`: `Double`	`Month2`: `Integer`	`Years`: `Double`

Visible Fields¶

Dicom Date1¶

name: dicomDate1, type: String¶: Sets the first date in the format YYYYMMDD.

Dicom Time1¶

name: dicomTime1, type: String¶

Sets the first time in the format HHMMSS.mmmm where mmmm is microseconds.

The field also accepts just HHMMSS.

Dicom Date2¶

name: dicomDate2, type: String¶: Sets the second date in the format YYYYMMDD.

Dicom Time2¶

name: dicomTime2, type: String¶

Sets the second time in the format HHMMSS.mmmm where mmmm is microseconds.

The field also accepts just HHMMSS.

Year1¶

name: year1, type: Integer, persistent: no¶: Shows the year of the first entry or 0 if the entry is empty.

Month1¶

name: month1, type: Integer, persistent: no¶: Shows the month of the first entry or 0 if the entry is empty.

Day1¶

name: day1, type: Integer, persistent: no¶: Shows the day of the first entry or 0 if the entry is empty.

Hour1¶

name: hour1, type: Integer, persistent: no¶: Shows the hour of the first entry or 0 if the entry is empty.

Minute1¶

name: minute1, type: Integer, persistent: no¶: Shows the minute of the first entry or 0 if the entry is empty.

Second1¶

name: second1, type: Integer, persistent: no¶: Shows the seconds of the first entry or 0 if the entry is empty.

Micro Second1¶

name: microSecond1, type: Integer, persistent: no¶: Shows the microseconds of the first entry or 0 if the entry is empty or if no microseconds are given.

Year2¶

name: year2, type: Integer, persistent: no¶: Shows the year of the second entry or 0 if the entry is empty.

Month2¶

name: month2, type: Integer, persistent: no¶: Shows the month of the second entry or 0 if the entry is empty.

Day2¶

name: day2, type: Integer, persistent: no¶: Shows the day of the second entry or 0 if the entry is empty.

Hour2¶

name: hour2, type: Integer, persistent: no¶: Shows the hour of the second entry or 0 if the entry is empty.

Minute2¶

name: minute2, type: Integer, persistent: no¶: Shows the minute of the second entry or 0 if the entry is empty.

Second2¶

name: second2, type: Integer, persistent: no¶: Shows the seconds of the second entry or 0 if the entry is empty.

Micro Second2¶

name: microSecond2, type: Integer, persistent: no¶: Shows the microseconds of the second entry or 0 if the entry is empty or if no microseconds are given.

Second date/time is later than first¶

name: secondIsLater, type: Bool, persistent: no¶: Shows whether the second date/time is later than the first date/time.

Seconds¶

name: diffSeconds, type: Double, persistent: no¶: Shows the difference in seconds of the two entries.

Days¶

name: diffDays, type: Double, persistent: no¶: Shows the difference in days of the two entries.

Years¶

name: diffYears, type: Double, persistent: no¶: Shows the difference in years of the two entries.

Status¶

name: status, type: String, persistent: no¶: Shows status information about the module.

Hidden Fields¶

diffHours¶

name: diffHours, type: Double, persistent: no¶
