DicomTagViewer¶

MLModule¶

genre	`DICOM`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`MLImageFile`
definition	mlImageFile.def
see also	`DicomTagModify`, `DicomUIDGenerator`
keywords	`sop`, `uid`

Purpose¶

The module DicomTagViewer displays the DICOM tags and their values of an image.

Usage¶

In the Read Tags panel of the DicomTagViewer module, up to nine DICOM tags can be specified for which the corresponding tag values are displayed.

In the All Tags panel, a list of all DICOM tags of an image can be generated.

Details¶

The most frequently used DICOM tags are:

Patient Information: PatientsName, PatientID, PatientsBirthDate, PatientsSex
Acquisition Information: Modality, ManufacturersModelName, InstitutionName
Image Information: StudyInstanceUID, SOPInstanceUID, SeriesDescription, ImageType, Rows, Columns, NumberOfFrames, ImageDate, ImageTime

Windows¶

Default Panel¶

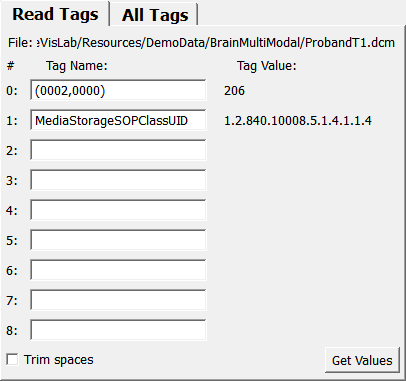

../../../Modules/ML/MLImageFile/mhelp/Images/Screenshots/DicomTagViewer._default.png

Input Fields¶

input0¶

name: input0, type: Image¶

Parameter Fields¶

Field Index¶

`All Tags`: `String`	`tagName2`: `String`	`tagValue2`: `String`
`Dump Tags`: `Trigger`	`tagName3`: `String`	`tagValue3`: `String`
`File`: `String`	`tagName4`: `String`	`tagValue4`: `String`
`Get Values`: `Trigger`	`tagName5`: `String`	`tagValue5`: `String`
`maxValueLen`: `Integer`	`tagName6`: `String`	`tagValue6`: `String`
`Show Private Tags`: `Bool`	`tagName7`: `String`	`tagValue7`: `String`
`Tag List Subset`: `Enum`	`tagName8`: `String`	`tagValue8`: `String`
`tagName0`: `String`	`tagValue0`: `String`	`Trim Spaces`: `Bool`
`tagName1`: `String`	`tagValue1`: `String`

Visible Fields¶

All Tags¶

name: allTags, type: String, persistent: no¶: Shows a list of all DICOM tags in the format (gggg,eeee) TagName: Tag Value.

Show Private Tags¶

name: showPrivateTags, type: Bool, default: FALSE¶: If checked, private tags are shows as well in the list of all tags.

Tag List Subset¶

name: tagListSubset, type: Enum, default: AllTags¶: Defines the subset of tags that are to be shown.

Values:

Title	Name	Deprecated Name	Description
All Tags	AllTags	ALL_TAGS	List all tags associated with the input image.
Non Root	NonRoot	NON_ROOT	List only those tags that have been modified in the network; do not list tags that are inherited from the creator of the DICOM tag list (e.g., read unmodified from the original input file).
Owned	Owned	OWNED	List only those tags that have been modified by the most recent predecessor module.

File¶

name: dicomFile, type: String, persistent: no¶: Shows the file name under which the current image is saved.

Dump Tags¶

name: Print, type: Trigger¶: When pressed, the list of DICOM tags and values is being dumped to the console of MeVisLab.

Get Values¶

name: getValues, type: Trigger, deprecated name: GetCurrentProperties¶: When pressed, all tags and values are retrieved anew from the input image.

Trim Spaces¶

name: trimSpaces, type: Bool, default: FALSE, deprecated name: eliminateTrailingSpaces¶: If checked, trailing spaces in the DICOM tag values are being removed.

Hidden Fields¶

tagName0¶

name: tagName0, type: String¶

tagValue0¶

name: tagValue0, type: String, persistent: no, deprecated name: valueName0¶

tagName1¶

name: tagName1, type: String¶

tagValue1¶

name: tagValue1, type: String, persistent: no, deprecated name: valueName1¶

tagName2¶

name: tagName2, type: String¶

tagValue2¶

name: tagValue2, type: String, persistent: no, deprecated name: valueName2¶

tagName3¶

name: tagName3, type: String¶

tagValue3¶

name: tagValue3, type: String, persistent: no, deprecated name: valueName3¶

tagName4¶

name: tagName4, type: String¶

tagValue4¶

name: tagValue4, type: String, persistent: no, deprecated name: valueName4¶

tagName5¶

name: tagName5, type: String¶

tagValue5¶

name: tagValue5, type: String, persistent: no, deprecated name: valueName5¶

tagName6¶

name: tagName6, type: String¶

tagValue6¶

name: tagValue6, type: String, persistent: no, deprecated name: valueName6¶

tagName7¶

name: tagName7, type: String¶

tagValue7¶

name: tagValue7, type: String, persistent: no, deprecated name: valueName7¶

tagName8¶

name: tagName8, type: String¶

tagValue8¶

name: tagValue8, type: String, persistent: no, deprecated name: valueName8¶

maxValueLen¶

name: maxValueLen, type: Integer, default: 80¶
