ConcatenateImages¶

MLModule¶

genre	`Binary`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`MLGeometry1`
definition	MLGeometry1.def
see also	`SubImage`, `Replicate`
keywords	`concatenation`, `copy`, `merge`, `combine`, `append`

Purpose¶

The module ConcatenateImages concatenates a number of images in in an arbitrarily selectable dimension.

Alternatively, an offset vector can be specified which defines the position of each image relative to position of the previous images inside the output image.

Details¶

Voxels in the output image which are not covered by any of the concatenated input images are filled with zero.

If the input images are overlapping, the values of later input images take precedence in the output image. This only can happen, if the Dimension is set to offset.

It is possible to use negative components for the offset vector. (The output extent will be appropriately enlarged into the negative direction in order to fully include all input images.)

If data types of the input images are different, the datatype of the output image includes the range of the output image (which is the union of all input ranges) and has a precision of at least the input datatype with highest precision. Otherwise no concatenation is performed.

Windows¶

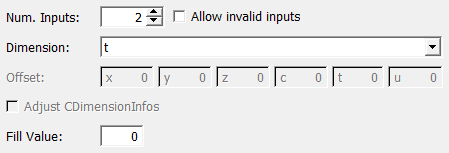

Default Panel¶

../../../Modules/ML/MLGeometry1/mhelp/Images/Screenshots/ConcatenateImages._default.png

Input Fields¶

input0¶

name: input0, type: Image¶

input1¶

name: input1, type: Image¶

input2 (hidden)¶

name: input2, type: Image¶

input3 (hidden)¶

name: input3, type: Image¶

input4 (hidden)¶

name: input4, type: Image¶

input5 (hidden)¶

name: input5, type: Image¶

input6 (hidden)¶

name: input6, type: Image¶

input7 (hidden)¶

name: input7, type: Image¶

input8 (hidden)¶

name: input8, type: Image¶

input9 (hidden)¶

name: input9, type: Image¶

input10 (hidden)¶

name: input10, type: Image¶

input11 (hidden)¶

name: input11, type: Image¶

input12 (hidden)¶

name: input12, type: Image¶

input13 (hidden)¶

name: input13, type: Image¶

input14 (hidden)¶

name: input14, type: Image¶

input15 (hidden)¶

name: input15, type: Image¶

Output Fields¶

output0¶

name: output0, type: Image¶

Parameter Fields¶

Field Index¶

Adjust CDimensionInfos: Bool

Allow Invalid Inputs: Bool

Dimension: Enum

Fill Value: Double

Num. Inputs: Integer

Offset: IntVector6

Visible Fields¶

Num. Inputs¶

name: numberOfInputs, type: Integer, default: 2, minimum: 1, maximum: 16¶: Set the number of input images to concatenate. E.g. in order to compose RGB(A) images from scalar channel images, set Num. Inputs to 3(4) and Dimension to c.

Dimension¶

name: dimension, type: Enum, default: t, deprecated name: DimensionID¶: Defines in which dimension the input images should be concatenated.

Values:

Title	Name	Description
x	x
y	y
z	z
c	c
t	t
u	u
offset	offset	Enables the `Offset` field to specify a user offset.

Offset¶

name: offset, type: IntVector6, default: 0 0 0 0 0 0¶: Sets the position of the second image inside the output image.

Adjust CDimensionInfos¶

name: adjustCDimInfos, type: Bool, default: FALSE¶: Toggle whether the result’s CDimensionInfos should be automatically derived from the number of channels (TRUE) or concatenated from the input (FALSE, default)

Allow Invalid Inputs¶

name: allowInvalidInputs, type: Bool, default: FALSE¶: If enabled, invalid input images are allowed. If enabled, at least one input image needs to be valid to get a valid output. The image properties (world matrix, dicom tags, …) are copied from the first valid image from the left.

Fill Value¶

name: fillValue, type: Double, default: 0¶
