CSOAffineTransformationModificator¶

MLModule¶

genre	`CSOModule`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`MLCSOModules`
definition	MLCSOModules.def
see also	`CSOFilter`, `CSOManager`
keywords	`matrix`, `rotate`, `shear`, `translate`, `scale`

Purpose¶

The module CSOAffineTransformationModificator applies a 4x4 transformation on a subset of all input CSOs. The module can either modify the subset of chosen CSOs directly or generate copies of them before applying the matrix to them.

Usage¶

Attach a CSOList to the module’s input and enter a list of CSO ids into the according field for selecting the subset of CSOs that are to be transformed.

If the module does not work directly on the input CSOList (Work directly on input CSOList), the module copies the input CSOList to its output and performs the transformation on the copied output list.

Details¶

The module simply applies the transformation matrix on each coordinate of the seed point and the path points of all chosen CSOs.

Windows¶

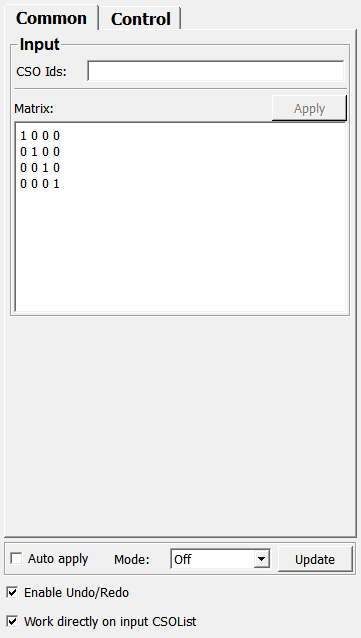

Default Panel¶

../../../Modules/ML/MLCSOModules/mhelp/Images/Screenshots/CSOAffineTransformationModificator._default.png

Input Fields¶

inCSOList¶

name: inCSOList, type: CSOList(MLBase)¶: A CSOList is the input of this module.

For accessing this object via scripting see the Scripting Reference: MLCSOListWrapper.

Output Fields¶

outCSOList¶

name: outCSOList, type: CSOList(MLBase)¶

If the module should not work directly on the input CSOList (Work directly on input CSOList), a copy is made and the alterations are performed on this copy.

The output is either a pointer to the input CSOList or pointer to an internal copy.

For accessing this object via scripting see the Scripting Reference: MLCSOListWrapper.

Parameter Fields¶

Field Index¶

`addCSOToGroupMode`: `Enum`	`Enable Undo/Redo`: `Bool`	`Work directly on input CSOList`: `Bool`
`addCSOToGroupWithId`: `Integer`	`Finishing`: `Bool`
`addCSOToGroupWithLabel`: `String`	`id`: `Integer`
`Auto apply`: `Bool`	`isProcessing`: `Bool`
`Change settings of modified CSOs`: `Bool`	`Matrix`: `Matrix`
`CSO Ids`: `String`	`Mode`: `Enum`
`done`: `Trigger`	`Selection`: `Bool`
`emptyGroupBeforeGeneration`: `Bool`	`Update`: `Trigger`

Visible Fields¶

Mode¶

name: updateMode, type: Enum, default: AutoClear¶: Defines how the module reacts on changes of the input (CSOList) or on notifications.

Values:

Title	Name	Description
Off	Off	The module does nothing.
Auto Update	AutoUpdate	The module computes anew on changes to the input or on notifications.
Auto Clear	AutoClear

Auto apply¶

name: autoApply, type: Bool, default: FALSE¶: If checked, the module computes anew if a field on the GUI has been changed.

Update¶

name: apply, type: Trigger¶: If pressed, the module computes anew.

CSO Ids¶

name: csoIdList, type: String¶

Sets a space-separated list of CSO ids that should be transformed by the gived matrix.

If the list is empty, all CSOs are being transformed.

Work directly on input CSOList¶

name: workDirectlyOnInputList, type: Bool, default: TRUE¶

If checked, the module works directly on the input list.

Otherwise, the module creates a copy of the input CSOList and works on that copy.

Enable Undo/Redo¶

name: useUndoRedo, type: Bool, default: TRUE¶

Change settings of modified CSOs¶

name: changeSettingsForModifiedCSOs, type: Bool, default: FALSE¶: If checked, the settings (visual, voxelization, editing, etc.) are changed according to the module’s settings for all transformed CSOs.

Finishing¶

name: listenToFinishingNotifications, type: Bool, default: TRUE¶: If checked, the module updates on finished notifications if the module’s Mode is set to AutoUpdate.

Selection¶

name: listenToSelectionNotifications, type: Bool, default: TRUE¶: If checked, the module updates on selection notifications if the module’s Mode is set to AutoUpdate.

Matrix¶

name: matrix, type: Matrix, default: 1 0 0 0, 0 1 0 0, 0 0 1 0, 0 0 0 1¶: Sets the 4x4 matrix that is applied to all seed and path points of the chosen CSOs.

Hidden Fields¶

isProcessing¶

name: isProcessing, type: Bool, persistent: no¶

done¶

name: done, type: Trigger, persistent: no¶

emptyGroupBeforeGeneration¶

name: emptyGroupBeforeGeneration, type: Bool, default: FALSE¶

addCSOToGroupMode¶

name: addCSOToGroupMode, type: Enum, default: AddToGroupByLabel¶
