Chapter 3. Main Menu

Table of Contents

3.1. File Menu

3.1.1. Add Files from Directory...
3.1.2. Add Files from Packages...
3.1.3. Add All Packages
3.1.4. Recent Files
3.1.5. Load FileList...
3.1.6. Save all Files to FileList
3.1.7. Save Selected Files to FileList
3.1.8. Clear FileList
3.1.9. Preferences...
3.1.10. Quit

3.2. Show Menu

3.2.1. Show All Files
3.2.2. Hide Deselected Files

3.3. Extras Menu

3.3.1. Check for Required Tools
3.3.2. Open Package Manager...
3.3.3. Remove Ignored Files (Master Builder)

3.1. File Menu

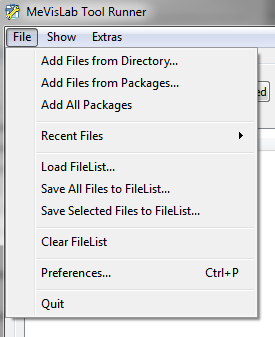

Figure 3.1. File Menu

3.1.1. Add Files from Directory...

Adds files from any directory to the file list. Opens a standard file browser. Use this option if you want to add .mlbuild files.

3.1.2. Add Files from Packages...

Adds files from packages found in the scanned paths to the file list. Opens the Package Loader dialog.

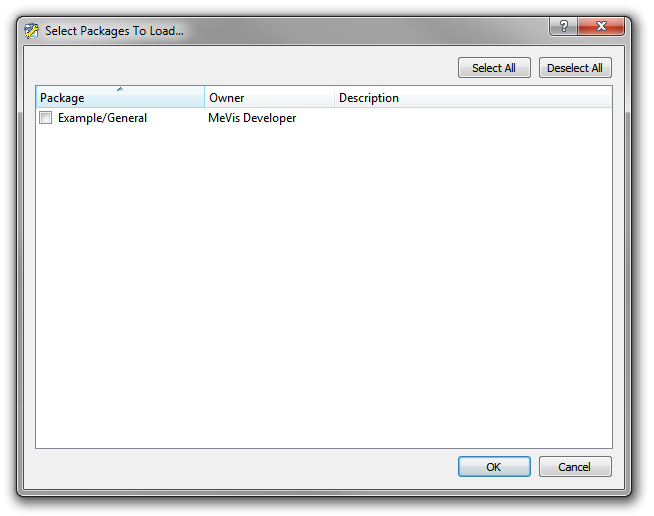

Figure 3.2. Package Loader

3.1.3. Add All Packages

Directly adds all packages found in the scanned paths to the file list.

3.1.4. Recent Files

Opens the list of recently used files, e.g., an .mlfilelist file.

3.1.5. Load FileList...

Loads a previously saved .mlfilelist file. Opens a standard file browser.

3.1.6. Save all Files to FileList

Saves all files in a .mlfilelist file. Opens a standard file dialog.

3.1.7. Save Selected Files to FileList

Saves the selected files only in a .mlfilelist file. Opens a standard file dialog.

3.1.8. Clear FileList

Clears the currently displayed list of files (will not delete saved .mlfilelist files).

3.1.9. Preferences...

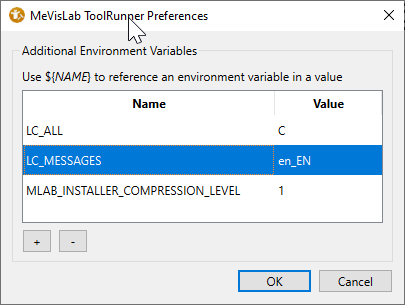

Figure 3.3. ToolRunner Preferences

Build Installer with MeVisLabSDK: Builds installers with files from the installed MeVisLab SDK. If not checked, a special build setup is needed on the computer.

Additional Environment Variables: Allows to set additional environment variables for the build process from the ToolRunner. Press the + button to add a new entry, press - button to remove the currently selected entry.

3.1.10. Quit

Quit ToolRunner.
