ManagedActionTrigger Class Reference

ManagedActionTrigger is a base class for all triggers of managed interactions. More...

#include <ManagedActionTrigger.h>

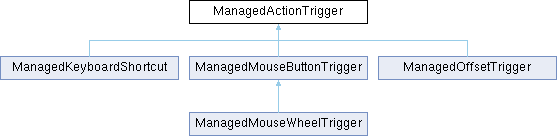

Inheritance diagram for ManagedActionTrigger:
ManagedKeyboardShortcut ManagedMouseButtonTrigger ManagedOffsetTrigger ManagedMouseWheelTrigger

Public Types

enum  {
  NoModifier = 0 , ShiftModifier = 0x10 , ControlModifier = 0x20 , AltModifier = 0x40 ,
  AllModifiersMask = 0x70
}
 Constants to use where keyboard modifiers must be specified. More...

enum  { Button1Mask = 1 , Button2Mask = 2 , Button3Mask = 4 , AllButtonsMask = 0x07 }
 Same for mouse buttons: More...


Static Public Member Functions

Utility functions

Splits a string at given character.

Do not split at last character of string if doNotSplitAtLastChar is set

static std::list< std::string > splitString (const std::string &s, char c, bool doNotSplitAtLastChar=false)

static std::string strip (const std::string &s)
 Strips whitespaces away.

template<typename T >
static std::string join (const std::list< T > &l, const std::string &s)
 Joins a list of objects having a .toString() method, using a separator string s.


Detailed Description

ManagedActionTrigger is a base class for all triggers of managed interactions.

It implements some utility methods.

Definition at line 51 of file ManagedActionTrigger.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Constants to use where keyboard modifiers must be specified.

Modifiers usually can be combined with the bit-wise-or operator (|).

Enumerator
NoModifier

No modifier key.

ShiftModifier

Shift modifier key.

ControlModifier

Control modifier key.

AltModifier

Alt modifier key.

AllModifiersMask

All modifier keys.

Definition at line 56 of file ManagedActionTrigger.h.

◆ anonymous enum

anonymous enum

Same for mouse buttons:

Enumerator
Button1Mask

Left button.

Button2Mask

Middle button.

Button3Mask

Right button.

AllButtonsMask

All buttons.

Definition at line 65 of file ManagedActionTrigger.h.

Member Function Documentation

◆ join()

template<typename T >
std::string ManagedActionTrigger::join ( const std::list< T > & l,
const std::string & s )
static

Joins a list of objects having a .toString() method, using a separator string s.

Definition at line 85 of file ManagedActionTrigger.h.

References mlrange_cast().

◆ splitString()

static std::list< std::string > ManagedActionTrigger::splitString ( const std::string & s,
char c,
bool doNotSplitAtLastChar = false )
static

◆ strip()

static std::string ManagedActionTrigger::strip ( const std::string & s)
static

Strips whitespaces away.

The documentation for this class was generated from the following file:
