Views can be added and removed via the View → Views submenu.

Views (and the toolbar elements) can be moved to another position in the GUI (“docks”) by dragging them around. Either click the “Arrange Windows” icon or grab the title bar of the View and drag it out or around in the Views area.

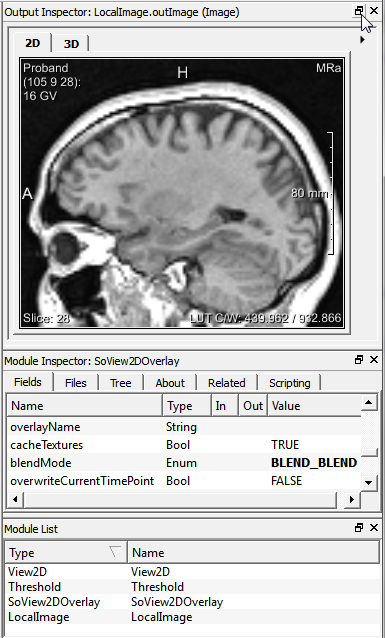

Figure 2.2. View Docked in the Views Area

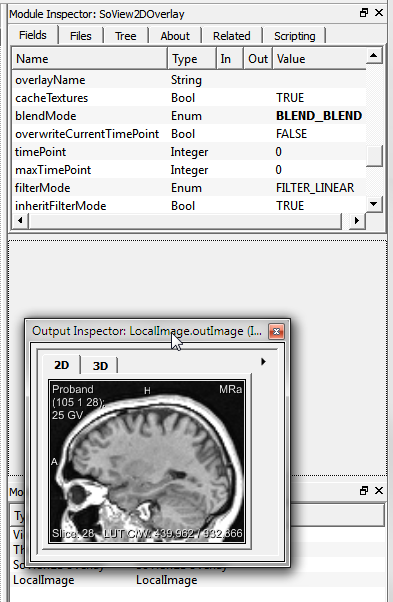

Figure 2.3. Floating View

Floating Views can be moved freely on the screen, for example to another monitor. This allows for a larger scaling of Views without affecting the network display.

Before docking, the target area is indicated when hovering the View over areas of the main window.

Figure 2.4. Moving View to Another Position in Views Area

Views can also be stacked above each other by dragging one View onto the other. For each View, a tab will be displayed.

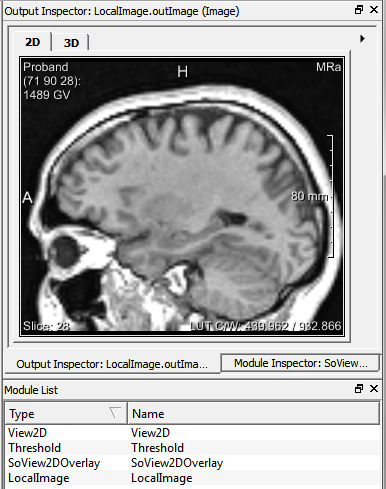

Figure 2.5. Stacked Views

Views can be changed in size by dragging their borders. The resizing is limited by the relative size of the neighboring windows.

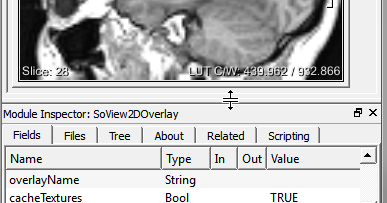

Figure 2.6. Resizing a View in the Views Area
