Base class for single and multi-threaded processor. More...

#include <mlPageRequestProcessorBase.h>

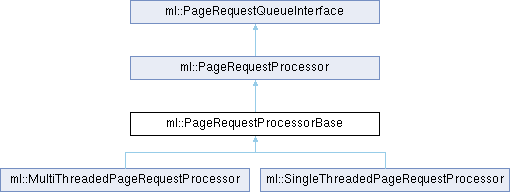

Inheritance diagram for ml::PageRequestProcessorBase:

Classes
struct	PerThreadStorage
	Data this is available on a per-thread basis to cache things that are reused across PageRequest calls, e.g. More...

struct	ScopeStackEntry
	Each processing scope has its own GUI work queue and flags/counters for errors and tiles to wait for. More...

Public Member Functions
	PageRequestProcessorBase (Host *host)

	~PageRequestProcessorBase () override

virtual bool	supportsMultiThreading ()=0
	Returns if multi-threading is supported.

void	removeCancelledRequests () override
	Removes all requests that are canceled and no longer needed.

ProcessingTimeLine &	getProcessingTimeLine ()
	Get access to the processing time line.

ProcessingTimeLine::TimeLine *	getOverviewTimeLine ()
	Get access to the overview time line (only if time line profiling is on)

void	enableTimeLineProfiling (bool flag)
	Enable/disable time line profiling.

bool	isTimeLineProfilingEnabled () const
	Returns if time line profiling is enabled.

int	getProcessingScope () const
	Return the current processing scope.

void	enterProcessingScope () override
	Enters a recursive processing scope (always called from main thread!)

void	leaveProcessingScope () override
	Leaves a recursive processing scope (always called from main thread!)

Public Member Functions inherited from ml::PageRequestProcessor
	~PageRequestProcessor () override
	Virtual destructor.

virtual void	addRootTileRequest (TileRequest *tileRequest)=0
	Adds the root `tileRequest` that should be processed (the ownership stays with the caller).

virtual void	processAll ()=0
	Processes all requests until the cursors have traversed the whole tree and the queue is empty.

virtual void	process (double timeBudget)=0
	Process the requests for the given timeBudget given in seconds.

virtual bool	needsProcessing ()=0
	Returns if the tile request needs some more processing.

virtual void	setNumWorkerThreads (std::size_t)=0
	Set number of worker threads (available here even if subclasses may not support it)

virtual bool	processingWasSingleThreaded () const =0
	Returns if the last request was processed single or multi-threaded.

Public Member Functions inherited from ml::PageRequestQueueInterface
virtual	~PageRequestQueueInterface ()
	Virtual destructor to get rid of warning.

virtual void	append (PageRequest *request)=0
	Append PageRequest `request` which is ready for processing to the work queue.

Protected Member Functions
bool	createMoreWork (bool sleepWhenBlocked, bool allBlocked=nullptr, MLint pageRequestLimit=100000, MLint resultPageRequestCount=nullptr)
	Creates more work items, returns true if new work was created.

void	setupCurrentProcessingScope ()
	helper

virtual void	handleErrorsInGUIThread ()
	handle all errors that have been accumulated

void	terminateAllRequestsInGUIThread ()
	terminate all requests

void	addNewCursor (PageRequestCursor *cursor)
	add the new cursor

virtual void	getAllPageRequestQueues (std::vector< std::deque< PageRequest * > * > &queues)
	get all page request queues (to be derived when there are more than the GUI queues)

UserThreadData *	getUserThreadData (PageRequest *request, PerThreadStorage &perThreadStorage)
	Gets or allocates the UserThreadData for the given request as part of the perThreadStorage.

Protected Attributes
Host *	_host
	optional pointer to the host

bool	_terminated
	flag if the calculation was terminated

int	_rootTileRequests
	the number of root tile requests, if this gets down to 0, we are done

std::vector< std::vector< PageRequestCursor * > >	_cursors
	The cursors that are handled by the producer thread, one list for each processing scope.

int	_processingScope
	the current processing scope (0 = BG tasks, 1 = normal get tile, >1 = recursive get tile

int	_producerProcessingScope
	the current cursor scope of the producer

int	_producerCursorCounter
	how many cursors the producer contains in all lists

int	_guiThreadRecursionCounter
	the recursion of the GUI thread (0 = outer entry)

ScopeStackEntry *	_currentScope
	the current scope pointer

std::vector< ScopeStackEntry >	_scopeStack
	Stack of processing scopes for performance reasons, we only grow this stack, we never shrink it.

TimeCounter	_progressUpdateTimer
	Timer used for progress update from GUI thread.

PerThreadStorage	_guiPerThreadStorage
	The per thread storage for the GUI thread.

Profiling
bool	_useTimeLineProfiling

ProcessingTimeLine	_profile

ProcessingTimeLine::TimeLine *	_guiThreadTimeLine

ProcessingTimeLine::TimeLine *	_overviewTimeLine

Additional Inherited Members
Static Public Member Functions inherited from ml::PageRequestProcessor
static void	enableTileRequestAllocationFailure (int count=1)
	Enables failing on every `count` allocation.

static void	disableTileRequestAllocationFailure ()
	Disables allocation failure (default!)

Detailed Description

Base class for single and multi-threaded processor.

Definition at line 35 of file mlPageRequestProcessorBase.h.

Constructor & Destructor Documentation

◆ PageRequestProcessorBase()

ml::PageRequestProcessorBase::PageRequestProcessorBase ( Host * host )

◆ ~PageRequestProcessorBase()

ml::PageRequestProcessorBase::~PageRequestProcessorBase ( )

override

Member Function Documentation

◆ addNewCursor()

void ml::PageRequestProcessorBase::addNewCursor ( PageRequestCursor * cursor )

protected

add the new cursor

◆ createMoreWork()

bool ml::PageRequestProcessorBase::createMoreWork	(	bool	sleepWhenBlocked,
		bool *	allBlocked = nullptr,
		MLint	pageRequestLimit = 100000,
		MLint *	resultPageRequestCount = nullptr )

protected

Creates more work items, returns true if new work was created.

◆ enableTimeLineProfiling()

void ml::PageRequestProcessorBase::enableTimeLineProfiling ( bool flag )

Enable/disable time line profiling.

◆ enterProcessingScope()

void ml::PageRequestProcessorBase::enterProcessingScope ( )

overridevirtual

Enters a recursive processing scope (always called from main thread!)

Implements ml::PageRequestProcessor.

◆ getAllPageRequestQueues()

virtual void ml::PageRequestProcessorBase::getAllPageRequestQueues ( std::vector< std::deque< PageRequest * > * > & queues )

protectedvirtual

get all page request queues (to be derived when there are more than the GUI queues)

◆ getOverviewTimeLine()

ProcessingTimeLine::TimeLine * ml::PageRequestProcessorBase::getOverviewTimeLine ( )

inline

Get access to the overview time line (only if time line profiling is on)

Definition at line 53 of file mlPageRequestProcessorBase.h.

◆ getProcessingScope()

int ml::PageRequestProcessorBase::getProcessingScope ( ) const

inline

Return the current processing scope.

Definition at line 62 of file mlPageRequestProcessorBase.h.

◆ getProcessingTimeLine()

ProcessingTimeLine & ml::PageRequestProcessorBase::getProcessingTimeLine ( )

inline

Get access to the processing time line.

Definition at line 50 of file mlPageRequestProcessorBase.h.

◆ getUserThreadData()

UserThreadData * ml::PageRequestProcessorBase::getUserThreadData	(	PageRequest *	request,
		PerThreadStorage &	perThreadStorage )

protected

Gets or allocates the UserThreadData for the given request as part of the perThreadStorage.

◆ handleErrorsInGUIThread()

virtual void ml::PageRequestProcessorBase::handleErrorsInGUIThread ( )

protectedvirtual

handle all errors that have been accumulated

◆ isTimeLineProfilingEnabled()

bool ml::PageRequestProcessorBase::isTimeLineProfilingEnabled ( ) const

inline

Returns if time line profiling is enabled.

Definition at line 59 of file mlPageRequestProcessorBase.h.

◆ leaveProcessingScope()

void ml::PageRequestProcessorBase::leaveProcessingScope ( )

overridevirtual

Leaves a recursive processing scope (always called from main thread!)

Implements ml::PageRequestProcessor.

◆ removeCancelledRequests()

void ml::PageRequestProcessorBase::removeCancelledRequests ( )

overridevirtual

Removes all requests that are canceled and no longer needed.

Make sure to only call this from the GUI thread AND when you know that processing by other threads in not allowed at that point in time.

Implements ml::PageRequestProcessor.

◆ setupCurrentProcessingScope()

void ml::PageRequestProcessorBase::setupCurrentProcessingScope ( )

protected

helper

◆ supportsMultiThreading()

virtual bool ml::PageRequestProcessorBase::supportsMultiThreading ( )

pure virtual

Returns if multi-threading is supported.

Implemented in ml::MultiThreadedPageRequestProcessor, and ml::SingleThreadedPageRequestProcessor.

◆ terminateAllRequestsInGUIThread()

void ml::PageRequestProcessorBase::terminateAllRequestsInGUIThread ( )

protected

terminate all requests

Member Data Documentation

◆ _currentScope

ScopeStackEntry* ml::PageRequestProcessorBase::_currentScope

protected

the current scope pointer

Definition at line 141 of file mlPageRequestProcessorBase.h.

◆ _cursors

std::vector< std::vector<PageRequestCursor*> > ml::PageRequestProcessorBase::_cursors

protected

The cursors that are handled by the producer thread, one list for each processing scope.

Definition at line 100 of file mlPageRequestProcessorBase.h.

◆ _guiPerThreadStorage

PerThreadStorage ml::PageRequestProcessorBase::_guiPerThreadStorage

protected

The per thread storage for the GUI thread.

Definition at line 165 of file mlPageRequestProcessorBase.h.

◆ _guiThreadRecursionCounter

int ml::PageRequestProcessorBase::_guiThreadRecursionCounter

protected

the recursion of the GUI thread (0 = outer entry)

Definition at line 117 of file mlPageRequestProcessorBase.h.

◆ _guiThreadTimeLine

ProcessingTimeLine::TimeLine* ml::PageRequestProcessorBase::_guiThreadTimeLine

protected

Definition at line 106 of file mlPageRequestProcessorBase.h.

◆ _host

Host* ml::PageRequestProcessorBase::_host

protected

optional pointer to the host

Definition at line 90 of file mlPageRequestProcessorBase.h.

◆ _overviewTimeLine

ProcessingTimeLine::TimeLine* ml::PageRequestProcessorBase::_overviewTimeLine

protected

Definition at line 107 of file mlPageRequestProcessorBase.h.

◆ _processingScope

int ml::PageRequestProcessorBase::_processingScope

protected

the current processing scope (0 = BG tasks, 1 = normal get tile, >1 = recursive get tile

Definition at line 111 of file mlPageRequestProcessorBase.h.

◆ _producerCursorCounter

int ml::PageRequestProcessorBase::_producerCursorCounter

protected

how many cursors the producer contains in all lists

Definition at line 115 of file mlPageRequestProcessorBase.h.

◆ _producerProcessingScope

int ml::PageRequestProcessorBase::_producerProcessingScope

protected

the current cursor scope of the producer

Definition at line 113 of file mlPageRequestProcessorBase.h.

◆ _profile

ProcessingTimeLine ml::PageRequestProcessorBase::_profile

protected

Definition at line 105 of file mlPageRequestProcessorBase.h.

◆ _progressUpdateTimer

TimeCounter ml::PageRequestProcessorBase::_progressUpdateTimer

protected

Timer used for progress update from GUI thread.

Definition at line 148 of file mlPageRequestProcessorBase.h.

◆ _rootTileRequests

int ml::PageRequestProcessorBase::_rootTileRequests

protected

the number of root tile requests, if this gets down to 0, we are done

Definition at line 96 of file mlPageRequestProcessorBase.h.

◆ _scopeStack

std::vector<ScopeStackEntry> ml::PageRequestProcessorBase::_scopeStack

protected

Stack of processing scopes for performance reasons, we only grow this stack, we never shrink it.

Definition at line 145 of file mlPageRequestProcessorBase.h.

◆ _terminated

bool ml::PageRequestProcessorBase::_terminated

protected

flag if the calculation was terminated

Definition at line 93 of file mlPageRequestProcessorBase.h.

◆ _useTimeLineProfiling

bool ml::PageRequestProcessorBase::_useTimeLineProfiling

protected

Definition at line 104 of file mlPageRequestProcessorBase.h.

The documentation for this class was generated from the following file:

MeVis/Foundation/Sources/ML/include/host/mlPageRequestProcessorBase.h

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ PageRequestProcessorBase()

◆ ~PageRequestProcessorBase()

Member Function Documentation

◆ addNewCursor()

◆ createMoreWork()

◆ enableTimeLineProfiling()

◆ enterProcessingScope()

◆ getAllPageRequestQueues()

◆ getOverviewTimeLine()

◆ getProcessingScope()

◆ getProcessingTimeLine()

◆ getUserThreadData()

◆ handleErrorsInGUIThread()

◆ isTimeLineProfilingEnabled()

◆ leaveProcessingScope()

◆ removeCancelledRequests()

◆ setupCurrentProcessingScope()

◆ supportsMultiThreading()

◆ terminateAllRequestsInGUIThread()

Member Data Documentation

◆ _currentScope

◆ _cursors

◆ _guiPerThreadStorage

◆ _guiThreadRecursionCounter

◆ _guiThreadTimeLine

◆ _host

◆ _overviewTimeLine

◆ _processingScope

◆ _producerCursorCounter

◆ _producerProcessingScope

◆ _profile

◆ _progressUpdateTimer

◆ _rootTileRequests

◆ _scopeStack

◆ _terminated

◆ _useTimeLineProfiling
