WEMClipImagePlanesToCSOList

MacroModule

author	Jan Hendrik Moltz
package	FMEwork/ReleaseMeVis
definition	WEMClipImagePlanesToCSOList.def
see also	WEMClipPlaneToCSO
keywords	wem, convert, cso, slices

Purpose

Converts a WEM to a CSOList with CSOs on the planes of an image.

Usage

Connect an image and a WEM and press Update.

Details

This macro calls WEMClipPlaneToCSO iteratively, clipping the WEM with each slice of the image at a time.

Windows

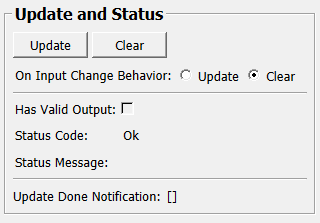

Default Panel

Input Fields

inImage

name: inImage, type: Image

Image on whose slices the CSOs will be created

inWEM

name: inWEM, type: MLBase

WEM that should be converted

Output Fields

outCSOList

name: outCSOList, type: MLBase

CSOList that was generated from the WEM

Parameter Fields

Field Index

[]: Trigger

Clear: Trigger

Has Valid Output: Bool

On Input Change Behavior: Enum

Status Code: Enum

Status Message: String

Update: Trigger

Visible Fields

Update

name: update, type: Trigger

Initiates update of all output field values.

Clear

name: clear, type: Trigger

Clears all output field values to a clean initial state.

On Input Change Behavior

name: onInputChangeBehavior, type: Enum, default: Clear, deprecated name: shouldAutoUpdate,shouldUpdateAutomatically

Declares how the module should react if a value of an input field changes.

Values:

Title	Name	Deprecated Name
Update	Update	TRUE
Clear	Clear	FALSE

[]

name: updateDone, type: Trigger, persistent: no

Notifies that an update was performed (Check status interface fields to identify success or failure).

Has Valid Output

name: hasValidOutput, type: Bool, persistent: no

Indicates validity of output field values (success of computation).

Status Code

name: statusCode, type: Enum, persistent: no

Reflects module’s status (successful or failed computations) as one of some predefined enumeration values.

Values:

Title	Name
Ok	Ok
Invalid input object	Invalid input object
Invalid input parameter	Invalid input parameter
Internal error	Internal error

Status Message

name: statusMessage, type: String, persistent: no

Gives additional, detailed information about status code as human-readable message.
