ShaderParameterSlider2f

MacroModule

genre	Shader
author	Christian Rieder
package	FMEwork/ReleaseMeVis
definition	ShaderHelpers.def
see also	SoShaderParameter2f
keywords	vertex, fragment, geometry, shader, slider, 2f, parameter, uniform

Purpose

Provides a mean to set a two-component floating point uniform parameter (vec2) using sliders.

Windows

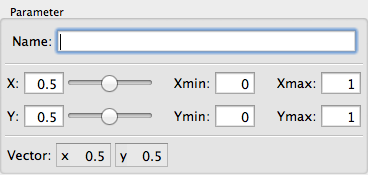

Default Panel

Output Fields

output0

name: output0, type: SoNode, deprecated name: output

Parameter Fields

Field Index

Name: String	Ymin: Float
value: Vector2
Vector: Vector2
X: Double
Xmax: Float
Xmin: Float
Y: Double
Ymax: Float

Visible Fields

Name

name: name, type: String

Xmax

name: xmax, type: Float, default: 1

Xmin

name: xmin, type: Float, default: 0

Ymax

name: ymax, type: Float, default: 1

Ymin

name: ymin, type: Float, default: 0

X

name: x, type: Double, default: 0.5, minimum: :field:`xmin`, maximum: :field:`xmax`

Y

name: y, type: Double, default: 0.5, minimum: :field:`ymin`, maximum: :field:`ymax`

Vector

name: vector, type: Vector2, default: 0.5 0.5

Hidden Fields

value

name: value, type: Vector2, default: 0.5 0.5
