HtmlEditor¶

MacroModule¶

author	`Wolf Spindler`
package	`FMEwork/ReleaseMeVis`
definition	HtmlEditor.def
see also	`PlaceholderTranslator`
keywords	`edit`, `interactive`, `wysiwyg`, `web`

Purpose¶

HtmlEditor is a convenience macro for low-level HTML editing. It has an input for (hand-written) HTML text and a display which shows (in WYSIWYG manner) the web rendering result. Like the PlaceholderTranslator it allows inserting field names from other modules, self-defined aliases, or constants into the HTML template text.

Actually this module is not intended as a full-purpose HTML editor, but it can be a helpful tool macro for application builders. Thus creating, editing and export of documents as web results is possible in an application without needing application-external programs.

If you want to make use of HtmlEditor inside of a macro please have a look at parentLevelsUp and PlaceholderTranslator.parentLevelsUp to make sure that the module can find referenced fields.

Windows¶

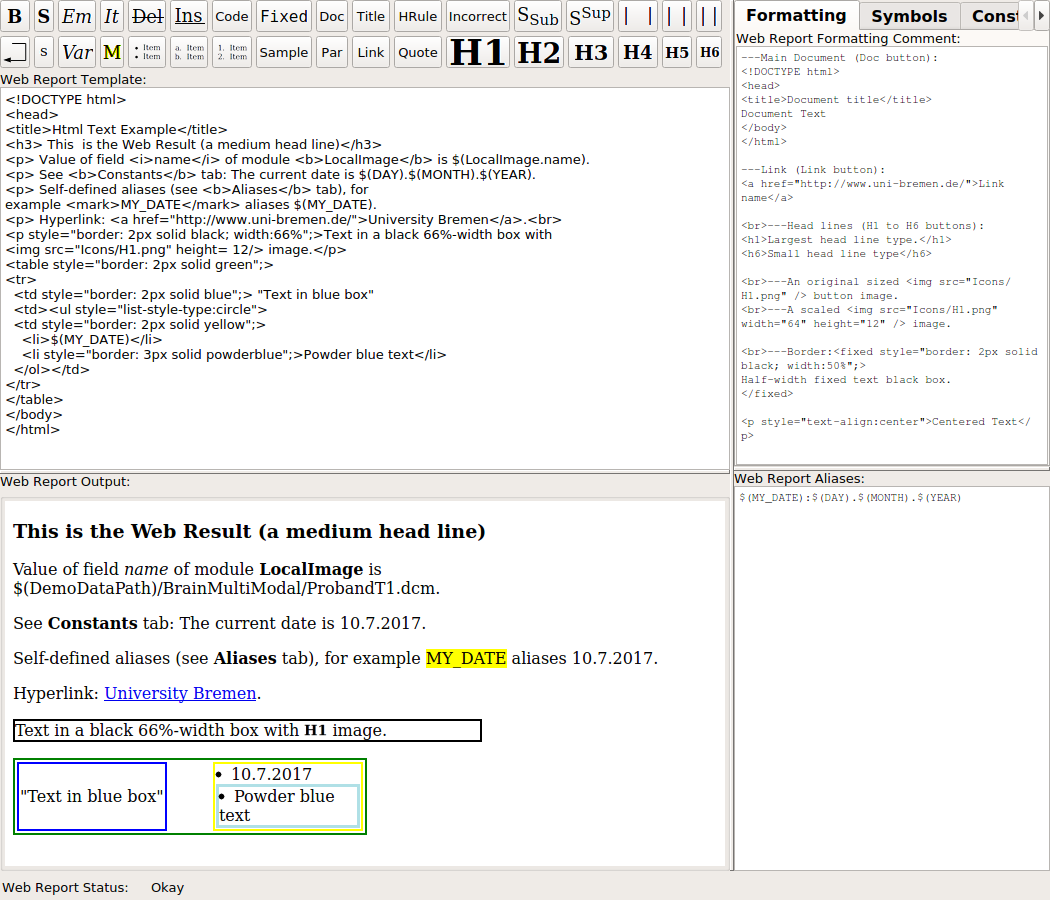

Default Panel¶

../../../Projects/HtmlEditor/Modules/mhelp/Images/Screenshots/HtmlEditor._default.png

Parameter Fields¶

Field Index¶

`Code`: `Trigger`	`Make H5`: `Trigger`	`parentLevelsUp`: `Integer`
`Doc`: `Trigger`	`Make H6`: `Trigger`	`Quote`: `Trigger`
`HRule`: `Trigger`	`Make Inserted`: `Trigger`	`Sample`: `Trigger`
`Incorrect`: `Trigger`	`Make Italic`: `Trigger`	`tempFileBufferName`: `String`
`isHtmlEditorTestingEnabled`: `Bool`	`Make Marked`: `Trigger`	`Title`: `Trigger`
`Link`: `Trigger`	`Make Newline`: `Trigger`	`useShortButtonBar`: `Bool`
`Make AL`: `Trigger`	`Make OL`: `Trigger`	`useTempFileBuffer`: `Bool`
`Make Bold`: `Trigger`	`Make Preformatted`: `Trigger`	`Web Report Aliases`: `String`
`Make Deleted`: `Trigger`	`Make Small`: `Trigger`	`Web Report Constants Comment`: `String`
`Make Em Space`: `Trigger`	`Make Space`: `Trigger`	`Web Report Examples Comment`: `String`
`Make Emphasized`: `Trigger`	`Make Strong`: `Trigger`	`Web Report Formatting Comment`: `String`
`Make En Space`: `Trigger`	`Make Sub Scripted`: `Trigger`	`Web Report Status`: `String`
`Make H1`: `Trigger`	`Make Super Scripted`: `Trigger`	`Web Report Symbols Comment`: `String`
`Make H2`: `Trigger`	`Make UL`: `Trigger`	`Web Report Template`: `String`
`Make H3`: `Trigger`	`Make Variable`: `Trigger`	`WebReportOutputs`: `String`
`Make H4`: `Trigger`	`Par`: `Trigger`

Visible Fields¶

Web Report Template¶

name: WebReportInput, type: String, default: <!DOCTYPE html>, <head>, <title>Html Text Example</title>, <h1>This is the Web Result</h1>, <h2>Placeholders</h2>, <p>Value of field <i>name</i> of module <b>LocalImage</b> is $(LocalImage.name).</p>, <p>See <b>Constants</b> tab: The current date is $(DAY).$(MONTH).$(YEAR).</p>, <p>Self-defined aliases (see <b>Aliases</b> tab), for , example <mark>MY_DATE</mark> aliases $(MY_DATE).</p>, <h2>Formatting</h2>, <p>Hyperlink: <a href="http://www.uni-bremen.de/">University Bremen</a>.</p>, <p style="border: 2px solid black; width:50%">Text in a black and half-width box.</p>, <table style="border: 2px solid green">, <tr>, <td style="border: 2px solid blue">"Text in blue box"</td>, <td><ul style="list-style-type:circle; border: 2px solid yellow">, <li>$(MY_DATE)</li>, <li style="border: 3px solid powderblue">Powder blue text</li>, </ul></td>, </tr>, </table>, </body>, </html>¶: Insert the HTML text with constants, placeholders and aliases here. The placeholders will be translated and the result is shown in the WebReportOutputs field then.

Web Report Aliases¶

name: WebReportAliases, type: String, default: $(MY_DATE):$(DAY).$(MONTH).$(YEAR),¶: Here aliases can be defined. For details see PlaceholderTranslator.aliases.

Web Report Status¶

name: WebReportStatus, type: String, persistent: no¶: Shows status information, especially errors if any field, module or alias cannot be resolved correctly.

Web Report Examples Comment¶

name: WebReportExamplesComment, type: String, persistent: no¶: Some useful HTML examples are shown here.

Web Report Symbols Comment¶

name: WebReportSymbolsComment, type: String, persistent: no¶: Some useful HTML symbols coded are shown here.

Web Report Formatting Comment¶

name: WebReportFormattingComment, type: String, persistent: no¶: Some useful HTML formatting statements are shown here.

Web Report Constants Comment¶

name: WebReportConstantsComment, type: String, persistent: no¶: A list of constants which can be inserted into the html document to add useful information such as date, time, system information etc.

Doc¶

name: makeDoc, type: Trigger¶: Inserts a minimal HTML document structure.

Make Bold¶

name: makeBold, type: Trigger¶: Makes selected text formatted bold.

Make Strong¶

name: makeStrong, type: Trigger¶: Makes selected text formatted strong.

Make Italic¶

name: makeItalic, type: Trigger¶: Makes selected text formatted italic.

Make Emphasized¶

name: makeEmphasized, type: Trigger¶: Makes selected text formatted emphasized.

Make Small¶

name: makeSmall, type: Trigger¶: Makes selected text formatted smaller.

Make Marked¶

name: makeMarked, type: Trigger¶: Makes selected text formatted marked.

Make Deleted¶

name: makeDeleted, type: Trigger¶: Makes selected text formatted deleted.

Make Inserted¶

name: makeInserted, type: Trigger¶: Makes selected text formatted inserted.

Make Sub Scripted¶

name: makeSubScripted, type: Trigger¶: Makes selected text formatted as subscripted text.

Make Super Scripted¶

name: makeSuperScripted, type: Trigger¶: Makes selected text formatted as superscripted text.

Link¶

name: makeLink, type: Trigger¶: Makes selected text formatted as link.

Par¶

name: makeParagraph, type: Trigger¶: Makes selected text formatted as paragraph.

Make Newline¶

name: makeNewline, type: Trigger¶: Appends a line break at end of selected text.

Title¶

name: makeTitle, type: Trigger¶: Makes selected text formatted as title.

Make H1¶

name: makeH1, type: Trigger¶: Makes selected text formatted as head line type 1 (1= large, 6 = small).

Make H2¶

name: makeH2, type: Trigger¶: Makes selected text formatted as head line type 2 (1= large, 6 = small).

Make H3¶

name: makeH3, type: Trigger¶: Makes selected text formatted as head line type 3 (1= large, 6 = small).

Make H4¶

name: makeH4, type: Trigger¶: Makes selected text formatted as head line type 4 (1= large, 6 = small).

Make H5¶

name: makeH5, type: Trigger¶: Makes selected text formatted as head line type 5 (1= large, 6 = small).

Make H6¶

name: makeH6, type: Trigger¶: Makes selected text formatted as head line type 6 (1= large, 6 = small).

Make AL¶

name: makeAL, type: Trigger¶: Inserts a small list with character items.

Make OL¶

name: makeOL, type: Trigger¶: Inserts a small list with numbered items.

Make UL¶

name: makeUL, type: Trigger¶: Inserts a small list with bulleted items.

Quote¶

name: makeQuote, type: Trigger¶: Makes selected text quoted.

Incorrect¶

name: makeIncorrect, type: Trigger¶: Makes selected text formatted as incorrect.

Make Preformatted¶

name: makePreformatted, type: Trigger¶: Makes selected text preformatted.

Make Variable¶

name: makeVariable, type: Trigger¶: Makes selected text formatted as variable.

Sample¶

name: makeSample, type: Trigger¶: Makes selected text formatted as sample code.

Code¶

name: makeCode, type: Trigger¶: Makes selected text formatted as (computer) code.

HRule¶

name: makeHRule, type: Trigger¶: Inserts a horizontal rule.

Make Space¶

name: makeSpace, type: Trigger¶: A normal sized space.

Make En Space¶

name: makeEnSpace, type: Trigger¶: A space sized more or less like two spaces.

Make Em Space¶

name: makeEmSpace, type: Trigger¶: A space sized more or less like four spaces.

Hidden Fields¶

useShortButtonBar¶

name: useShortButtonBar, type: Bool, default: FALSE¶: Selects a three line button bar which makes the editor less wide. This can be useful for applications embedding this editor and which do not want to have a such large extent.

useTempFileBuffer¶

name: useTempFileBuffer, type: Bool, default: FALSE¶: Advanced: A hidden field which can be activated to make the editor store its web result from WebReportOutputs in a temporary file. This can improve usability of WebView controls, because then they can reload their contents correctly.

tempFileBufferName¶

name: tempFileBufferName, type: String, persistent: no¶: If useTempFileBuffer is on and the result content of WebReportOutputs is stored in a temporary file then this is the path of the file.

parentLevelsUp¶

name: parentLevelsUp, type: Integer, default: 1, minimum: 0¶: For searching field values for HtmlEditor the same holds as for PlaceholderTranslator. See PlaceholderTranslator.parentlevelsUp for details.

WebReportOutputs¶

name: WebReportOutputs, type: String, persistent: no¶: Contains the finally created HTML document result after inserting the placeholder contents. The content of this field is not shown literally but rendered as Web document.

isHtmlEditorTestingEnabled¶

name: isHtmlEditorTestingEnabled, type: Bool, default: FALSE¶: Internal flag only for testing purposes. Do not change or use.
