CreateModuleList

MacroModule

genre	Test
author	Lennart Tautz
package	FMEwork/ReleaseMeVis
definition	CreateModuleList.def
see also	FilterModuleList
keywords	apa, module, list

Purpose

Create a list of modules by name prefix, or by package.

Usage

Enter the desired prefix (Name Prefix), or choose the desired package (In Package), and press Create.

Windows

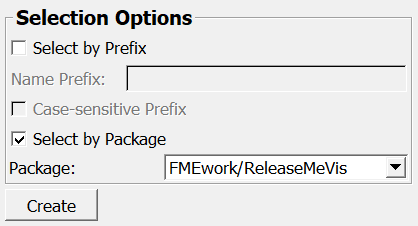

Default Panel

Output Fields

outDependencies

name: outDependencies, type: MLBase

An object that implements the Dependencies interface and contains the modules matching the prefix options.

Parameter Fields

Field Index

Case-sensitive Prefix: Bool

Create: Trigger

In Package: String

Name Prefix: String

outAvailablePackages: String

Select by Package: Bool

Select by Prefix: Bool

Visible Fields

Create

name: create, type: Trigger

Trigger this to create a module list.

Select by Prefix

name: inSelectByPrefix, type: Bool, default: FALSE

If checked, the output contains only modules that match the prefix options. If unchecked, the output contains all known modules.

Name Prefix

name: inNamePrefix, type: String

Prefix to match in module names.

Case-sensitive Prefix

name: inPrefixIsCaseSensitive, type: Bool, default: FALSE

If checked, the prefix is matched case-sensitive. If unchecked, prefixes and names are matched in lower case.

Select by Package

name: inSelectByPackage, type: Bool, default: FALSE

If checked, the output contains only modules from the selected package.

In Package

name: inPackage, type: String

Package to get modules from.

Hidden Fields

outAvailablePackages

name: outAvailablePackages, type: String, persistent: no
