CSOOffset

MLModule

author	Grzegorz Chlebus
package	FMEwork/ReleaseMeVis
dll	MLCSOOffset
definition	MLCSOOffset.def
see also	EuclideanDTF, SoCSOTransformEditor
keywords	buffer, offset, cso, margin, expansion, anisotropic

Purpose

Expand or shrink input CSOs along main axes.

Details

CSOs belonging to inCSOList0 should be:

• closed

• not self-intersecting

• in-plane

• laying on XY parallel planes

In “Shrink” offset mode “z” direction is disabled.

Known bugs The offset operation fails for some offset values. This is a known bug of the boost::geometry library which is used internally.

Windows

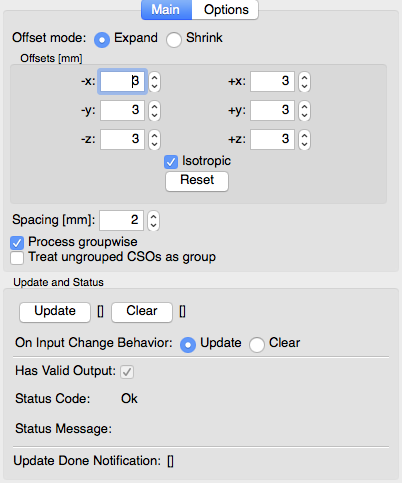

Default Panel

Input Fields

inCSOList0

name: inCSOList0, type: MLBase

Output Fields

outCSOList

name: outCSOList, type: MLBase

Parameter Fields

Field Index

+x: Double	Clear: Trigger	Reset: Trigger
+y: Double	Expand suffix: String	Shrink suffix: String
+z: Double	Has Valid Output: Bool	Spacing [mm]: Double
-x: Double	Isotropic: Bool	Status Code: Enum
-y: Double	Offset mode: Enum	Status Message: String
-z: Double	On Input Change Behavior: Enum	Threads: Integer
[]: Trigger	Points per ellipse: Integer	Treat ungrouped CSOs as group: Bool
Append offset value: Bool	Process groupwise: Bool	Update: Trigger

Visible Fields

Update

name: update, type: Trigger

Initiates update of all output field values.

Clear

name: clear, type: Trigger

Clears all output field values to a clean initial state.

On Input Change Behavior

name: onInputChangeBehavior, type: Enum, default: Clear, deprecated name: shouldUpdateAutomatically,shouldAutoUpdate

Declares how the module should react if a value of an input field changes.

Values:

Title	Name	Deprecated Name
​Update	​Update	​TRUE
​Clear	​Clear	​FALSE

Status Code

name: statusCode, type: Enum, persistent: no

Reflects module’s status (successful or failed computations) as one of some predefined enumeration values.

Values:

Title	Name
​Ok	​Ok
​Invalid input object	​Invalid input object
​Invalid input parameter	​Invalid input parameter
​Internal error	​Internal error

Status Message

name: statusMessage, type: String, persistent: no

Gives additional, detailed information about status code as human-readable message.

Has Valid Output

name: hasValidOutput, type: Bool, persistent: no

Indicates validity of output field values (success of computation).

[]

name: updateDone, type: Trigger, persistent: no

Notifies that an update was performed (Check status interface fields to identify success or failure).

+x

name: inPosXOffset, type: Double, default: 0, minimum: 0

Offset in direction of positive x axis [mm].

-x

name: inNegXOffset, type: Double, default: 0, minimum: 0

Offset in direction of negative x axis [mm].

+y

name: inPosYOffset, type: Double, default: 0, minimum: 0

Offset in direction of positive y axis [mm].

-y

name: inNegYOffset, type: Double, default: 0, minimum: 0

Offset in direction of negative y axis [mm].

+z

name: inPosZOffset, type: Double, default: 0, minimum: 0

Offset in direction of positive z axis [mm].

-z

name: inNegZOffset, type: Double, default: 0, minimum: 0

Offset in direction of negative z axis [mm].

Isotropic

name: inIsotropicMode, type: Bool, default: TRUE

Isotropic mode.

Points per ellipse

name: inPointsPerEllipse, type: Integer, default: 36, minimum: 4

Number of points which are generated per ellipse. Ellipses are used to close discontinuities appearing due to offsetting.

Spacing [mm]

name: inSpacing, type: Double, default: 1

This value is used to determine z coordinates of CSOs in case of extending along z direction.

Reset

name: inReset, type: Trigger

Set all offset values to zero.

Threads

name: inNumThreads, type: Integer, default: 8, minimum: 1

Number of threads used for computation.

Process groupwise

name: inShouldProcessGroupwise, type: Bool, default: TRUE

CSO size is influenced by other CSOs from the same CSOGroup.

Treat ungrouped CSOs as group

name: inShouldTreatUngroupedCSOsAsAGroup, type: Bool, default: FALSE

Treat ungrouped CSOs as a CSOGroup.

Expand suffix

name: inExpandLabelSuffix, type: String, default: _expanded

String appended to group name in Expand mode.

Shrink suffix

name: inShrinkLabelSuffix, type: String, default: _shrunk

String appended to group name in Shrink mode.

Append offset value

name: inShouldAppendOffsetValue, type: Bool, default: TRUE

Appends offset value to group name (only when Isotropic is on).

Offset mode

name: inOffsetMode, type: Enum, default: EXPAND

Offset mode (either Expand or Shrink).

Values:

Title	Name
​Expand	​EXPAND
​Shrink	​SHRINK
