FieldDifferenceViewer¶

MacroModule¶

genre	`Fields`
author	`Wolf Spindler`
package	`FMEstable/ReleaseMeVis`
definition	FieldDifferenceViewer.def
see also	`DicomTreeCompare`, `ImageCompare`
keywords	`Compare`, `difference`, `fields`

Purpose¶

FieldDifferenceViewer shows differences between strings from Input1 and Input2 as difference view created with the python library difflib. It is an easy solution for comparing tables or lists of values just by comparing their strings.

Note

A known issue is that the difference view of compared strings may fail if the compared strings contain html tags (the difference view is rendered as html code).

Windows¶

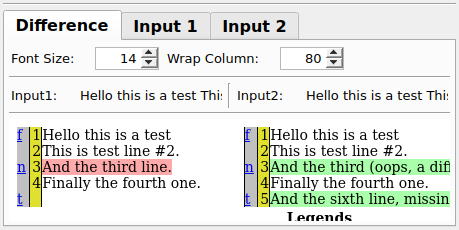

Default Panel¶

../../../Projects/FieldDifferenceViewer/Modules/mhelp/Images/Screenshots/FieldDifferenceViewer._default.png

Parameter Fields¶

Field Index¶

Font Size: Integer

htmlDiff: String

Input1: String

Input2: String

Wrap Column: Integer

Visible Fields¶

Input1¶

name: input1, type: String¶: Provides the first string to be compared.

Input2¶

name: input2, type: String¶: Provides the second string to be compared.

Font Size¶

name: fontSize, type: Integer, default: 14, minimum: 4¶: The size of the fonts to be used in displayed difference.

Wrap Column¶

name: wrapColumn, type: Integer, default: 80, minimum: 1¶: Specifies after which column long text lines shall be broken.

Hidden Fields¶

htmlDiff¶

name: htmlDiff, type: String, persistent: no¶
