CurveSelect

MLModule

authors	Bjoern Lindow, Christoph Brachmann
package	FMEstable/ReleaseMeVis
dll	MLCurveUtils
definition	MLCurveUtils.def
see also	CurveListConvert, CurveFilter
keywords	curve, curves, curvedata, curvelist, select, filter

Purpose

The module this selects one or more curves from a CurveList.

The remaining (deselected) curves are provided at the second output.

Windows

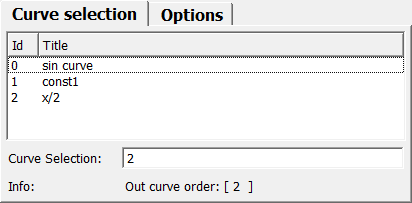

Default Panel

Input Fields

inputCurveList

name: inputCurveList, type: MLBase

Connect a CurveList object here.

Output Fields

outputCurveList

name: outputCurveList, type: MLBase

Contains all selected curves.

Note that this module does not copy and thus does not own the CurveData objects of this CurveList.

outputDeselectedCurveList

name: outputDeselectedCurveList, type: MLBase

Contains all deselected (remaining) curves.

Note that this module does not copy and thus does not own the CurveData objects of this CurveList.

Parameter Fields

Field Index

Curve Selection: String	Provide deselected curves at 2nd output: Bool
Curve Table String: String
curveTableColumnSeparator: String
curveTableRowSeparator: String
If selection string is empty, select all: Bool
Info: String
inputCurveIDs: String
numInputCurves: Integer

Visible Fields

Curve Selection

name: selectCurves, type: String, deprecated name: selectCurvesFld

Enter curve ids to be selected, separated by ‘,’ and/or ‘-’ for a range of curves, e.g. 4,7,8-10,12.

Info

name: info, type: String

Shows information about the state of the module.

Curve Table String

name: curveTableString, type: String

Shows a table with all the available curves and their indices.

Provide deselected curves at 2nd output

name: provideDeselectedCurves, type: Bool, default: FALSE

If checked, all deselected curves will be provided at the second output.

If selection string is empty, select all

name: takeNoneSelectedAsSelectAll, type: Bool, default: TRUE

If checked, empty selection string will be interpreted as full selection.

Hidden Fields

inputCurveIDs

name: inputCurveIDs, type: String, deprecated name: inputCurveIDsFld

numInputCurves

name: numInputCurves, type: Integer, default: 0, deprecated name: numInputCurvesFld

curveTableRowSeparator

name: curveTableRowSeparator, type: String, default: ,

curveTableColumnSeparator

name: curveTableColumnSeparator, type: String, default: @
