CppParameterInfoExample

MLModule

author	Jan-Martin Kuhnigk
package	FMEstable/ReleaseMeVis
dll	MLCppParameterInfoExample
definition	CppParameterInfoExample.def
see also	ParameterInfoInspector
keywords	test, example, tile, classifi, ExampleCppTileClassifier

Purpose

Example for a C++-based support for ParameterInfo, which allows convenient inspection (via ParameterInfoInspector) and storage (via JSON) in python.

Usage

The ParameterInfo objects can be retrieved from the outputs by

• Calling the wrapper function (.object().toDict() for outCppParameterInfo and .object().getParameterInfo() for outBaseWithParameterInfoExample), or

• Connecting the ParameterInfoInspector, or

• Enabling the Output Inspector (in View/Views) and left-clicking on one of the outputs

Check out the example network to try this out, and the ParameterInfoInspector sources for advanced usage.

Windows

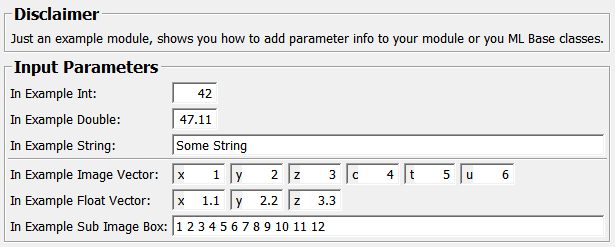

Default Panel

Output Fields

outCppParameterInfo

name: outCppParameterInfo, type: MLBase

Output with a C++ ParameterInfo object summarizing the input parameters

outBaseWithParameterInfoExample

name: outBaseWithParameterInfoExample, type: MLBase

Output with a C++ BaseWithParameterInfo, that also provides ParameterInfo, summarizing the input parameters (for the base object, not for the module, but in this example they are identical)

Parameter Fields

Field Index

In Example Double: Double

In Example Float Vector: Vector3

In Example Image Vector: IntVector6

In Example Int: Integer

In Example String: String

In Example Sub Image Box: String

Visible Fields

In Example Int

name: inExampleInt, type: Integer, default: 42

Some example integer parameter

In Example Double

name: inExampleDouble, type: Double, default: 47.11

Some example double parameter

In Example String

name: inExampleString, type: String, default: Some String

Some example string parameter

In Example Image Vector

name: inExampleImageVector, type: IntVector6, default: 1 2 3 4 5 6

Some example ImageVector parameter

In Example Float Vector

name: inExampleFloatVector, type: Vector3, default: 1.1 2.2 3.3

Some example float vector parameter

In Example Sub Image Box

name: inExampleSubImageBox, type: String, default: 1 2 3 4 5 6 7 8 9 10 11 12

Some example SubImageBox parameter
