CSOReduce

MLModule

genre	CSOModificator
author	Frank Heckel
package	FMEstable/ReleaseMeVis
dll	MLCSOMiscModulesStable
definition	MLCSOMiscModulesStable.def
see also	CSOAffineTransformationModificator, CSOSmooth
keywords	CSO, contour, segmentation, modification, reduction, quality

Windows

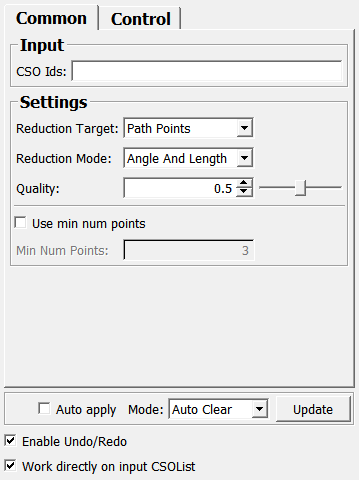

Default Panel

Input Fields

inCSOList

name: inCSOList, type: MLBase

Output Fields

outCSOList

name: outCSOList, type: MLBase

Parameter Fields

Field Index

addCSOToGroupMode: Enum	Finishing: Bool	Selection: Bool
addCSOToGroupWithId: Integer	id: Integer	Size: Float
addCSOToGroupWithLabel: String	isProcessing: Bool	Style: Enum
Auto apply: Bool	Min Num Points: Integer	Update: Trigger
Change settings of modified CSOs: Bool	Mode (updateMode): Enum	Use Min Num Points: Bool
Color (pathPointColor): Color	Mode (seedPointStyle): Enum	Value: Float
Color (seedPointColor): Color	Path Point Alpha: Float	Width: Float
CSO Ids: String	Quality: Float	Work directly on input CSOList: Bool
done: Trigger	Reduction Mode: Enum	Write Mode: Enum
emptyGroupBeforeGeneration: Bool	Reduction Target: Enum
Enable Undo/Redo: Bool	Seed Point Alpha: Float

Visible Fields

Mode (updateMode)

name: updateMode, type: Enum, default: AutoClear

Values:

Title	Name
​Off	​Off
​Auto Update	​AutoUpdate
​Auto Clear	​AutoClear

Auto apply

name: autoApply, type: Bool, default: FALSE

Update

name: apply, type: Trigger

Style

name: pathPointStyle, type: Enum, default: LineStyleSolid, deprecated name: pathPointLineStyle

Values:

Title	Name
​None	​LineStyleNone
​Solid	​LineStyleSolid
​Dashed	​LineStyleDashed
​Dotted	​LineStyleDotted
​Short Dashed	​LineStyleShortDashed

Width

name: pathPointWidth, type: Float, default: 1, deprecated name: pathPointLineWidth

Color (pathPointColor)

name: pathPointColor, type: Color, default: 1 1 0

Path Point Alpha

name: pathPointAlpha, type: Float, default: 1, minimum: 0, maximum: 1

Mode (seedPointStyle)

name: seedPointStyle, type: Enum, default: MarkerModeRect, deprecated name: markerMode

Values:

Title	Name
​None	​MarkerModeNone
​Rect	​MarkerModeRect
​Circle	​MarkerModeCircle
​Fixed Cirlce	​MarkerModeFixedCirlce

Size

name: seedPointSize, type: Float, default: 2, deprecated name: markerSize

Color (seedPointColor)

name: seedPointColor, type: Color, default: 0 1 0, deprecated name: markerColor

Seed Point Alpha

name: seedPointAlpha, type: Float, default: 1, minimum: 0, maximum: 1, deprecated name: markerAlpha

Write Mode

name: voxelWriteMode, type: Enum, default: VoxelWriteModeModule

Values:

Title	Name
​Id	​VoxelWriteModeId
​Const	​VoxelWriteModeConst
​Const Plus Id	​VoxelWriteModeConstPlusId
​Module	​VoxelWriteModeModule

Value

name: voxelWriteValue, type: Float, default: 1024

CSO Ids

name: csoIdList, type: String

Work directly on input CSOList

name: workDirectlyOnInputList, type: Bool, default: TRUE

Enable Undo/Redo

name: useUndoRedo, type: Bool, default: TRUE

Change settings of modified CSOs

name: changeSettingsForModifiedCSOs, type: Bool, default: FALSE

Finishing

name: listenToFinishingNotifications, type: Bool, default: TRUE

Selection

name: listenToSelectionNotifications, type: Bool, default: TRUE

Quality

name: quality, type: Float, default: 0.5, minimum: 0, maximum: 1

Reduction Mode

name: reductionMode, type: Enum, default: AngleAndLength

Values:

Title	Name
​Angle	​Angle
​Length	​Length
​Angle And Length	​AngleAndLength

Reduction Target

name: reductionTarget, type: Enum, default: PathPoints

In both cases, the thinning algorithm is applied to the path points. In the PathPoints case, the resulting CSOs have a single seed point and thinned out path points. In the SeedPoints case, the thinned out path points become the seed points and path points are interpolated between them. In the latter case, the number of seed points can actually increase. The geometry of the CSO is the same in both cases, just the distribution of seed and path points is different.

Values:

Title	Name	Description
​Seed Points	​SeedPoints	​The resulting CSOs will have seed points where they would have path points in PathPoints mode and additionally interpolating path points.
​Path Points	​PathPoints	​The resulting CSOs will have a single seed point and thinned out path points.

Use Min Num Points

name: useMinNumPoints, type: Bool, default: FALSE

Min Num Points

name: minNumPoints, type: Integer, default: 3, minimum: 3

Hidden Fields

isProcessing

name: isProcessing, type: Bool, default: FALSE

done

name: done, type: Trigger

emptyGroupBeforeGeneration

name: emptyGroupBeforeGeneration, type: Bool, default: FALSE

addCSOToGroupMode

name: addCSOToGroupMode, type: Enum, default: AddToGroupByLabel

Values:

Title	Name
​None	​AddToGroupNone
​By Label	​AddToGroupByLabel
​By Id	​AddToGroupById

addCSOToGroupWithLabel

name: addCSOToGroupWithLabel, type: String

addCSOToGroupWithId

name: addCSOToGroupWithId, type: Integer, default: -1

id

name: id, type: Integer, default: 0
