AlgorithmModuleExample

MLModule

genre	Examples
author	Christian Kanthak
package	FMEstable/ReleaseMeVis
dll	MLAlgorithmModuleExamples
definition	MLAlgorithmModuleExamples.def
see also	AlgorithmModuleExampleWithOutputImage
keywords	algorithm, module, base, example, calculation, processing

Purpose

The module demonstrates the use of base ML module class “AlgorithmModule” to implement an algorithm which does not produce any output image.

This module takes a string and reverts it. An empty string is evaluated as invalid input value.

Usage

Have a look at module’s source code project to learn how to implement an algorithm ML module which does not produce any output image.

Windows

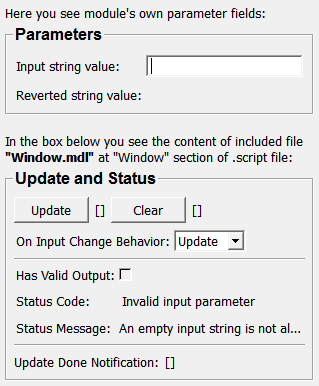

Default Panel

Parameter Fields

Field Index

[]: Trigger	Update: Trigger
Clear: Trigger
Has Valid Output: Bool
Input string value: String
On Input Change Behavior: Enum
Reverted string value: String
Status Code: Enum
Status Message: String

Visible Fields

Update

name: update, type: Trigger

Initiates update of all output field values.

Clear

name: clear, type: Trigger

Clears all output field values to a clean initial state.

On Input Change Behavior

name: onInputChangeBehavior, type: Enum, default: Update, deprecated name: shouldUpdateAutomatically,shouldAutoUpdate

Declares how the module should react if a value of an input field changes.

Values:

Title	Name	Deprecated Name
​Update	​Update	​TRUE
​Clear	​Clear	​FALSE

Status Code

name: statusCode, type: Enum, persistent: no

Reflects module’s status (successful or failed computations) as one of some predefined enumeration values.

Values:

Title	Name
​Ok	​Ok
​Invalid input object	​Invalid input object
​Invalid input parameter	​Invalid input parameter
​Internal error	​Internal error

Status Message

name: statusMessage, type: String, persistent: no

Gives additional, detailed information about status code as human-readable message.

Has Valid Output

name: hasValidOutput, type: Bool, persistent: no

Indicates validity of output field values (success of computation).

[]

name: updateDone, type: Trigger, persistent: no

Notifies that an update was performed (Check status interface fields to identify success or failure).

Input string value

name: inString, type: String

The example input string field.

Reverted string value

name: outString, type: String, persistent: no

The example output string field.
