SoEvent Class Reference

Base class for all events. More...

#include <Inventor/events/SoEvent.h>

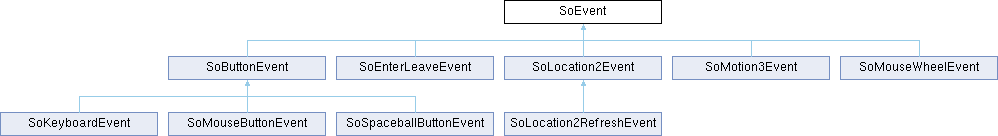

Inheritance diagram for SoEvent:

Public Types
enum	MouseButtonsMask {   NO_MOUSEBUTTON_MASK = 0 , LEFT_MOUSEBUTTON_MASK = 1 , MIDDLE_MOUSEBUTTON_MASK = 2 , RIGHT_MOUSEBUTTON_MASK = 4 ,   ALL_MOUSEBUTTONS_MASK = LEFT_MOUSEBUTTON_MASK + MIDDLE_MOUSEBUTTON_MASK + RIGHT_MOUSEBUTTON_MASK }
	This describes the bit mask values of setButtonMask and getButtonMask. More...

Public Member Functions
	SoEvent ()
	Constructor and destructor. More...
virtual	~SoEvent ()
	Constructor and destructor. More...
virtual SoType	getTypeId () const
	Return the type id for this event instance. More...
bool	isOfType (SoType type) const
	This returns TRUE if the event is an instance of or derived from an event of the passed type. More...
void	setTime (SbTime t)
	Set the time at which the event occurred. More...
SbTime	getTime () const
	Get the time at which the event occurred. More...
void	setPosition (const SbVec2s &p)
	Set the window pixel location of the cursor when the event occurred. More...
const SbVec2s &	getPosition () const
	Get position in pixel coodinates. More...
const SbVec2s &	getPosition (const SbViewportRegion &vpRgn) const
	Get position relative to the specified viewport bounds. More...
const SbVec2f &	getNormalizedPosition (const SbViewportRegion &vpRgn) const
	Get the normalized location of the cursor when the event occurred, relative to the specified viewport region. More...
void	setShiftDown (bool isDown)
	Set whether the modifier keys were down when the event occurred. More...
void	setCtrlDown (bool isDown)
	Set whether the modifier keys were down when the event occurred. More...
void	setAltDown (bool isDown)
	Set whether the modifier keys were down when the event occurred. More...
bool	wasShiftDown () const
	Get whether the modifier keys were down when the event occurred. More...
bool	wasCtrlDown () const
	Get whether the modifier keys were down when the event occurred. More...
bool	wasAltDown () const
	Get whether the modifier keys were down when the event occurred. More...
void	setMouseButtonMask (int mask)
	Get which mouse buttons are currently pressed (as bit mask) More...
int	getMouseButtonMask () const
	Set which mouse buttons are currently pressed. More...

Static Public Member Functions
static SoType	getClassTypeId ()
	Return the type id for the SoEvent class. More...
static void	initClass ()
	Initializes base event class. More...
static void	initClasses ()
	Initialize ALL Inventor event classes. More...

Detailed Description

SoEvent is the base class for events in the Inventor event model. An event typically represents a user action, such as a mouse button being pressed or a keyboard key being released. SoEvent contains general information found in all Inventor events, including the time the event occurred, the position of the locater when the event occurred, and the state of the modifier keys when the event occurred.

See Also

SoButtonEvent, SoKeyboardEvent, SoLocation2Event, SoMotion3Event, SoMouseButtonEvent, SoSpaceballButtonEvent, SoHandleEventAction, SoEventCallback, SoSelection, SoInteraction

Definition at line 84 of file SoEvent.h.

Member Enumeration Documentation

MouseButtonsMask

enum SoEvent::MouseButtonsMask

Enumerator
NO_MOUSEBUTTON_MASK
LEFT_MOUSEBUTTON_MASK
MIDDLE_MOUSEBUTTON_MASK
RIGHT_MOUSEBUTTON_MASK
ALL_MOUSEBUTTONS_MASK

Definition at line 88 of file SoEvent.h.

Constructor & Destructor Documentation

SoEvent()

SoEvent::SoEvent

(

)

~SoEvent()

virtual SoEvent::~SoEvent ( )

virtual

Member Function Documentation

getClassTypeId()

static SoType SoEvent::getClassTypeId ( )

inlinestatic

Definition at line 105 of file SoEvent.h.

getMouseButtonMask()

int SoEvent::getMouseButtonMask ( ) const

inline

Definition at line 149 of file SoEvent.h.

getNormalizedPosition()

const SbVec2f& SoEvent::getNormalizedPosition

(

const SbViewportRegion &

vpRgn

)

const

The returned value will lie between 0.0 and 1.0.

getPosition() [1/2]

const SbVec2s& SoEvent::getPosition ( ) const

inline

Definition at line 122 of file SoEvent.h.

getPosition() [2/2]

const SbVec2s& SoEvent::getPosition

(

const SbViewportRegion &

vpRgn

)

const

getTime()

SbTime SoEvent::getTime ( ) const

inline

Definition at line 114 of file SoEvent.h.

getTypeId()

virtual SoType SoEvent::getTypeId ( ) const

virtual

initClass()

static void SoEvent::initClass ( )

static

initClasses()

static void SoEvent::initClasses ( )

static

isOfType()

bool SoEvent::isOfType

(

SoType

type

)

const

setAltDown()

void SoEvent::setAltDown ( bool  isDown )

inline

Definition at line 137 of file SoEvent.h.

setCtrlDown()

void SoEvent::setCtrlDown ( bool  isDown )

inline

Definition at line 135 of file SoEvent.h.

setMouseButtonMask()

void SoEvent::setMouseButtonMask ( int  mask )

inline

Definition at line 147 of file SoEvent.h.

setPosition()

void SoEvent::setPosition ( const SbVec2s &  p )

inline

The position is relative to the lower left corner of the window in which the event occurred.

Definition at line 119 of file SoEvent.h.

setShiftDown()

void SoEvent::setShiftDown ( bool  isDown )

inline

Definition at line 133 of file SoEvent.h.

setTime()

void SoEvent::setTime ( SbTime  t )

inline

Definition at line 112 of file SoEvent.h.

wasAltDown()

bool SoEvent::wasAltDown ( ) const

inline

Definition at line 144 of file SoEvent.h.

wasCtrlDown()

bool SoEvent::wasCtrlDown ( ) const

inline

Definition at line 142 of file SoEvent.h.

wasShiftDown()

bool SoEvent::wasShiftDown ( ) const

inline

Definition at line 140 of file SoEvent.h.

---

The documentation for this class was generated from the following file:

• /home/jenkins/workspaces/mevislab/3.7.2_1/build/MeVis/ThirdParty/Sources/Inventor/include/Inventor/events/SoEvent.h
