RemoveCSOs

MLModule

author	Grzegorz Chlebus
package	FMEstable/ReleaseMeVis
dll	MLRemoveCSOs
definition	MLRemoveCSOs.def
see also	CSOFilter, CSOInfo, CSOMerge, CSODifference, CSOCompare
keywords	cso, edit, remove, delete, modify, self, intersecting, non, planar, closed, open

Purpose

RemoveCSOs removes specific types from the input CSO list and passes a newly calculated one to the output which has been adjusted from the selected CSO types. Currently open, closed, self intersecting, and non planar CSOs can be removed.

Details

• If any CSO belongs to more than one group, for example if it is open and non planar, then it will be removed from the output even if only one of those categories is selected for removal.
• This module does not modify and CSOGroup information; even if all CSOs of one group are removed then group information remains unchanged.

Windows

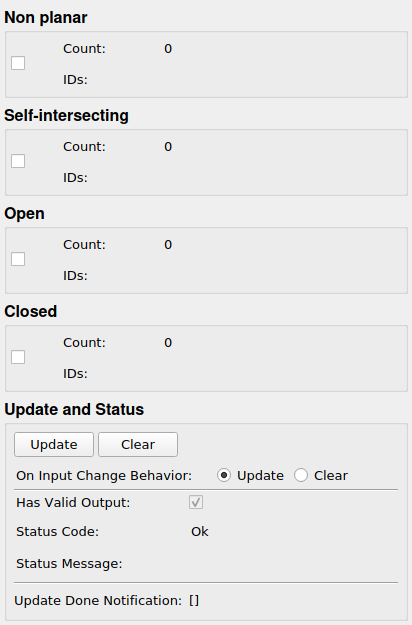

Default Panel

Input Fields

inCSOList0

name: inCSOList0, type: MLBase

Base field which holds the input CSOList object.

Output Fields

outCSOList

name: outCSOList, type: MLBase

Base field providing the modified CSOList object.

Parameter Fields

Field Index

[]: Trigger	IDs (outNonPlanarCSOsIDs): String	On Input Change Behavior: Enum
Clear: Trigger	IDs (outClosedCSOsIDs): String	Status Code: Enum
Count: (outNonPlanarCSOsCount): Integer	IDs (outOpenCSOsIDs): String	Status Message: String
Count: (outClosedCSOsCount): Integer	IDs (outSelfIntersectingCSOsIDs): String	Update: Trigger
Count: (outOpenCSOsCount): Integer	In Should Remove Closed CSOs: Bool
Count: (outSelfIntersectingCSOsCount): Integer	In Should Remove Non Planar CSOs: Bool
doNotClearOnFailedUpdate: Bool	In Should Remove Open CSOs: Bool
Has Valid Output: Bool	In Should Remove Self Intersecting CSOs: Bool

Visible Fields

Update

name: update, type: Trigger

Initiates update of all output field values.

Clear

name: clear, type: Trigger

Clears all output field values to a clean initial state.

On Input Change Behavior

name: onInputChangeBehavior, type: Enum, default: Clear, deprecated name: shouldAutoUpdate,shouldUpdateAutomatically

Declares how the module should react if a value of an input field changes.

Status Code

name: statusCode, type: Enum, persistent: no

Reflects module’s status (successful or failed computations) as one of some predefined enumeration values.

Status Message

name: statusMessage, type: String, persistent: no

Gives additional, detailed information about status code as human-readable message.

Has Valid Output

name: hasValidOutput, type: Bool, persistent: no

Indicates validity of output field values (success of computation).

[]

name: updateDone, type: Trigger, persistent: no

Notifies that an update was performed (Check status interface fields to identify success or failure).

In Should Remove Non Planar CSOs

name: inShouldRemoveNonPlanarCSOs, type: Bool, default: FALSE

If enabled then non planar CSOs are removed, otherwise not.

Count: (outNonPlanarCSOsCount)

name: outNonPlanarCSOsCount, type: Integer, persistent: no

Shows the number of non planar CSOs which have been removed.

IDs (outNonPlanarCSOsIDs)

name: outNonPlanarCSOsIDs, type: String, persistent: no

The list of ids of removed non planar CSOs; empty if none has been removed.

In Should Remove Closed CSOs

name: inShouldRemoveClosedCSOs, type: Bool, default: FALSE

If enabled then closed CSOs are removed, otherwise not.

Count: (outClosedCSOsCount)

name: outClosedCSOsCount, type: Integer, persistent: no

The number of removed closed CSOs; empty if none has been removed.

IDs (outClosedCSOsIDs)

name: outClosedCSOsIDs, type: String, persistent: no

The list of ids of removed closed CSOs; empty if none have been removed.

In Should Remove Open CSOs

name: inShouldRemoveOpenCSOs, type: Bool, default: FALSE

If enabled then open CSOs are removed, otherwise not.

Count: (outOpenCSOsCount)

name: outOpenCSOsCount, type: Integer, persistent: no

The number of removed open CSOs; empty if none has been removed.

IDs (outOpenCSOsIDs)

name: outOpenCSOsIDs, type: String, persistent: no

The list of ids of removed open CSOs; empty if none have been removed.

In Should Remove Self Intersecting CSOs

name: inShouldRemoveSelfIntersectingCSOs, type: Bool, default: FALSE

If enabled then self intersecting CSOs are removed, otherwise not.

Count: (outSelfIntersectingCSOsCount)

name: outSelfIntersectingCSOsCount, type: Integer, persistent: no

The number of removed self intersecting CSOs; empty if none have been removed.

IDs (outSelfIntersectingCSOsIDs)

name: outSelfIntersectingCSOsIDs, type: String, persistent: no

The list of ids of removed self intersecting CSOs; empty if none has been removed.

Hidden Fields

doNotClearOnFailedUpdate

name: doNotClearOnFailedUpdate, type: Bool, persistent: no

Prevents automated clear after update failed. This does not affect status fields. It enables the developer to analyze module’s state after failure.
