WEMSmooth¶

MLModule¶

genre	`WEMProcessing`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`MLWEMModules`
definition	MLWEMModules.def
see also	`SoWEMRenderer`
inherits from	`WEMProcessor`
keywords	`surface`, `Laplace`

Purpose¶

The module WEMSmooth smooths a WEM by applying either a surface smooth (Laplacian), or a smoothing of the surface’s normals.

Usage¶

Note that the module will not smooth single-colored faces. If a WEM patch consists of only single-colored faces, the module will smooth no polygons and print a warning to the console.

Details¶

In general, the Smoothing Factor should be adjusted to a value from 0.5 to 0.9. The Num. Smoothing Passes should be adjusted to a value from 20 to 50. With Num. Smoothing Passes, choose a low value of smoothing passes, such as 2 or 5.

If Use normals smoothing is chosen, only the node normals are smoothed; no node’s position is modified. This way, you can enhance the overall appearance without modifying the volume or surface area at all. It is recommended to be used as late as possible in the WEM-processing pipeline.

Note that the smoothed normals are stored in the WEM and are used for the visualization, but the normals are recomputed by modules like WEMReducePolygons or WEMSubdivide. So, if a WEMReducePolygons module is used after smoothing, the result of an eventual normal smoothing is lost. In such a case, use another WEMSmooth with only normal smoothing enabled directly before the SoWEMRenderer.

Windows¶

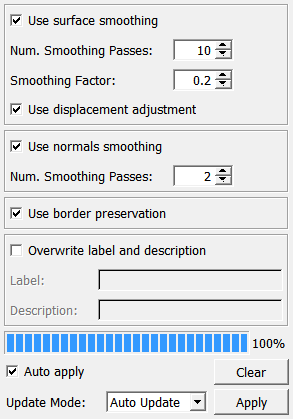

Default Panel¶

../../../Modules/ML/MLWEMModules/mhelp/Images/Screenshots/WEMSmooth._default.png

Input Fields¶

inWEM¶

name: inWEM, type: WEM(MLBase)¶: For accessing this object via scripting see the Scripting Reference: MLWEMWrapper.

Output Fields¶

outWEM¶

name: outWEM, type: WEM(MLBase)¶: The smoothed WEM.

For accessing this object via scripting see the Scripting Reference: MLWEMWrapper.

Parameter Fields¶

Field Index¶

`Apply`: `Trigger`	`listenToFinishNotifications`: `Bool`	`Smoothing Factor`: `Float`
`Auto Apply`: `Bool`	`listenToRepaintNotifications`: `Bool`	`triangulationMode`: `Enum`
`Clear`: `Trigger`	`listenToSelectionChangedNotifications`: `Bool`	`Update Mode`: `Enum`
`Description`: `String`	`Num. Smoothing Passes (smoothingPassesLaplace)`: `Integer`	`Use border preservation`: `Bool`
`elapsedTime`: `Float`	`Num. Smoothing Passes (smoothingPassesNormals)`: `Integer`	`Use displacement adjustment`: `Bool`
`id`: `Integer`	`Overwrite label and description`: `Bool`	`Use normals smoothing`: `Bool`
`isProcessing`: `Bool`	`progress`: `Float`	`Use surface smoothing`: `Bool`
`Label`: `String`	`shouldComputeNormals`: `Bool`	`workDirectlyOnInputWEMs`: `Bool`

Visible Fields¶

Auto Apply¶

name: autoApply, type: Bool, default: TRUE¶: If checked, all parameter changes take immediately effect.

Update Mode¶

name: updateMode, type: Enum, default: AutoUpdate, deprecated name: autoUpdate¶: Defines how this module should react on any input field change.

Apply¶

name: apply, type: Trigger¶: If pressed, the smoothing algorithm is applied on the WEM.

Clear¶

name: clear, type: Trigger¶: If pressed, the output WEM is cleared (made empty).

Overwrite label and description¶

name: overwriteLabelDescription, type: Bool, default: FALSE¶: If checked, label and description strings are set in the output WEM to Label and Description.

Label¶

name: label, type: String¶: Sets a label string in the output WEM.

Description¶

name: description, type: String¶: Sets a description string in the output WEM.

Use surface smoothing¶

name: useLaplacianSmooth, type: Bool, default: TRUE¶: If checked, a Laplacian surface smoothing is performed.

Smoothing Factor¶

name: smoothingFactor, type: Float, default: 0.2, minimum: 0, maximum: 1¶: Sets a smoothing factor. A value of 0 means no smoothing at all.

Num. Smoothing Passes (smoothingPassesLaplace)¶

name: smoothingPassesLaplace, type: Integer, default: 10, minimum: 0¶: Sets the number of smoothing passes for Laplacian surface smoothing.

Use displacement adjustment¶

name: useDisplacementAdjustment, type: Bool, default: TRUE¶

If checked, the surrounding of the currently smoothed node is displaced in a way that the overall shrinking effect is diminished.

NOTE: this option works best if all the polygons of the WEM are roughly the same size and almost equilateral. When the WEM features highly irregular or elongated polygons, the resulting WEM will probably look very rough or even broken.

Use border preservation¶

name: useBorderPreservation, type: Bool, default: TRUE¶: If checked, no border nodes’ positions or normals are altered.

Use normals smoothing¶

name: useNormalSmooth, type: Bool, default: FALSE¶: If checked, a normal smoothing is performed.

Note that the normal smooth is applied after applying an optional surface smoothing.
