WEMPerformance

MacroModule
genre WEMInformation
author MeVis Medical Solutions AG
package MeVisLab/Standard
definition MLWEMModules.def
see also WEMInfo
keywords information, time, measurement

Purpose

The WEMPerformance module displays the elapsed times and total elapsed time for all WEM modules in the network.

Usage

Add the WEMPerformance module to any network containing WEM modules. If WEM modules are added or removed after the creation of the WEMPerformance module press the Reread Network button.

Windows

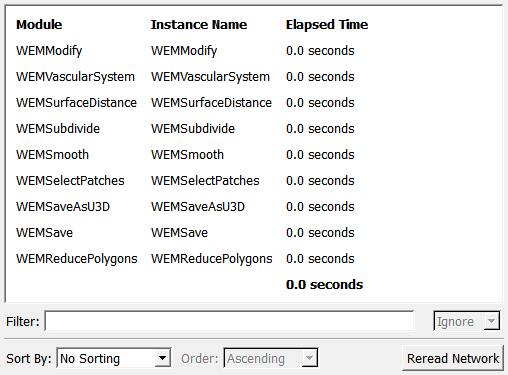

Main

../../../Modules/ML/MLWEMModules/mhelp/Images/Screenshots/WEMPerformance.Main.png

Parameter Fields

Field Index

Filter: String
Module Mode: Enum
Order: Enum
Report: String
Reread Network: Trigger
Sort By: Enum

Visible Fields

Report

name: report, type: String, persistent: no

Shows the found modules and their computation times in a HTML report.

Filter

name: moduleString, type: String

Add WEM module names as a comma- or space-separated list in the textfield. Depending on the setting of the Module Mode, those modules will be listed or ignored. If no modules names were entered, all modules are shown, independant of the show/ignore setting.

There is no need to enter the full name of the WEM modules that need to be filtered: substring matching is performed on the filter string. Matching is done both on the module names themselves and on the instance names. Have a look at the example network to see how the filter can be used.

Module Mode

name: moduleMode, type: Enum, default: IGNORE_MODULES

Sets if the list of given names will be listed or ignored.

Values:

Title Name
Show SHOW_MODULES
Ignore IGNORE_MODULES

Sort By

name: sortBy, type: Enum, default: NO_SORTING

Sort module list by specified sorting. Possible values are ‘No Sorting’ (modules are listed by creation time), Module Name, Instance Name or Elapsed Time. The Elapsed Time sorting allows for a good overview of the slowest modules.

Values:

Title Name
No Sorting NO_SORTING
Module Name MODULE_NAME
Instance Name INSTANCE_NAME
Elapsed Time ELAPSED_TIME

Order

name: sortOrder, type: Enum, default: ASCENDING

Controls how the sorting is ordered, ascending or descending.

Values:

Title Name
Ascending ASCENDING
Descending DESCENDING

Reread Network

name: rereadNetwork, type: Trigger

Click this button to refresh the list of registered WEM modules. When the WEMPerformance module is created, this is done automatically.

You only need to update the module list manually after creation of new or deletion of existing WEM modules.
