WEMLevelSetFilter¶

MLModule¶

author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`MLOpenVDB`
definition	MLOpenVDB.def
inherits from	`WEMLevelSetFilterBase`
keywords	`gauss`, `mean`, `meancurvature`, `laplace`, `median`, `erode`, `dilate`, `close`, `open`

Purpose¶

The WEMLevelSetFilter allows for applying level set filters to a WEM by transforming the mesh into a level set voxel grid, applying a filter, and remeshing the result.

It utilizes the OpenVDB library.

Windows¶

Default Panel¶

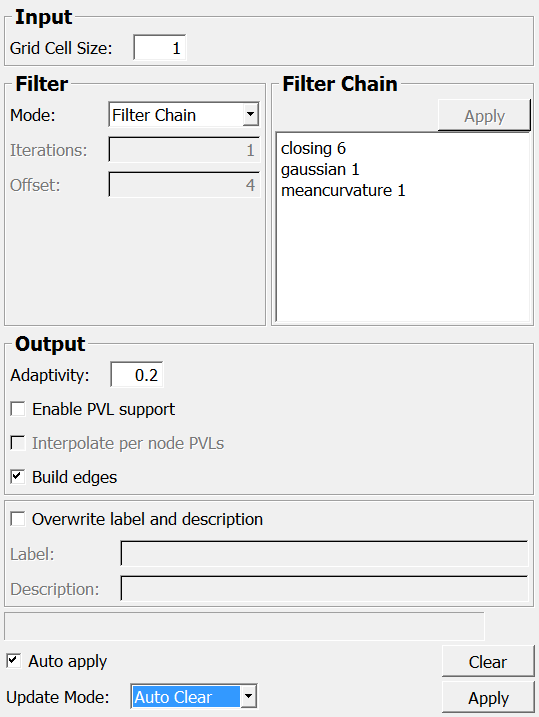

../../../Projects/MLOpenVDB/MLOpenVDB/Modules/mhelp/Images/Screenshots/WEMLevelSetFilter._default.png

Parameter Fields¶

Field Index¶

`Adaptivity`: `Double`	`Grid Cell Size`: `Double`	`Mode`: `Enum`
`Apply`: `Trigger`	`id`: `Integer`	`Offset`: `Double`
`Auto Apply`: `Bool`	`Interpolate per node PVLs`: `Bool`	`Overwrite label and description`: `Bool`
`Build Edges`: `Bool`	`isProcessing`: `Bool`	`progress`: `Float`
`Clear`: `Trigger`	`Iterations`: `Integer`	`shouldComputeNormals`: `Bool`
`Description`: `String`	`Label`: `String`	`triangulationMode`: `Enum`
`elapsedTime`: `Float`	`listenToFinishNotifications`: `Bool`	`Update Mode`: `Enum`
`Enable PVL support`: `Bool`	`listenToRepaintNotifications`: `Bool`	`workDirectlyOnInputWEMs`: `Bool`
`filterChain`: `String`	`listenToSelectionChangedNotifications`: `Bool`

Visible Fields¶

Auto Apply¶

name: autoApply, type: Bool, default: TRUE¶

see WEMGenerator.autoApply

Update Mode¶

name: updateMode, type: Enum, default: AutoUpdate, deprecated name: autoUpdate¶

see WEMGenerator.updateMode

Apply¶

name: apply, type: Trigger¶

see WEMGenerator.apply

Clear¶

name: clear, type: Trigger¶

see WEMGenerator.clear

Overwrite label and description¶

name: overwriteLabelDescription, type: Bool, default: FALSE¶

see WEMGenerator.overwriteLabelDescription

Label¶

name: label, type: String¶

see WEMGenerator.label

Description¶

name: description, type: String¶

see WEMGenerator.description

Grid Cell Size¶

name: gridCellSize, type: Double, default: 1¶

see WEMLevelSetFilterBase.gridCellSize

Adaptivity¶

name: adaptivity, type: Double, default: 0.2¶

see WEMLevelSetFilterBase.adaptivity

Build Edges¶

name: buildEdges, type: Bool, default: TRUE¶

see WEMLevelSetFilterBase.buildEdges

Enable PVL support¶

name: enablePVLSupport, type: Bool, default: FALSE¶

see WEMLevelSetFilterBase.enablePVLSupport

Interpolate per node PVLs¶

name: interpolatePerNodePVLs, type: Bool, default: FALSE¶

see WEMLevelSetFilterBase.interpolatePerNodePVLs

Mode¶

name: mode, type: Enum, default: Gauss¶: Defines the filter that is applied.

Values:

Title	Name	Description
Laplace	Laplace
Mean Curvature	MeanCurvature
Median	Median
Mean	Mean
Gauss	Gauss
Erode	Erode
Dilate	Dilate
Open	Open
Close	Close
Filter Chain	FilterChain	If this is selected, the filter is defined by the `filterChain` specification.

Iterations¶

name: iterations, type: Integer, default: 1¶: Sets the number of iterations for filters that support iterations.

Offset¶

name: offset, type: Double, default: 1, minimum: 0¶: Sets the offset for the Close, Open, Dilate, or Erode filters.

Hidden Fields¶

isProcessing¶

name: isProcessing, type: Bool, persistent: no¶

see WEMGenerator.isProcessing

elapsedTime¶

name: elapsedTime, type: Float, persistent: no¶

see WEMGenerator.elapsedTime

id¶

name: id, type: Integer, default: 0¶

see WEMGenerator.id

shouldComputeNormals¶

name: shouldComputeNormals, type: Bool, default: TRUE¶

see WEMGenerator.shouldComputeNormals

workDirectlyOnInputWEMs¶

name: workDirectlyOnInputWEMs, type: Bool, default: FALSE¶

see WEMProcessor.workDirectlyOnInputWEMs

listenToFinishNotifications¶

name: listenToFinishNotifications, type: Bool, default: TRUE¶

see WEMProcessor.listenToFinishNotifications

listenToRepaintNotifications¶

name: listenToRepaintNotifications, type: Bool, default: TRUE¶

see WEMProcessor.listenToRepaintNotifications

listenToSelectionChangedNotifications¶

name: listenToSelectionChangedNotifications, type: Bool, default: TRUE¶

see WEMProcessor.listenToSelectionChangedNotifications

progress¶

name: progress, type: Float, persistent: no¶

see WEMProcessor.progress

triangulationMode¶

name: triangulationMode, type: Enum, default: Strip¶

see WEMProcessor.triangulationMode

filterChain¶

name: filterChain, type: String¶

Sets the filter chain is used when Mode is set to FilterChain.

It specifies a chain of filters to be applied, one filter per row. The available filters are:

gaussian [iterations]
meancurvature [iterations]
mean [iterations]
median [iterations]
laplacian [iterations]
opening [distance]
closing [distance]
dilate [distance]
erode [distance]

Comment chars are //, so you can comment the filter chains.

The following will perform two Gaussian smoothing iterations and one dilate iteration with offset 3.5:

// first two gaussian iterations
gaussian 2
// then a dilation
dilate 3.5
