WEMDicomSave¶

MacroModule¶

genre	`DICOM`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
definition	WEMDicomSave.def
see also	`WEMDicomLoad`, `WEMSave`, `WEMLoad`
keywords	`save`, `store`, `write`, `mesh`, `surface`, `segmentation`, `object`, `sso`

Purpose¶

The module WEMDicomSave saves a WEM object as a DICOM Surface Segmentation Object.

Usage¶

Connect a WEM to inWEM and some reference DICOM tree to inRefTree, fill in the required fields, and press Save.

Details¶

The module will copy a number of required tags from inRefTree. Each WEM patch will be put into its own segment. If you require something different, you need to copy this module (or use the wrapper used in this module directly) and modify the use of addSurface and addSegment accordingly.

Windows¶

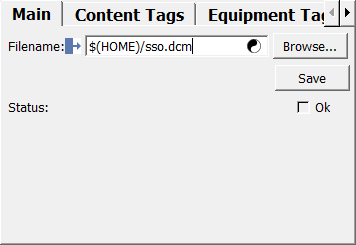

Default Panel¶

../../../Modules/Macros/WEMDicomStorage/mhelp/Images/Screenshots/WEMDicomSave._default.png

Input Fields¶

inWEM¶

name: inWEM, type: WEM(MLBase)¶: Connect a WEM object to this input.

For accessing this object via scripting see the Scripting Reference: MLWEMWrapper.

inRefTree¶

name: inRefTree, type: DicomTree(MLBase)¶: Connect a reference DICOM tree to this input. If you only have a reference image, you can use GetDicomTreeFromImage to extract the DICOM information.

For accessing this object via scripting see the Scripting Reference: MLABDicomTree.

Parameter Fields¶

Field Index¶

`Algorithm Name`: `String`	`Copy Equipment Tags From Reference`: `Bool`	`Save`: `Trigger`
`Algorithm Type`: `Enum`	`Device Serial Number`: `String`	`Scheme`: `String`
`Algorithm Version`: `String`	`Filename`: `String`	`segmentationPropertyMappingJSON`: `String`
`Code`: `String`	`Instance Number`: `Integer`	`Series Number`: `Integer`
`Content Creators Name`: `String`	`Manufacturer`: `String`	`Set Now`: `Trigger`
`Content Date`: `String`	`Manufacturers Model Name`: `String`	`Software Versions`: `String`
`Content Description`: `String`	`Meaning`: `String`	`Status`: `String`
`Content Label`: `String`	`Ok`: `Bool`
`Content Time`: `String`	`referenceReferenceTree`: `Bool`

Visible Fields¶

Filename¶

name: filename, type: String¶: Sets the filename to save the resulting DICOM file under.

Save¶

name: save, type: Trigger¶: When pressed, the generation and saving of the DICOM file is triggered.

Status¶

name: status, type: String, persistent: no¶: Shows error reasons if Ok is not true; otherwise, it will just show “Ok”.

Ok¶

name: ok, type: Bool, persistent: no¶: Shows whether the last save operation performed without problems.

Copy Equipment Tags From Reference¶

name: copyEquipmentTagsFromReference, type: Bool, default: TRUE¶: If checked, copies the equipment tags from inRefTree; otherwise, the equipment tag values must be filled.

Manufacturer¶

name: manufacturer, type: String¶: Sets the value of the Manufacturer (0008,0070) tag.

Manufacturers Model Name¶

name: manufacturersModelName, type: String¶: Sets the value of the ManufacturersModelName (0008,1090) tag.

Device Serial Number¶

name: deviceSerialNumber, type: String¶: Sets the value of the DeviceSerialNumber (0008,1000) tag.

Software Versions¶

name: softwareVersions, type: String¶: Sets the value of the SoftwareVersions (0008,1020) tag.

Set Now¶

name: setContentDateTimeToNow, type: Trigger¶: Sets the value of Content Date and Content Time to the current time.

Content Date¶

name: contentDate, type: String¶: Sets the value of the ContentDate (0008,0023) tag.

Content Time¶

name: contentTime, type: String¶: Sets the value of the ContentTime (0008,0033) tag.

Content Label¶

name: contentLabel, type: String¶: Sets the value of the ContentLabel (0070,0080) tag.

Content Description¶

name: contentDescription, type: String¶: Sets the value of the ContentDescription (0070,0081) tag.

Content Creators Name¶

name: contentCreatorsName, type: String¶: Sets the value of the ContentCreatorsName (0070,0084) tag.

Series Number¶

name: seriesNumber, type: Integer, default: 1, minimum: 1¶

Sets the value of the SeriesNumber (0020,0011) tag.

This should be the number of the (generated) series in the study given by inRefTree. To be correct, one would need to know how many series have been generated for the study already, but probably one can get away with an incorrect number (there is always the SeriesInstanceUID that is guaranteed to be unique).

Instance Number¶

name: instanceNumber, type: Integer, default: 1, minimum: 1¶

Sets the value of the InstanceNumber (0020,0013) tag.

The number of the generated instance in the current (generated) series. 1 should always be correct.

Algorithm Type¶

name: algorithmType, type: Enum, default: AUTOMATIC¶: Sets the value of the SegmentAlgorithmType (0062,0008) tag in the SegmentSequence (0062,0002) sequence.

Values:

Title	Name
Automatic	AUTOMATIC
Semiautomatic	SEMIAUTOMATIC
Manual	MANUAL

Algorithm Name¶

name: algorithmName, type: String¶

Sets the value of the AlgorithmName (0066,0036) tag in the SegmentSurfaceGenerationAlgorithmIdentificationSequence (0066,002D) sequence in the ReferencedSurfaceSequence (0066,002B) sequence in the SegmentSequence (0062,0002) sequence.

This should be the user-defined name of the algorithm used to generate the surface.

Algorithm Version¶

name: algorithmVersion, type: String¶

Sets the value of the AlgorithmVersion (0066,0031) tag in the SegmentSurfaceGenerationAlgorithmIdentificationSequence (0066,002D) sequence in the ReferencedSurfaceSequence (0066,002B) sequence in the SegmentSequence (0062,0002) sequence.

This should be the user-defined version string of the algorithm used to generate the surface.

Code¶

name: algorithmCode, type: String¶

Sets the value of the CodeValue (0008,0100) tag (or LongCodeValue (0008,0119) tag) in the AlgorithmFamilyCodeSequence (0066,002F) sequence in the SegmentSurfaceGenerationAlgorithmIdentificationSequence (0066,002D) sequence in the ReferencedSurfaceSequence (0066,002B) sequence in the SegmentSequence (0062,0002) sequence.

This identifies the principal type of algorithm employed. This will be automatically set if the user selects one of the predefined values offered for Meaning.

Scheme¶

name: algorithmScheme, type: String¶

Sets the value of the CodingSchemeDesignator (0008,0102) tag in the AlgorithmFamilyCodeSequence (0066,002F) sequence in the SegmentSurfaceGenerationAlgorithmIdentificationSequence (0066,002D) sequence in the ReferencedSurfaceSequence (0066,002B) sequence in the SegmentSequence (0062,0002) sequence.

This serves as a namespace for Code value. This will be automatically set if the user selects one of the predefined values offered for Meaning.

Meaning¶

name: algorithmMeaning, type: String¶

Sets the value of the CodeMeaning (0008,0104) tag in the AlgorithmFamilyCodeSequence (0066,002F) sequence in the SegmentSurfaceGenerationAlgorithmIdentificationSequence (0066,002D) sequence in the ReferencedSurfaceSequence (0066,002B) sequence in the SegmentSequence (0062,0002) sequence.

This is the user-readable description for Code. There is a list of predefined values. Selecting one of these will also set Code and Scheme.

Hidden Fields¶

referenceReferenceTree¶

name: referenceReferenceTree, type: Bool, default: FALSE¶: If checked, all SOPInstanceUIDs contained in the inRefTree will be referenced in the ReferencedSeriesSequence (0008,1115) tag.

segmentationPropertyMappingJSON¶

name: segmentationPropertyMappingJSON, type: String¶: Sets the JSON representation of a map that will map WEM patch labels to SegmentedPropertyCategoryCodeSequence (0062,0003) and SegmentedPropertyTypeCodeSequence (0062,000F) values. These will tell what is represented by these surfaces. The user interface for this will have selection lists for the category meaning and category type columns that will automatically fill the code and scheme columns for the user.
