SyncVector

MacroModule

genre	Vector
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
definition	helpers.def
see also	SyncFloat, FanInVector
keywords	synchronize, break, loop, cycle, epsilon

Purpose

The module SyncVector synchronizes the two vectors so that the data they represent is always consistent.

Windows

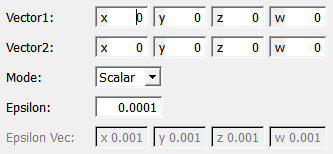

Default Panel

Parameter Fields

Field Index

Epsilon: Float

Epsilon Vec: Vector4

Mode: Enum

Vector1: Vector4

Vector2: Vector4

Visible Fields

Vector1

name: vector1, type: Vector4, default: 0 0 0 0

Sets and shows the first vector to synchronize.

Vector2

name: vector2, type: Vector4, default: 0 0 0 0

Sets and shows the second vector to synchronize.

Epsilon

name: epsilon, type: Float, default: 9.9999997e-05

Sets an epsilon value to measure the difference between the two vectors to synchronize.

If one vector differs in one component by more that this value, the other vector is updated.

Epsilon Vec

name: epsilonVec, type: Vector4, default: 0.001 0.001 0.001 0.001

Sets an epsilon vector value.

See Epsilon for more details.

Mode

name: mode, type: Enum, default: EpsilonScalar

Defines the mode to compare the two vectors to synchronize.

Values:

Title	Name
​Scalar	​EpsilonScalar
​Vector	​EpsilonVector
