SoWEMRendererEdges

InventorModule

genre	WEMRendering
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	SoWEM
definition	SoWEM.def
see also	SoWEMRenderer
keywords	visualization, surface

Purpose

The module SoWEMRendererEdges renders the edges of a WEM.

Usage

Attach this module to the extension input of a SoWEMRenderer module.

Windows

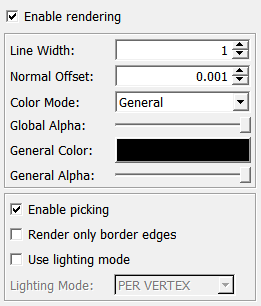

Default Panel

Input Fields

inLUT

name: inLUT, type: LUTFunction(MLBase)

Output Fields

self

name: self, type: SoNode

Parameter Fields

Field Index

Color Mode: Enum	Normal Offset: Float
Enable Picking: Bool	Override Selected PVL: String
Enable Rendering: Bool	Render Only Border Edges: Bool
General Alpha: Float	Use Lighting Mode: Bool
General Color: Color
Global Alpha: Float
Lighting Mode: Enum
Line Width: Float

Visible Fields

Enable Rendering

name: enableRendering, type: Bool, default: TRUE

If checked, the module renders edges.

Enable Picking

name: enablePicking, type: Bool, default: TRUE

If checked, the primitives rendered by this extensions are pickable.

Color Mode

name: colorMode, type: Enum, default: WEM_COLOR_GENERAL

Defines the color mode.

Values:

Title	Name
​General	​WEM_COLOR_GENERAL
​Node Colors	​WEM_COLOR_NODE_COLORS
​Lut Values	​WEM_COLOR_LUT_VALUES
​Lut Values Integer	​WEM_COLOR_LUT_VALUES_INTEGER

Global Alpha

name: globalAlpha, type: Float, default: 1, minimum: 0, maximum: 1

Sets a global alpha value that is multiplied with all existing alpha values.

General Color

name: generalColor, type: Color, default: 0 0 0

Sets a general color for the general color mode.

General Alpha

name: generalAlpha, type: Float, default: 1, minimum: 0, maximum: 1

Sets a general alpha value for the general color mode.

Use Lighting Mode

name: useLightingMode, type: Bool, default: FALSE

If checked, the Lighting Mode is applied.

Lighting Mode

name: lightingMode, type: Enum, default: SoShaderPipelineDefinition::LIGHTING_PER_VERTEX

Defines which lighting mode is applied. See SoShaderPipeline for more information.

Values:

Title	Name
​OFF	​SoShaderPipelineDefinition::LIGHTING_OFF
​PER FRAGMENT	​SoShaderPipelineDefinition::LIGHTING_PER_FRAGMENT
​PER VERTEX	​SoShaderPipelineDefinition::LIGHTING_PER_VERTEX

Override Selected PVL

name: overrideSelectedPVL, type: String

Sets the used PVL. The module supports per-node and per-edge PVLs.

Line Width

name: lineWidth, type: Float, default: 1, minimum: 1

Sets the line width in pixels.

Normal Offset

name: normalOffset, type: Float, default: 0.001

Sets an offset value of the position of the rendered edges in normal direction.

Render Only Border Edges

name: renderOnlyBorderEdges, type: Bool, default: FALSE

If checked, only border edges are rendered. Border edges have no or just one adjacent face.
